DEHN tankokannatin 16 mm pyöreälle langalle, ruostumaton teräs ruuvilla ja tulpalla 274260

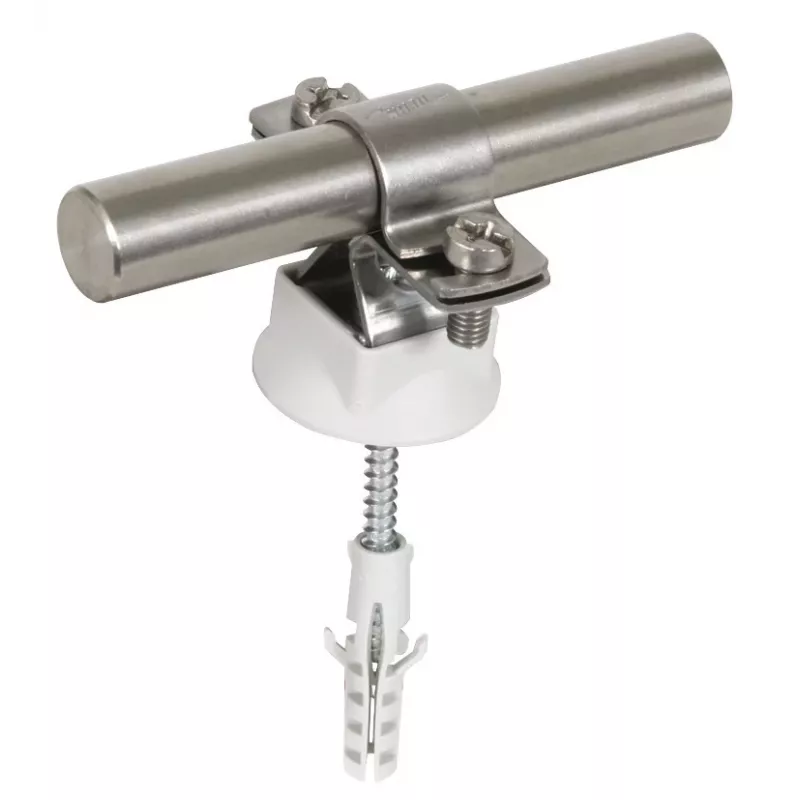

Rod holder for 16 mm round conductors, made of stainless steel for high corrosion resistance in lightning protection and earthing systems. The holder is surface-mounted and includes a hex head screw M8 x 80 mm and a plastic dowel Ø10 x 50 mm for secure wall mounting.

Advantages

Stainless steel construction provides high corrosion resistance and UV resistance, suitable for outdoor use. The included mounting hardware simplifies installation.

Suitable for

• Lightning protection systems
• Earthing systems
• Round conductors with 16 mm diameter

Key specifications

• Material: Stainless steel (NIRO), grade V2A (1.4301)
• Conductor type: Round conductor
• Conductor diameter: 16 mm
• Mounting type: Wall mount, surface-mounted
• Included screw: Hex head screw M8 x 80 mm
• Included dowel: Plastic dowel Ø10 x 50 mm
• Number of fastening points: 1
• Standard compliance: EN 62561-1

Recommendations

Ideal for securing 16 mm round conductors in lightning protection and earthing installations where corrosion resistance is required.
