DEHN tankopidike 275116 tuella ja peiteholkilla Ø16 mm pyöreälle langalle

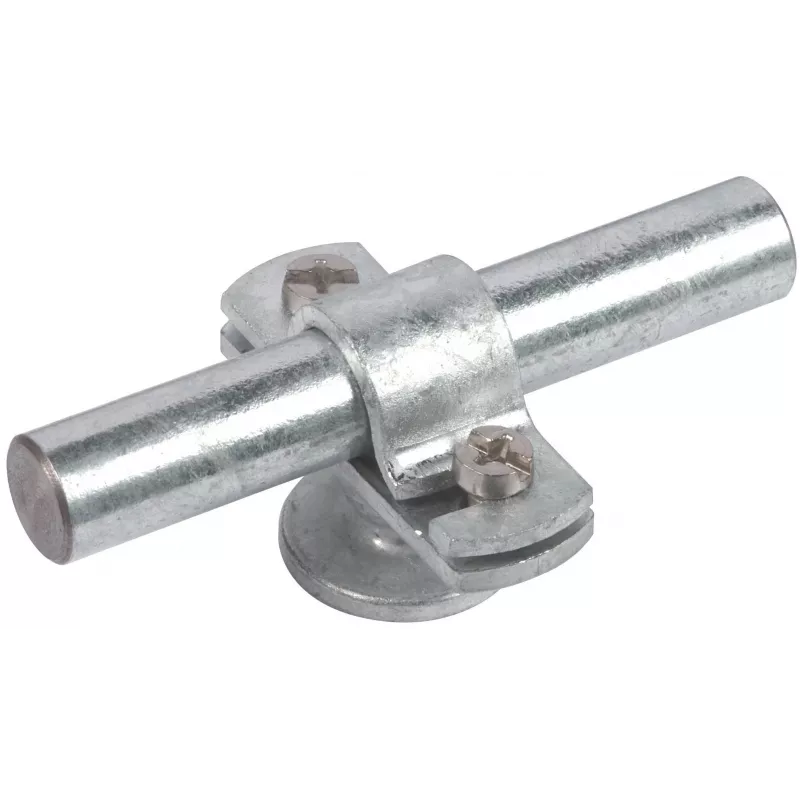

Rod holder for lightning protection systems, featuring an integrated overlay and cover collar for secure clamping and a clean finish on flat roofs or concrete surfaces. Made of stainless steel V2A (1.4301) for high corrosion resistance and outdoor durability.

Advantages

Integrated overlay ensures firm clamping of the conductor, while the cover collar provides sealing and an aesthetic appearance. Stainless steel construction withstands harsh weather and UV exposure.

Suitable for

• Mounting round conductors with a diameter of 16 mm
• Surface mounting on flat roofs and concrete
• Lightning protection systems compliant with DIN EN 62561-1

Key specifications

• Material: Stainless steel V2A (1.4301)
• Conductor diameter: Ø 16 mm
• Connection method: Screw clamp
• Base plate dimensions: 100 x 100 mm
• Number of conductors: 1

Recommendations

For a reliable and visually neat installation of lightning protection conductors in outdoor environments.
