DeLOCK 18271 asennuskehys 4 x 2,5 tuuman asemaa 3,5 tuuman paikkaan

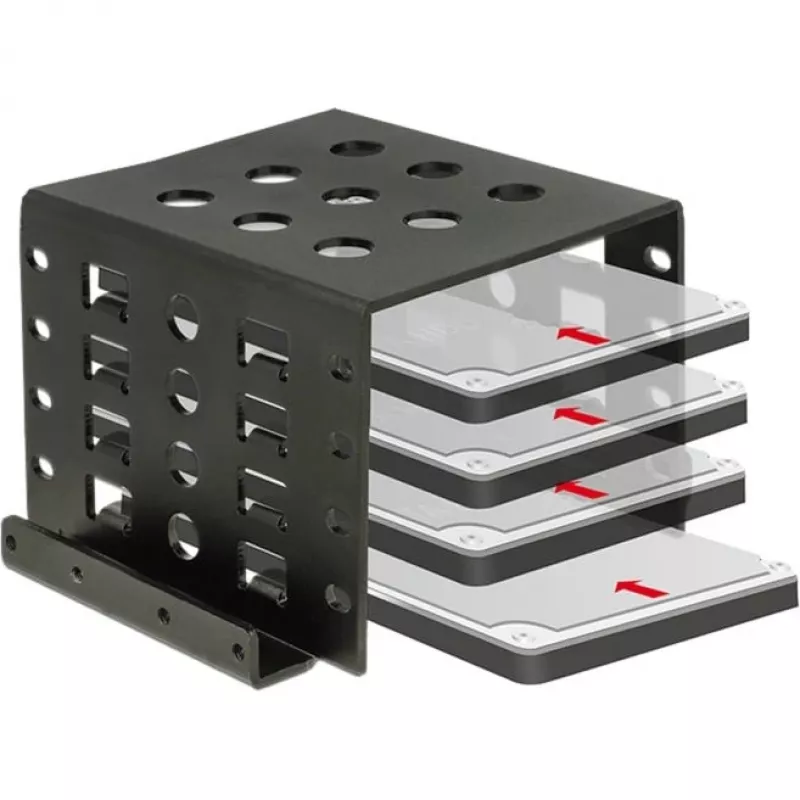

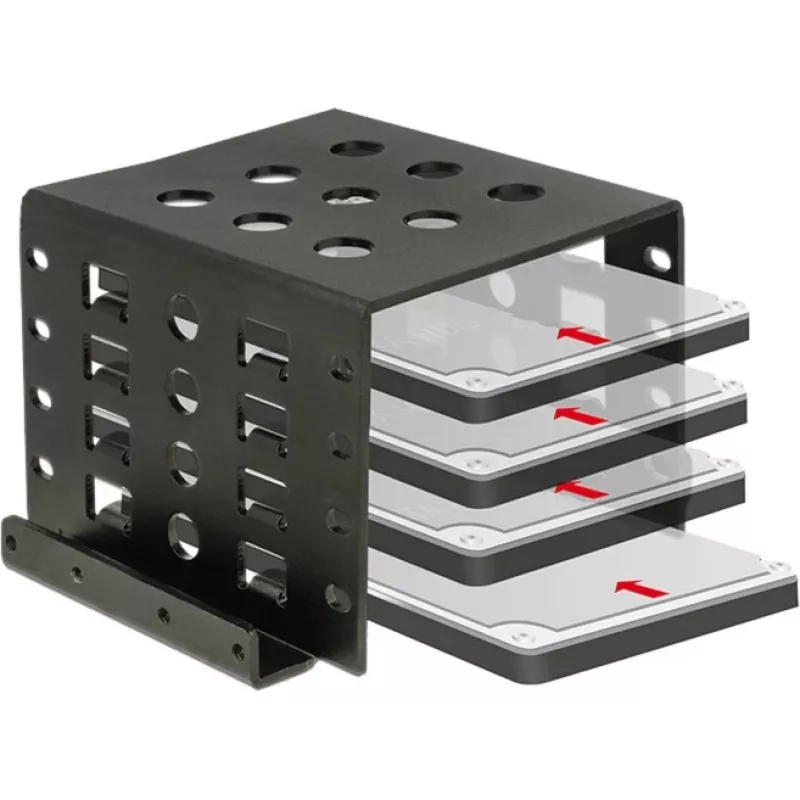

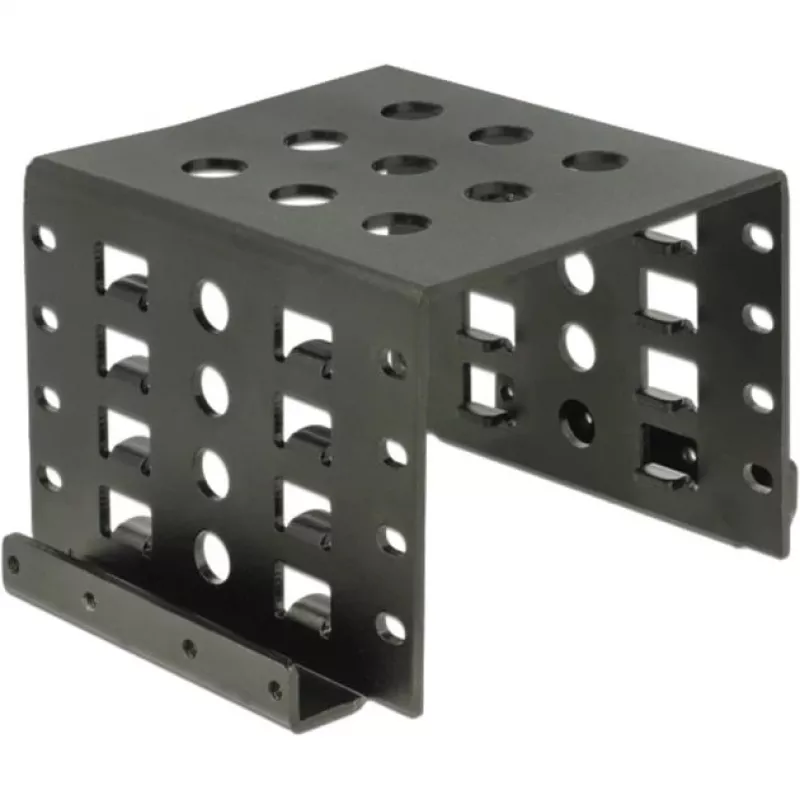

The DeLOCK 18271 installation frame allows mounting up to four 2.5″ drives (SSD or HDD) into a single 3.5″ drive bay of a PC. The frame is compatible with standard 3.5″ bays and is intended for systems where multiple 2.5″ drives need to be consolidated into one larger bay.

Advantages

The metal construction ensures durability and stable drive support while the black finish matches most PC interiors. The frame enables efficient use of available 3.5″ bay space by holding up to four 2.5″ drives, simplifying installation and cable routing for compact or small form factor builds.

Suitable for

• Installing multiple 2.5″ SSDs or HDDs into a single 3.5″ bay
• Small form factor PC builds that require additional storage
• Upgrading desktops to use compact 2.5″ drives while keeping existing 3.5″ bays

Key specifications

• Brand: DELOCK
• Model / MPN: 18271
• EAN: 4043619182718
• Compatible drives: up to four 2.5″ SSD or HDD
• Fits into: one 3.5″ drive bay
• Material: Metal
• Product colour: Black
• Outer dimensions (from product data): width 101.6 mm, depth 87 mm, height 65 mm

How to use

Mount each 2.5″ drive into the frame using the provided mounting points or screws, then slide the assembled frame into a free 3.5″ drive bay and secure it to the chassis with screws. Connect power and data cables from the drives to the motherboard and power supply as required. Ensure the drives are properly oriented and that cables do not obstruct airflow.

Recommendations

For reliable operation, use the frame in a case with adequate ventilation and secure all screws to avoid vibration. Verify compatibility of drive heights and mounting hole placement before installation.
