DeLOCK 2,5 tuuman muunnin U.3 SFF-8639 M.2 NVMe Key M 7 mm punainen

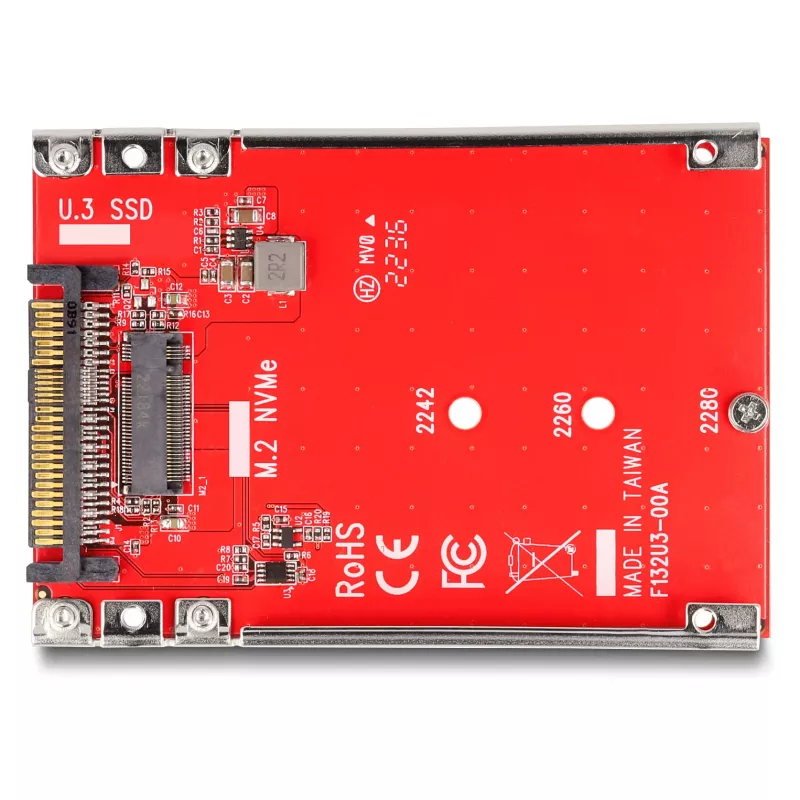

This Delock converter allows installation of an M.2 NVMe SSD (sizes 2280, 2260 and 2242) into a system via a U.3 (SFF-8639) internal interface. The 2.5" form-factor adapter has a low profile with a height of 7 mm and supports M.2 Key M NVMe modules, providing a simple way to connect M.2 drives to U.3 ports.

Advantages

The adapter provides compatibility between U.3/SFF-8639 host interfaces and M.2 NVMe Key M SSDs without requiring additional power modules. It has a compact 7 mm housing suitable for space-constrained enclosures and supports an output voltage of 3.3 V with a maximum current of 5 A. The unit is compatible with common operating systems including Windows 10, 11, 8.1 and Linux Kernel 5.15.

Suitable for

• Upgrading servers or workstations with U.3/SFF-8639 interfaces
• Installing M.2 NVMe drives in 2.5" bays
• Replacing or testing M.2 NVMe modules in systems that expose a U.3 port

Key specifications

• Supported M.2 sizes: 2280, 2260, 2242
• Interface (host): U.3 (SFF-8639)
• M.2 key: Key M (NVMe)
• Form factor: 2.5" adapter, height 7 mm
• Output voltage / current: 3.3 V / 5 A
• Colour: Red
• Operating system compatibility: Windows 10, 11, 8.1; Linux Kernel 5.15
• Brand / MPN / EAN: DELOCK / 64228 / 4043619642281

How to use

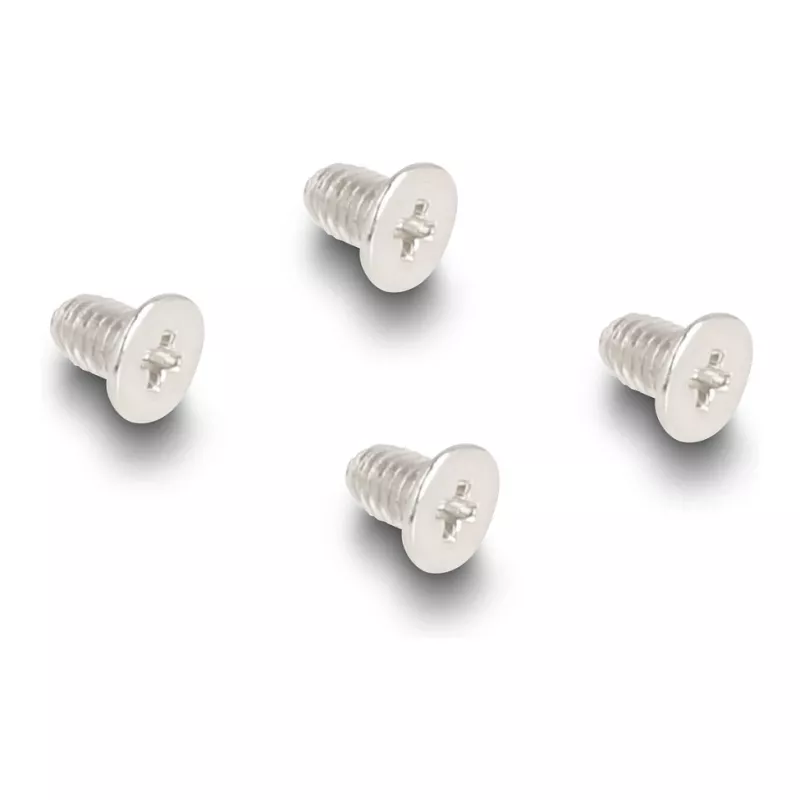

Install an M.2 NVMe Key M SSD (size 2280, 2260 or 2242) into the adapter socket and secure it according to the module’s mounting position. Insert the converter into the system’s U.3 (SFF-8639) internal slot or connect it to a U.3 backplane. Ensure the device is properly seated, then power on the system and verify that the drive is detected by the operating system. Follow standard OS procedures to initialize, partition and format the new drive if necessary.

Recommendations

The adapter is intended for internal use in systems with U.3/SFF-8639 connectors. Use appropriate anti-static precautions when handling M.2 modules and ensure firmware and OS drivers support NVMe devices for optimal performance.
