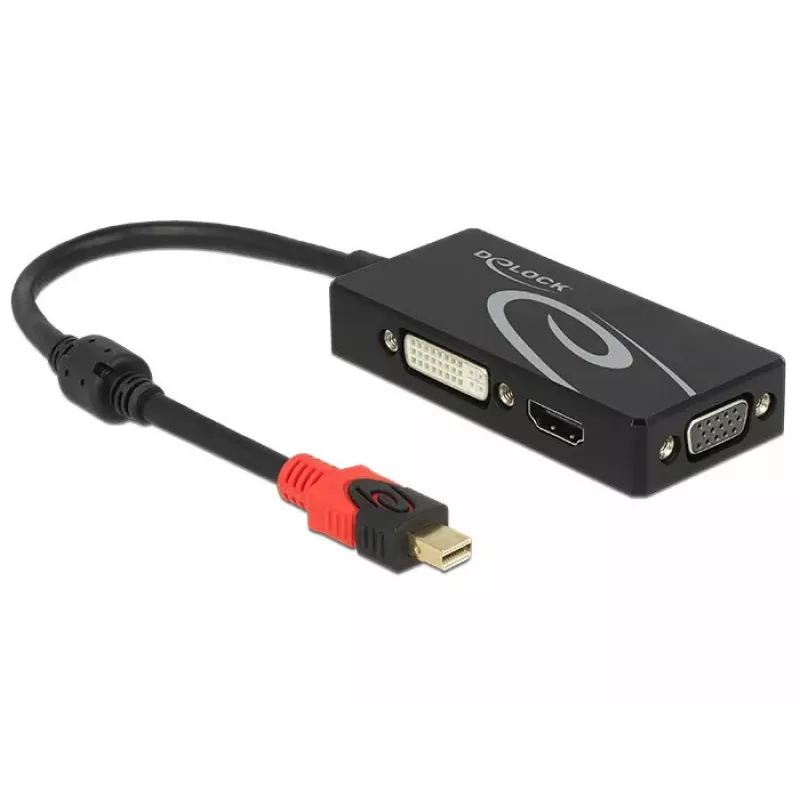

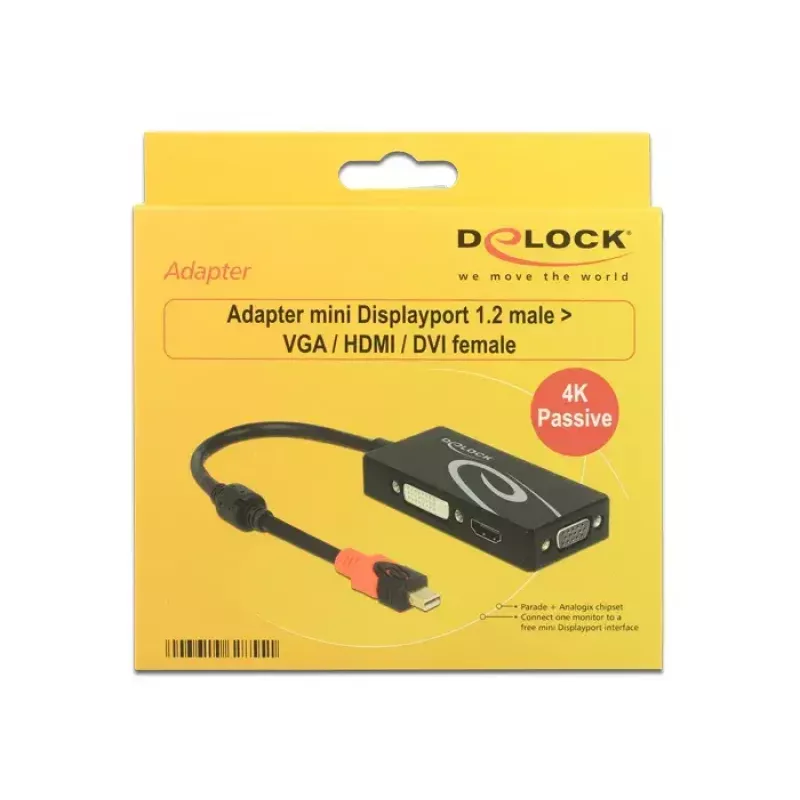

Delock 62855 Mini DisplayPort 1.2 - VGA / HDMI / DVI -sovitin, 4K, passiivinen, musta

The Delock 62855 is a mini DisplayPort adapter that adds a VGA, HDMI or DVI interface to a system, allowing connection of devices such as televisions, projectors and monitors. Only one monitor can be operated on the adapter at a time.

Key features

• Connections: 1 x mini DisplayPort 20 pin male > 1 x VGA 15 pin female, 1 x HDMI-A 19 pin female, 1 x DVI-D (Single Link) 24+1 female
• Chipset: 2 x Parade PS8339 (HDMI + DVI), 1 x Analogix ANX9833 (VGA)
• DisplayPort 1.2 and High Speed HDMI with Ethernet (HEC) specification
• DVI-D (Single Link) 24+1 connector with nuts (VGA not wired)
• Passive converter (level shifter), only suitable for graphics cards with DP++ output
• Only 1 monitor can be used on the adapter
• Audio signal is transmitted only with HDMI
• OS independent, no driver installation required

Specifications

• Brand: Delock
• MPN: 62855
• Product colour: Black
• Maximum resolution: 3840 x 2160 pixels
• Cable length: 0.2 m
• HDMI / DVI specification: resolution up to 3840 x 2160 @ 30 Hz (depending on the system and connected hardware)
• Supports 3D displays (1080p @ 60 Hz)
• VGA specification: resolution up to WUXGA 1920 x 1200 @ 60 Hz (depending on the system and connected hardware)
• 1 x ferrite core
• Cable length without connectors: approx. 20 cm
