DeLOCK 90911 Keystone-moduuli

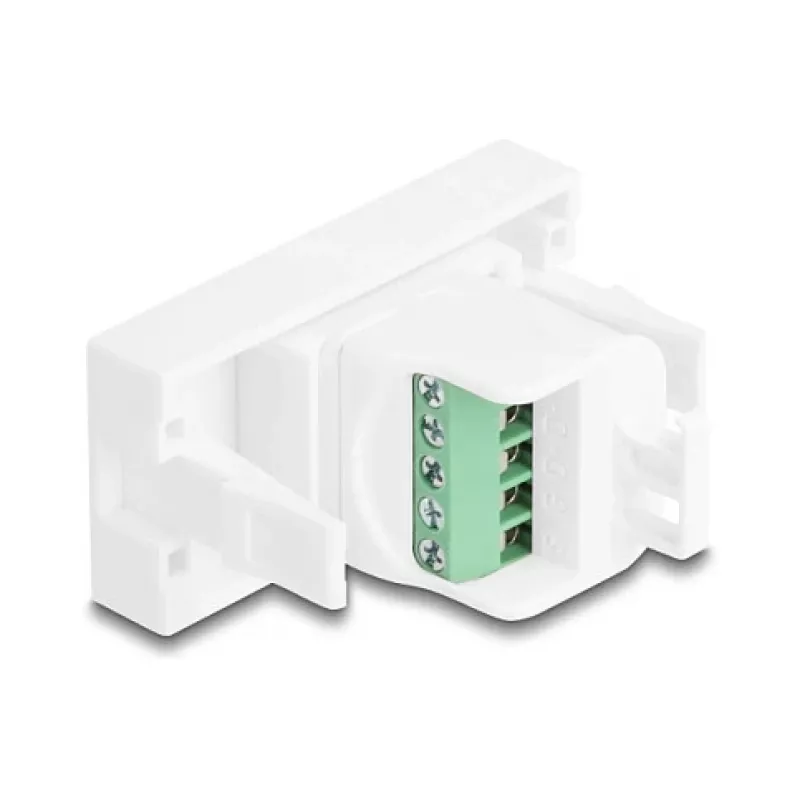

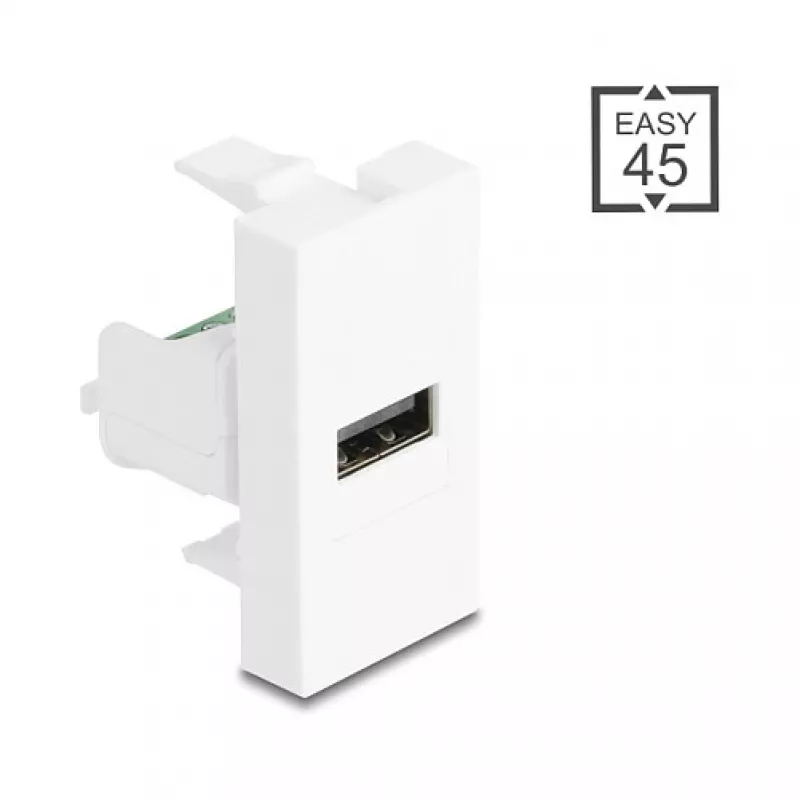

The DeLOCK 90911 keystone module is a flat Easy 45 module that provides a USB A female port with a 5-pin terminal block connection. It fits into the Delock Easy 45 modular system with a snap-in mechanism that secures the module in place and allows easy removal when needed. The module is white and intended for mounting in standardized holders or cable ducts to connect peripheral devices within electrical and network installations.

Advantages

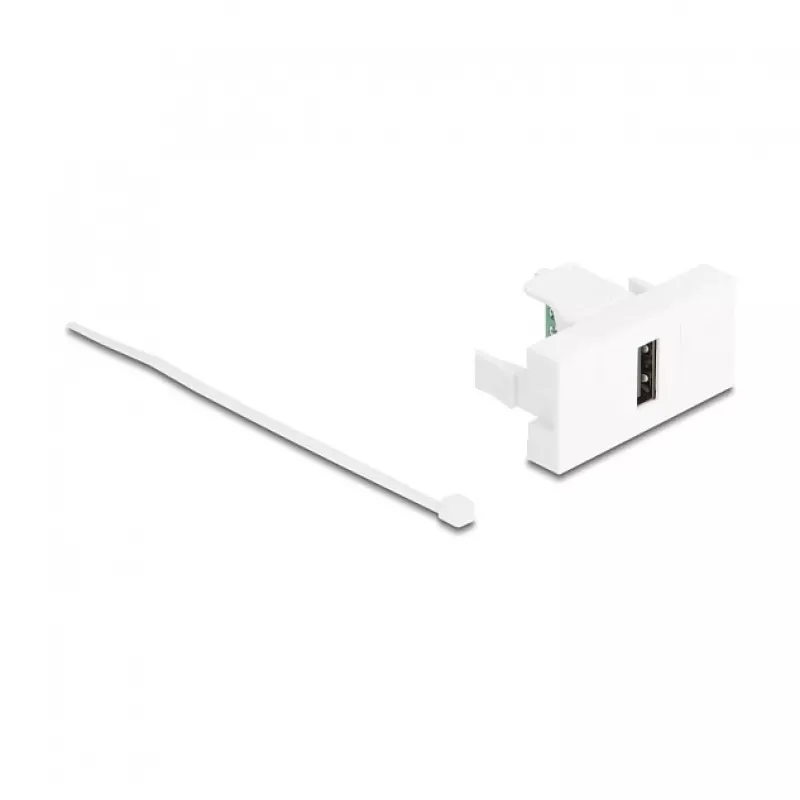

The flat design saves space in module holders and cable ducts while the USB A female connector offers a common interface for USB 2.0 devices. The 5-pin terminal block enables straightforward wiring into installations without using proprietary plugs, and the snap-in system ensures fast installation and removal. The module is supplied as a single unit in a polybag.

Suitable for

When it may not be suitable

This module is designed for USB 2.0 Type-A connections and does not provide USB 3.x performance or Type-C connectivity. It is not a standalone hub or power injector; use cases requiring higher data rates, power delivery over USB-C, or multiple downstream ports may require a different product.

Key specifications

How to use

Insert the module into a compatible Easy 45 module holder or cable duct until the snap-in mechanism engages. Wire the USB connection using the 5-pin terminal block according to the installation wiring diagram or device pinout. Mount the holder or panel in the installation and connect external USB devices to the USB A female port as required. To remove the module, disengage the snap-in clip and pull the module out carefully.

What to consider before purchase

Recommendations

Use the module within standardized Easy 45 installations and follow proper wiring practices when connecting the 5-pin terminal block. If you require faster data rates, USB-C connectivity, or power delivery, consider selecting a module or device designed for those functions.
