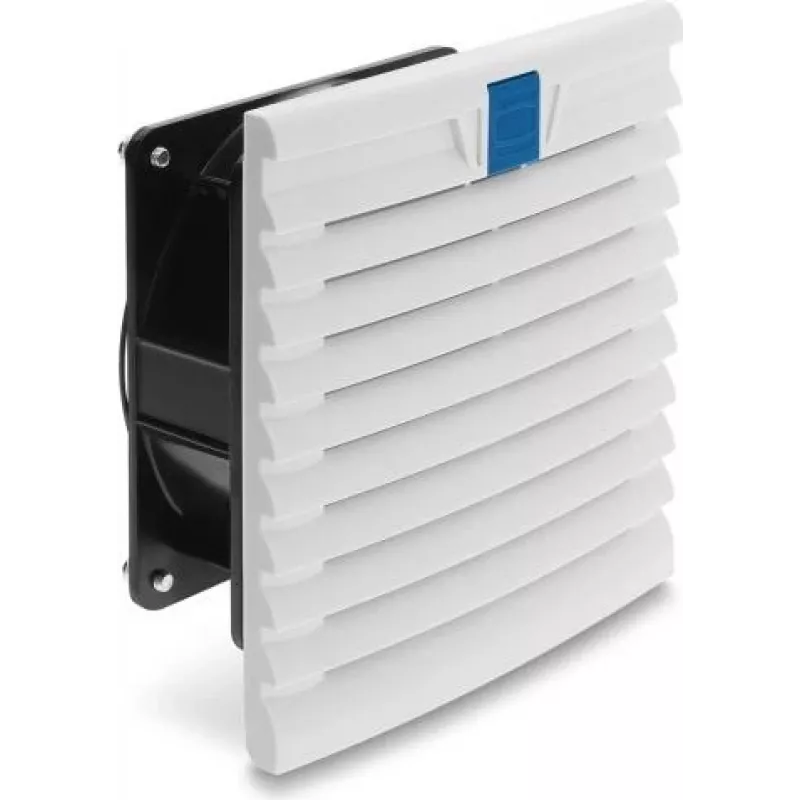

Delock aksiaalituuletin 230 V AC suodattimella 148 x 148 x 68 mm

Overheating in enclosures and control cabinets can lead to premature component failure and costly downtime. This Delock axial fan with integrated filter provides a reliable cooling solution by drawing in fresh, filtered air while expelling hot air, maintaining optimal operating temperatures for sensitive electronics.

Who is it for

This fan is ideal for electrical engineers, panel builders, and maintenance technicians who need to cool industrial enclosures, server racks, or automation systems. It is also suitable for DIY enthusiasts working on custom electronics projects that require active ventilation with dust protection.

Main features

• High airflow of 160 m³/h for efficient heat dissipation
• Integrated G3 filter removes dust and particles, protecting internal components
• Durable die-cast aluminium frame with ball bearing for long life (50,000 hours at 40 °C)
• IP54 protection class with filter, suitable for dusty environments
• Easy screw mounting and 30 cm lead wires for simple installation
• Operates on 230 V AC, no external power supply needed

Specifications

• Fan type: Axial
• Operating voltage: 230 V AC
• Frequency: 50/60 Hz
• Rated current: 0.09 A
• Power consumption: 14 W
• Airflow: 160 m³/h
• Noise level: 45 dB(A)
• Bearing type: Ball bearing
• Frame material: Die-cast aluminium
• Impeller material: Thermoplastic PBT (UL94V-0)
• Filter material: Synthetic fiber (non-woven)
• Filter class: G3 (according to EN 779)
• Protection class: IP54 (with filter)
• Operating temperature: -10 °C to 70 °C
• Life expectancy: 50,000 hours at 40 °C
• Connection type: 2 lead wires (approx. 30 cm)
• Mounting type: Screw mounting
• Overall dimensions: 148 x 148 x 68 mm
• Filter housing material: ABS plastic (UL94V-0)
• Colour: Black (filter housing), metallic (fan frame)

Tips

For optimal performance, clean or replace the filter regularly to maintain airflow and protection. Ensure the fan is mounted in the correct orientation for intake or exhaust as needed.
