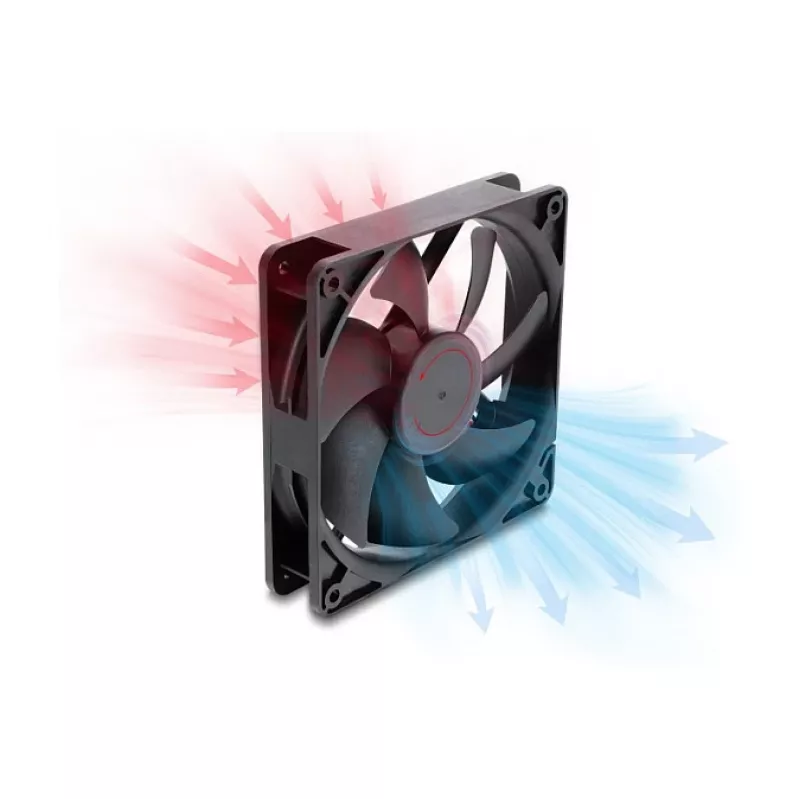

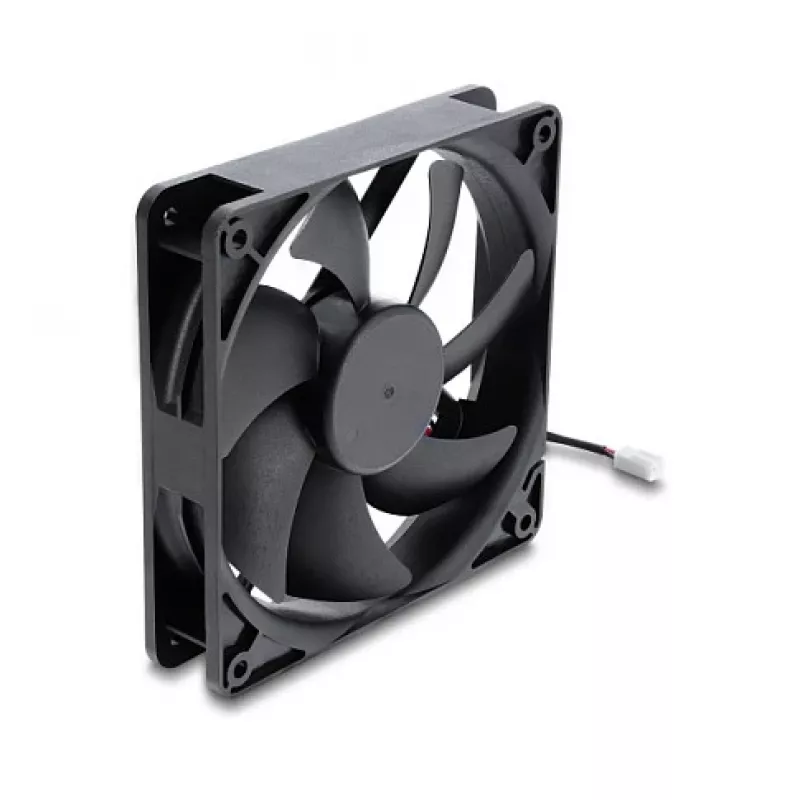

Delock aksiaalituuletin 48 V DC 120 x 120 x 25 mm 2-pin-liitin musta

Heat buildup can shorten the life of electronics and cause intermittent failures. This Delock axial fan provides a reliable active cooling solution for a variety of applications, from DIY enclosures to industrial equipment. With its standard 120 mm frame and 48 V DC operation, it replaces worn-out fans or adds additional airflow where needed.

Who is it for

Ideal for technicians, makers, and engineers who need a dependable cooling fan for 48 V systems. Whether you are upgrading an existing device or building a custom ventilation solution, this fan fits standard 120 mm mounting holes and uses a simple 2-pin connector.

Main features

• High airflow of 170 m³/h (approx. 100 CFM) for effective heat dissipation
• Sleeve bearing design ensures quiet and reliable operation (40 dB(A))
• Low power consumption of 7.2 W for energy efficiency
• Standard 120 x 120 x 25 mm frame fits most common fan mounts
• 48 V DC input for industrial and telecom applications
• 2-pin connector for straightforward wiring
• Black PBT frame and impeller offer durability and long service life

Specifications

• Fan type: Axial fan

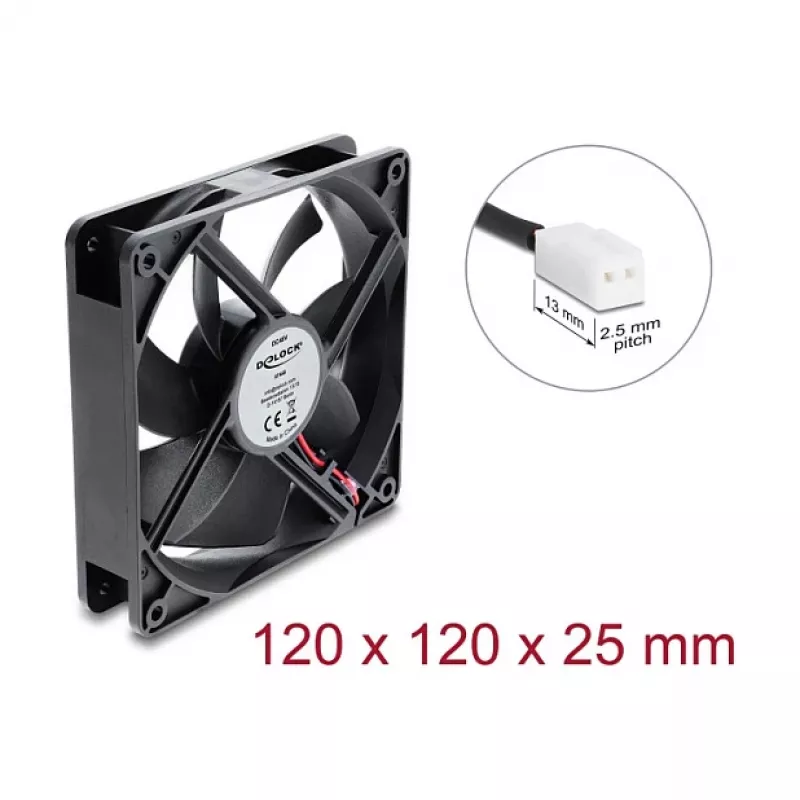

• Dimensions (W x H x D): 120 x 120 x 25 mm
• Operating voltage: 48 V DC
• Rated current: 0.15 A
• Power consumption: 7.2 W
• Airflow: 170 m³/h
• Static pressure: 3.5 mmH2O
• Fan speed: 2500 RPM
• Noise level: 40 dB(A)
• Bearing type: Sleeve bearing
• Connector: 2-pin
• Cable length: 300 mm
• Frame material: PBT
• Impeller material: PBT
• Operating temperature: -10 °C to 70 °C
• Lifespan (MTBF): 30,000 hours
• Colour: Black

Tips

Before installation, verify that your power supply delivers a nominal 48 V DC and sufficient current (at least 0.15 A). The fan can be mounted with standard screws through the four mounting holes. For best airflow, position it with the label side facing outward and ensure unobstructed intake and exhaust. Regularly remove dust to maintain cooling performance and prolong bearing life.
