DeLOCK D-Sub 15-pin liitin riviliittimeen DIN-kiskolle 58 mm x 61 mm x 30 mm

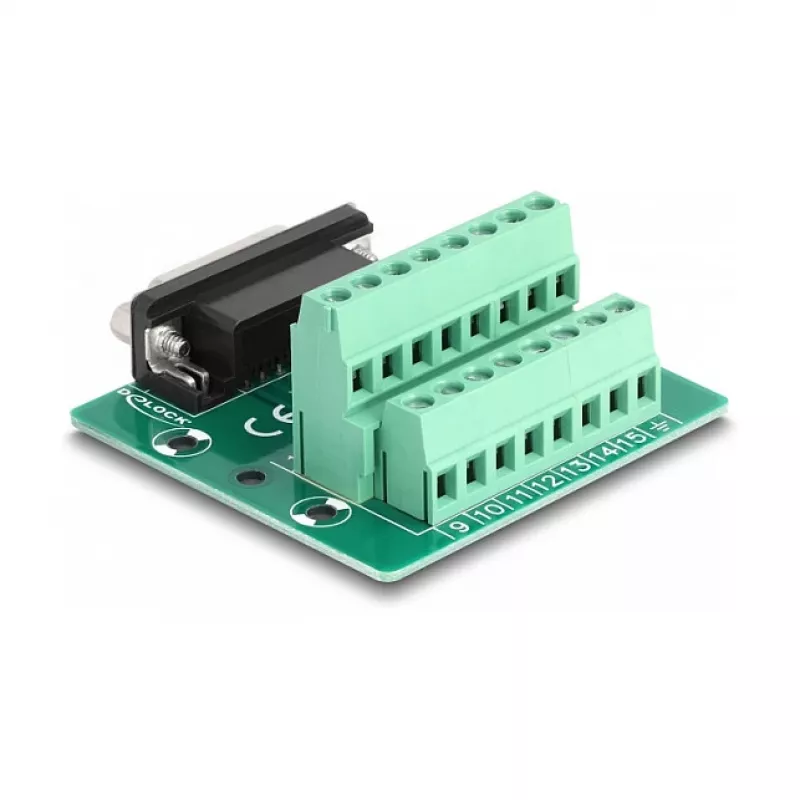

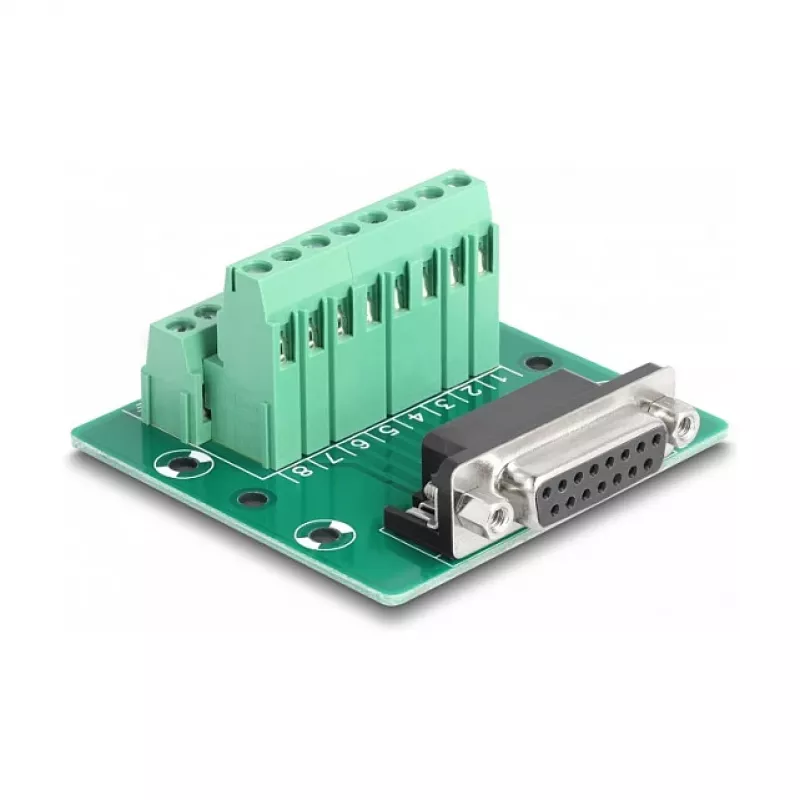

The DeLOCK D-Sub 15 pin female to Terminal Block is an adapter for converting a 15-pin female D-Sub connector into a terminal block suitable for DIN rail systems. It has a compact footprint of 58 mm × 61 mm × 30 mm and a green housing. The adapter accepts wires with stripped ends and provides a straightforward connection method for electronic and control equipment in industrial or commercial installations.

Advantages

The adapter enables easy connection of stripped wires to a D-Sub 15 female interface and is designed for DIN rail mounting. Its compact dimensions help save panel space, and the included mounting clips support attachment to 15 mm or 35 mm DIN rails. The green colour helps with visual identification in control cabinets.

Suitable for

• Connecting sensors, actuators, or controllers to a D-Sub 15 interface
• Terminal wiring in industrial control cabinets
• Prototyping or small-series production where DIN rail mounting is required

Key specifications

• Connector: D-Sub 15 pin female to terminal block
• Dimensions: 58 mm (W) × 61 mm (D) × 30 mm (H)

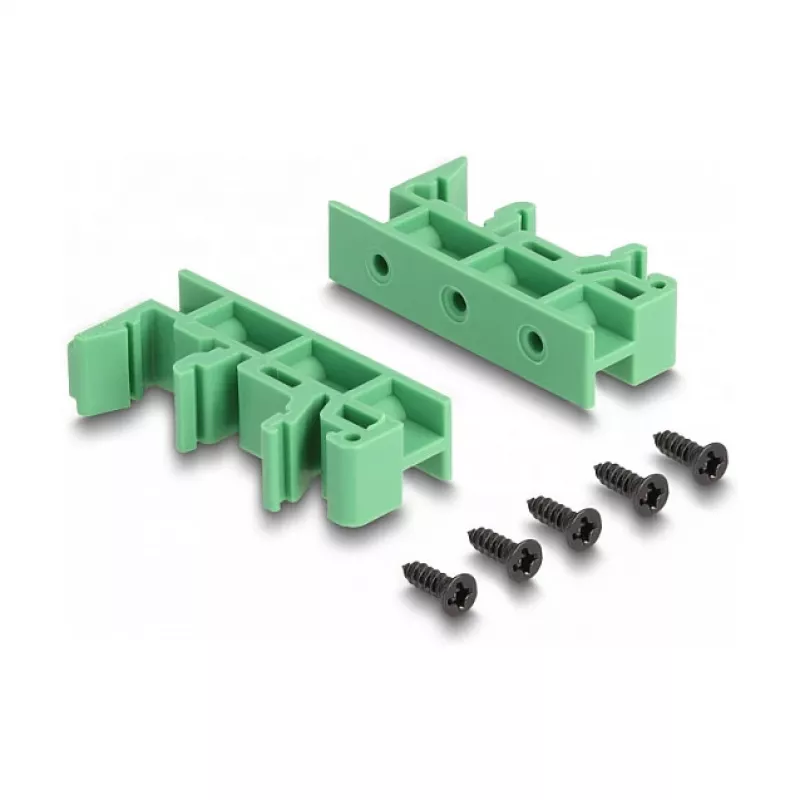

• Mounting: DIN rail (clips for 15 mm and 35 mm included)
• Colour: Green
• Brand: DELOCK, MPN: 66910, EAN: 4043619669103

How to use

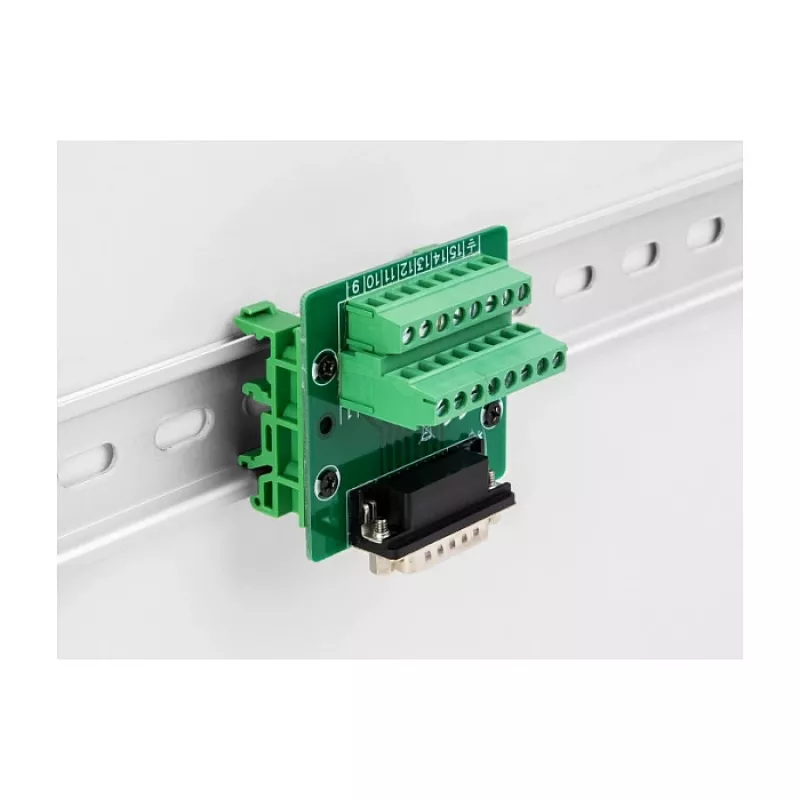

Mount the adapter on a 15 mm or 35 mm DIN rail using the supplied clips. Strip the wire ends to the appropriate length, insert them into the terminal block contacts and secure each wire according to the terminal tightening method provided on the unit. Plug a compatible D-Sub 15 male connector into the female D-Sub on the adapter to complete the connection.

Recommendations

Verify wire cross-section and tightening torque values recommended for the terminal block in your installation guidelines. Ensure power is disconnected before wiring and check connections after installation to confirm secure contact.
