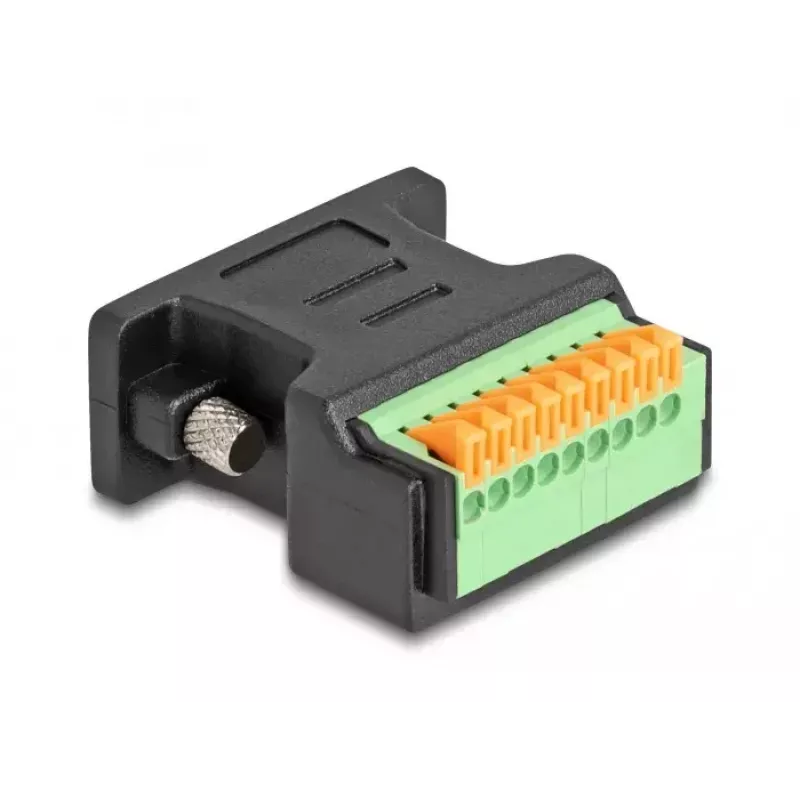

DeLOCK D-Sub 9 naaras liitinrimasovittimeen painonapilla musta

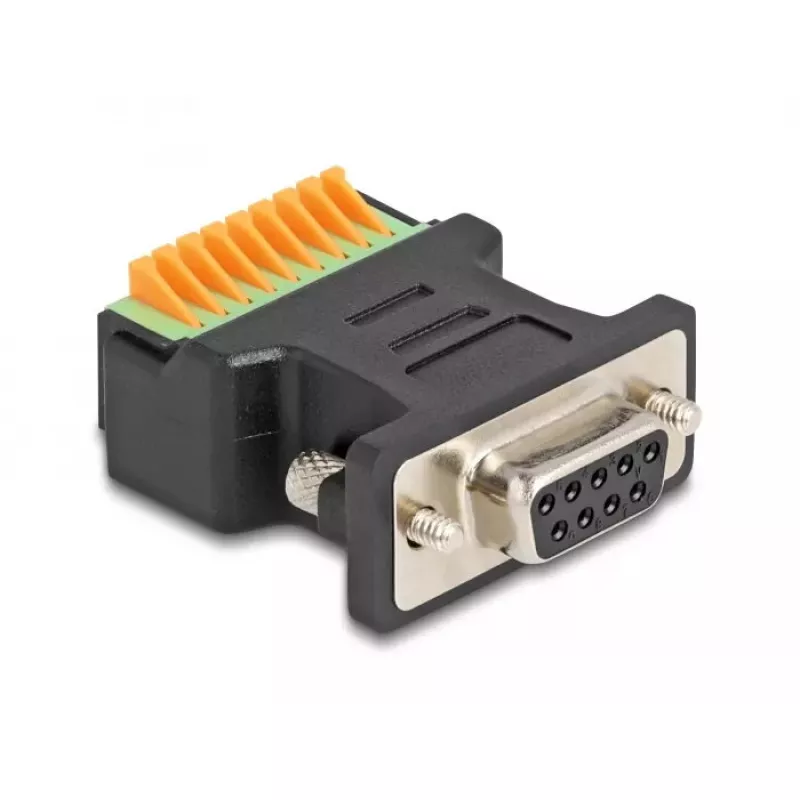

The DeLOCK D-Sub 9 Female to Terminal Block Adapter with Push-button (black) provides a compact way to connect stranded wires with stripped ends to a D-Sub 9 female interface. The adapter includes a 9‑pin terminal block and gold‑plated contacts for corrosion resistance and reliable electrical contact. Its push‑button mechanism enables tool‑free insertion and release of conductors, suitable for testing and industrial wiring tasks.

Advantages

The push‑button design allows quick, tool‑free connection and disconnection of stranded wires. Gold‑plated contacts improve conductivity and reduce oxidation. The compact D‑Sub 9 female format preserves compatibility with standard serial and control interfaces while offering flexible wiring via the terminal block.

Suitable for

• Connecting sensors, controllers or serial devices to custom wiring
• Temporary test and measurement setups
• Industrial control panels and small automation projects

Key specifications

• Connector 1: D‑Sub 9 pin (female)
• Connector 2: 9 pin terminal block with push‑button clamping
• Contacts: gold‑plated
• Product colour: Black

How to use

Strip the insulation from the end of each stranded conductor to the recommended length, press the push‑button for the corresponding terminal, insert the conductor fully into the terminal hole and release the button to clamp the wire. Align and connect the adapter to a D‑Sub 9 male connector on the device. For removal, press the push‑button and withdraw the wire.

Recommendations

Use conductors with appropriate cross‑section for the terminal block and ensure stripped lengths do not expose excess bare wire beyond the terminal. Avoid using the adapter in environments with excessive moisture or corrosive atmospheres unless additional protection is provided.
