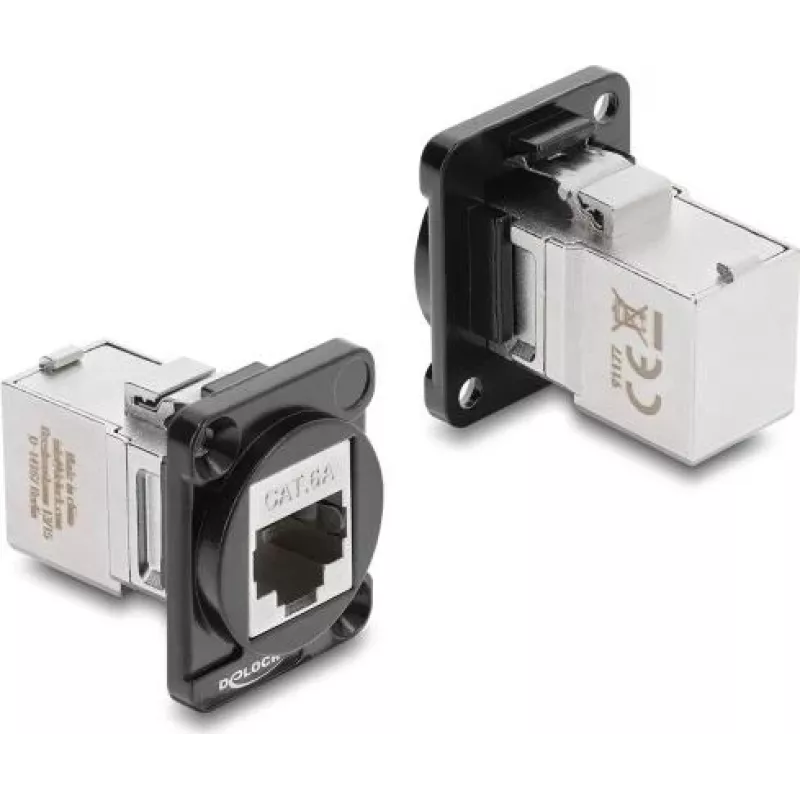

Delock D-Type -moduuli RJ45 naaras-naaras 90° kulma Cat.6A musta / hopea

In tight patch panels and wall outlets, a straight RJ45 coupler often forces awkward cable bends that strain connectors and degrade signal quality. The Delock D-Type Module solves this by providing a 90° angled RJ45 female-to-female connection in a compact, panel-mountable housing. It lets you route network cables neatly along walls or inside enclosures without sharp kinks, preserving Cat.6A performance up to 10 Gigabit Ethernet.

Who is it for

This module is ideal for network installers, IT technicians, and facility managers who need reliable, high-speed Ethernet connections in confined spaces. It suits structured cabling in offices, industrial control cabinets, and data centres where D-Type panel cut-outs are standard. If you are building or maintaining a Cat.6A network and require a robust, shielded coupler that fits flush into a panel, this is the right choice.

Main features

• 90° angled design: rear connector exits at a right angle, saving space and reducing cable stress.
• Cat.6A performance: supports 10GBASE-T up to 500 MHz bandwidth for demanding applications.
• Shielded metal housing: zinc die-cast body with black/silver finish provides EMI protection and durability.
• Gold-plated contacts: 8P8C connectors ensure low contact resistance and long life (>750 mating cycles).
• D-Type panel mount: fits standard 24 mm cut-outs with flange dimensions 31 x 26 mm.
• PoE ready: passes IEEE 802.3af/at power for PoE and PoE+ devices.

Specifications

• Connector type: RJ45 female to RJ45 female
• Network standard: Cat.6A (Category 6A)
• Shielding: Shielded (STP/FTP compatible)
• Angle: 90° angled (rear connector)
• Mounting type: D-Type panel mount
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Contact plating: Gold-plated contacts
• Housing material: Metal (zinc die-cast)
• Colour: Black / Silver
• Standard compliance: TIA/EIA-568B.2-10, ISO/IEC 11801
• PoE support: PoE, PoE+ (IEEE 802.3af/at)
• Operating temperature: -20 °C to 70 °C
• Mating cycles: > 750
• Installation diameter: 24 mm (D-Type cut-out)
• Flange dimensions: 31 x 26 mm
• Number of contacts: 8P8C

Tips

For best performance, use shielded Cat.6A cables and ensure proper grounding of the metal housing. The 90° angle is ideal for shallow spaces, but verify clearance behind the panel before installation. This coupler is not a keystone module; it requires a D-Type cut-out.
