DeLOCK D-Type-moduuli USB 5 Gbps Type-A naaras-naaras 90° kulma

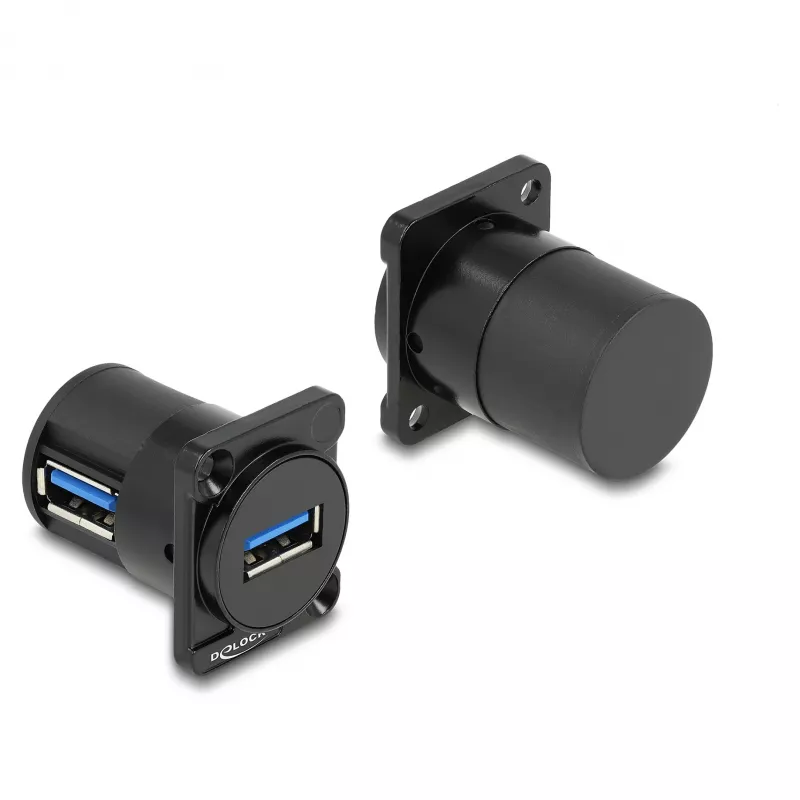

The DeLOCK D-Type Module USB 5 Gbps Type-A female to female 90° angled is a compact panel-mount module designed for installation in a D-Type opening. It provides a female-to-female USB Type-A connection with support for up to 5 Gbps data transfer and a 90° angled mating orientation. The module is supplied in a polybag and has a black finish.

Advantages

The angled USB Type-A female-to-female connector saves space in confined installations and allows for tidy cable routing. Its compact dimensions (31 mm width, 34 mm depth, 26 mm height) make it suitable for integration into panels or housings with D-Type openings. The module supports USB data rates up to 5 Gbps and uses standard USB A connectors for broad compatibility.

Suitable for

Key specifications

How to use

Insert the module into a compatible D-Type opening in the panel or housing and secure it according to the enclosure’s mounting method. Connect USB Type-A cables or devices to each female socket; ensure connectors are fully seated. The 90° angle allows cables to be routed parallel to the panel surface to reduce strain and save space.

Recommendations

Use USB 3.0/3.1 compatible cables to achieve up to 5 Gbps transfer rates. Avoid forcing non-compatible connectors and ensure the panel cutout matches a D-Type form factor for correct fit and secure installation.
