Delock Dual Panel Mount USB 3.2 Gen 1 Type-A liitin + USB 3.2 Gen 2 Type-C liitin 100 W Power Delivery, hopea

Deliver up to 100 W of Power Delivery and 10 Gbps data through a single panel cut-out with this dual-port USB panel mount from Delock.

Overview

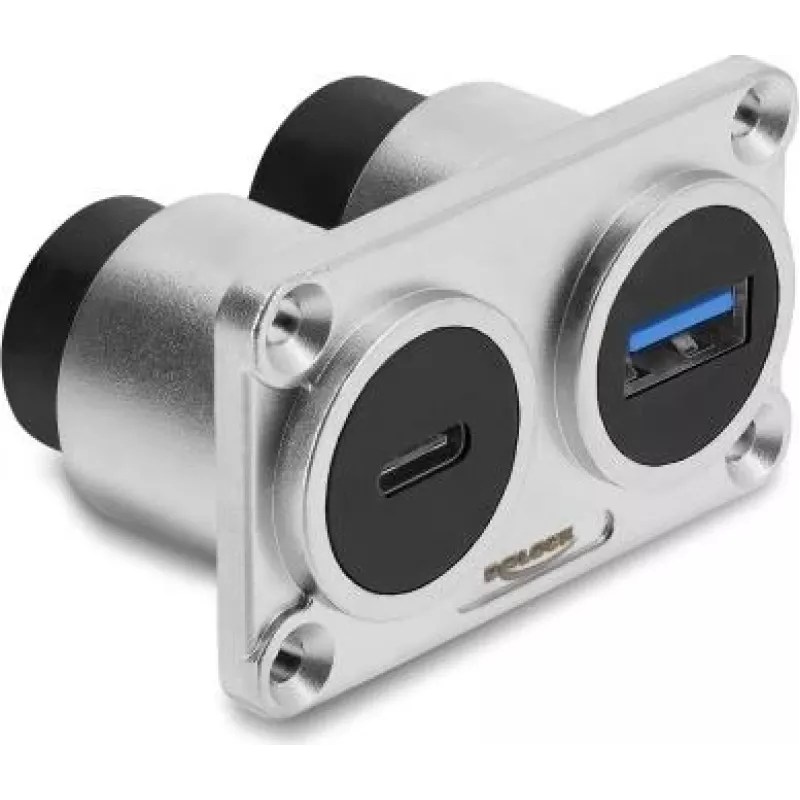

The Delock 91169 combines a USB Type-A female port and a USB Type-C female port in one rugged metal housing. The USB-A port supports USB 3.2 Gen 1 speeds up to 5 Gbps, while the USB-C port supports USB 3.2 Gen 2 speeds up to 10 Gbps and Power Delivery up to 100 W. This makes it ideal for charging high-power devices and transferring data at high speed through a single panel cut-out.

What stands out

• Dual-port design saves space and simplifies panel wiring
• USB-C port supports Power Delivery up to 100 W for fast charging of laptops and other high-power devices
• High-speed data transfer: 10 Gbps on USB-C and 5 Gbps on USB-A
• Robust metal housing with silver finish for durability and professional appearance
• Standard 22 x 22 mm mounting hole with M3 screw compatibility for easy integration

Technical details

• Connectors: 1 x USB Type-A female, 1 x USB Type-C female
• USB standards: USB-A: USB 3.2 Gen 1 (5 Gbps); USB-C: USB 3.2 Gen 2 (10 Gbps)
• Power Delivery: up to 100 W (USB-C)
• Backwards compatibility: USB-A: USB 2.0, USB 1.1; USB-C: USB 3.1, USB 3.0, USB 2.0
• Mounting: panel mount, hole dimensions 22 x 22 mm, M3 screws
• Housing material: metal, colour silver
• Operating temperature: -20 °C to 85 °C
• Storage temperature: -20 °C to 85 °C
• Relative humidity: 5 - 95 % (non-condensing)

Our verdict

A robust dual-port panel-mount solution that delivers high-speed data and high-power charging in a compact, professional form factor.
