DeLOCK HDMTD yksittäinen Powerpin-liitin kulmikas PCB:lle 90° liitäntä

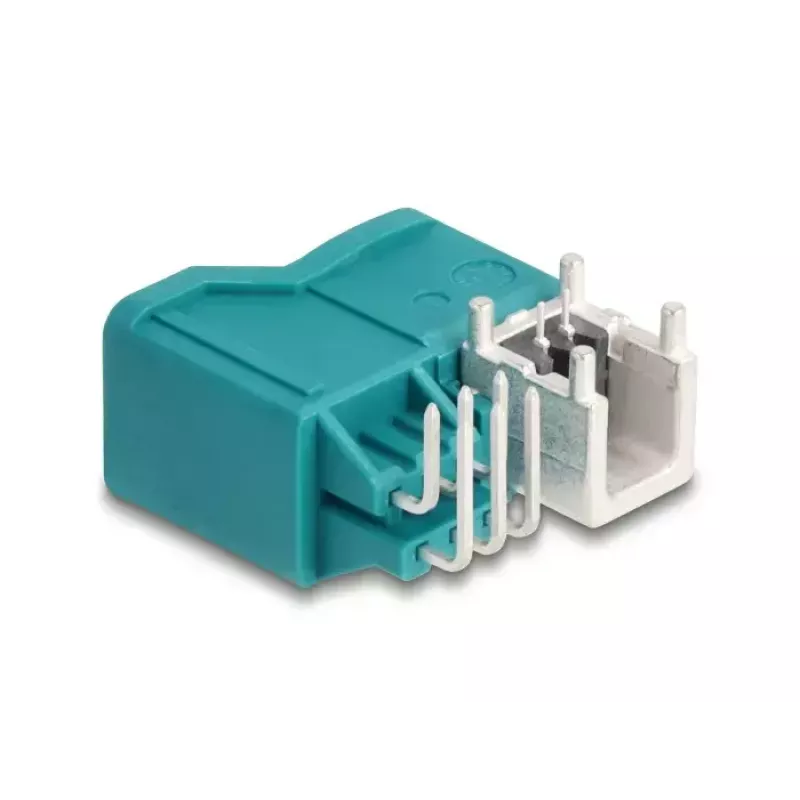

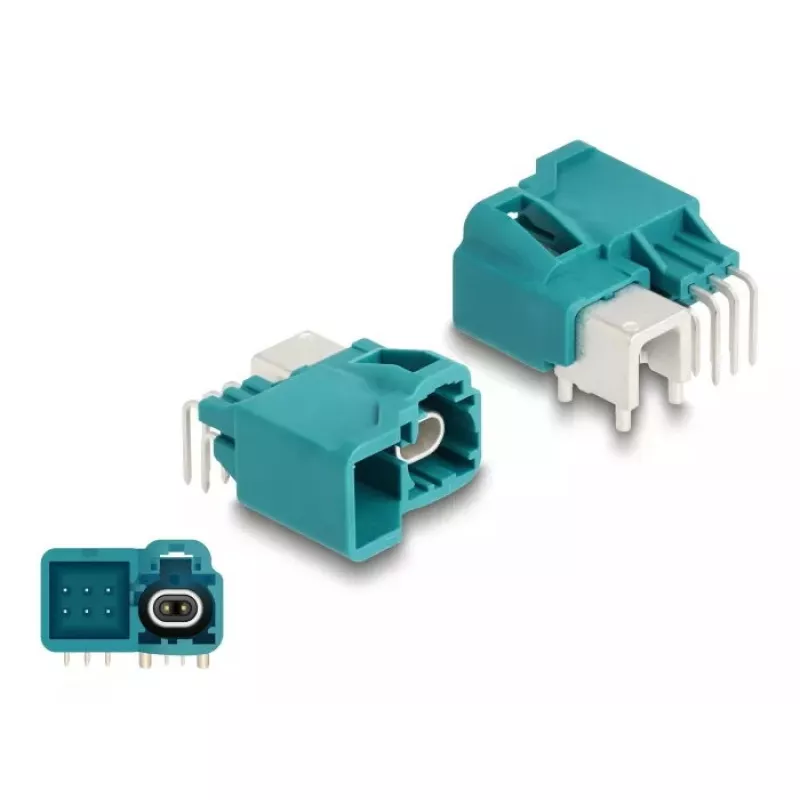

The DeLOCK HDMTD single Powerpin plug angled for PCB 90° Female is a compact connector designed for mounting on printed circuit boards. It provides a female HDMTD interface with an integrated power supply via six dedicated power pins, allowing simultaneous transmission of data and power to connected devices. The connector measures 21 mm in width, 26 mm in depth and 13 mm in height and is supplied as a single unit in a polybag. Its aqua colour housing and right-angle design make it suitable for tight PCB layouts and electronic equipment in vehicles.

Advantages

This HDMTD connector combines data transfer and a separate power feed through +6 power pins, reducing the need for additional wiring. Its 90° orientation saves space on the PCB and facilitates routing. The compact dimensions and single-piece packaging simplify inventory and installation for applications that require both signal and power connectivity.

Suitable for

Key specifications

How to use

Solder the connector to the PCB following the board layout and pad pattern for the DeLOCK HDMTD female 90° powerpin plug. Ensure correct orientation so the power pins align with the designated power traces and the data pins match the device signal lines. After soldering, inspect solder joints for continuity and absence of bridges. Connect the mating HDMTD male cable or component, verifying power and data voltages before full operation.

Recommendations

Use appropriate PCB footprint and soldering profiles recommended for HDMTD connectors. Verify power pin current ratings in the system design and provide protection (fuses or current limiting) when integrating into vehicle electronics. For reliable connections, follow ESD precautions and consult DELOCK technical documentation for mechanical and electrical specifics.
