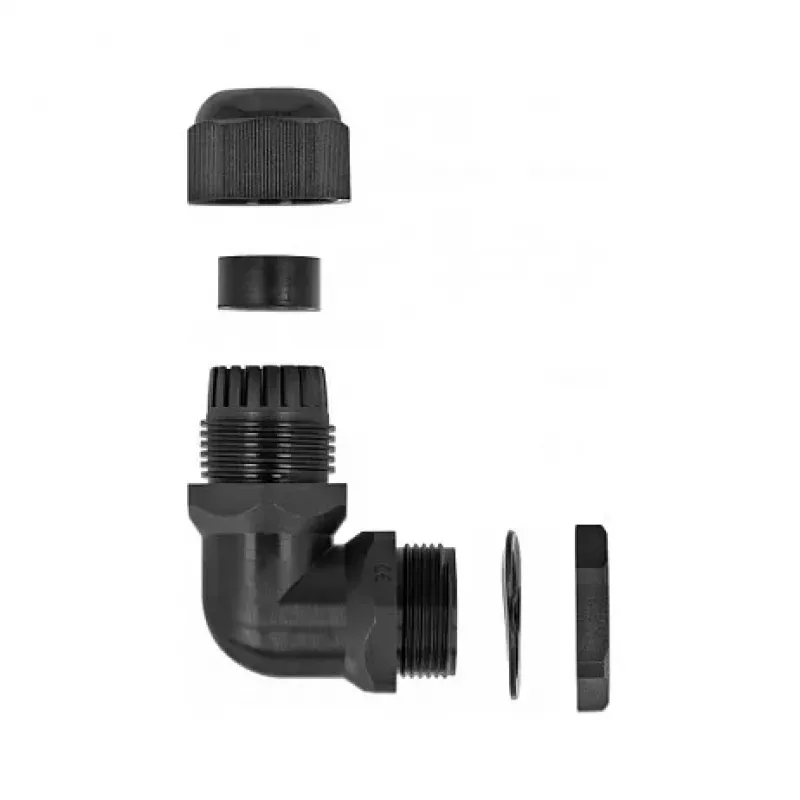

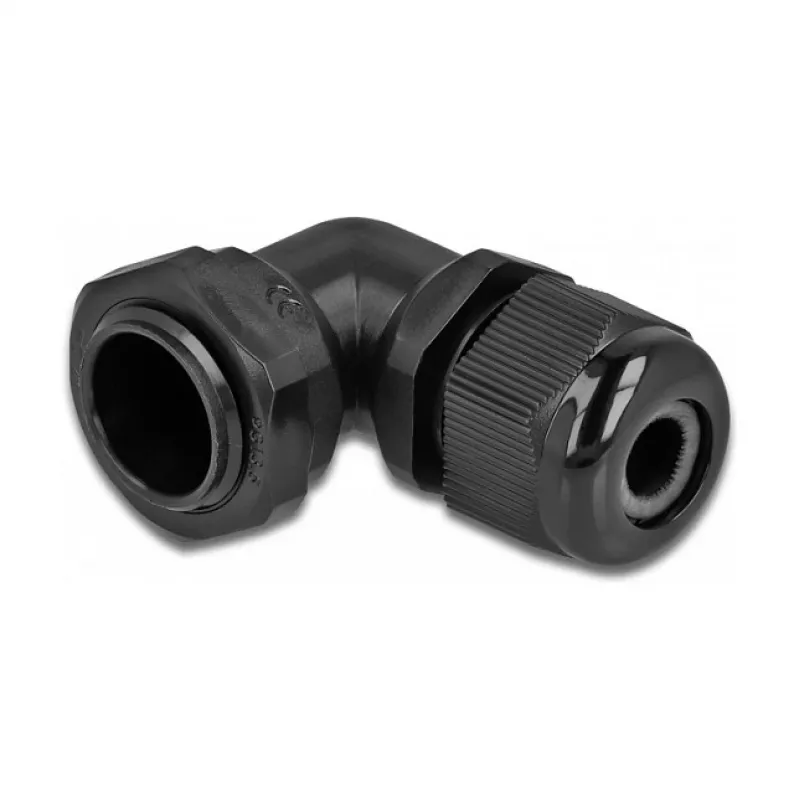

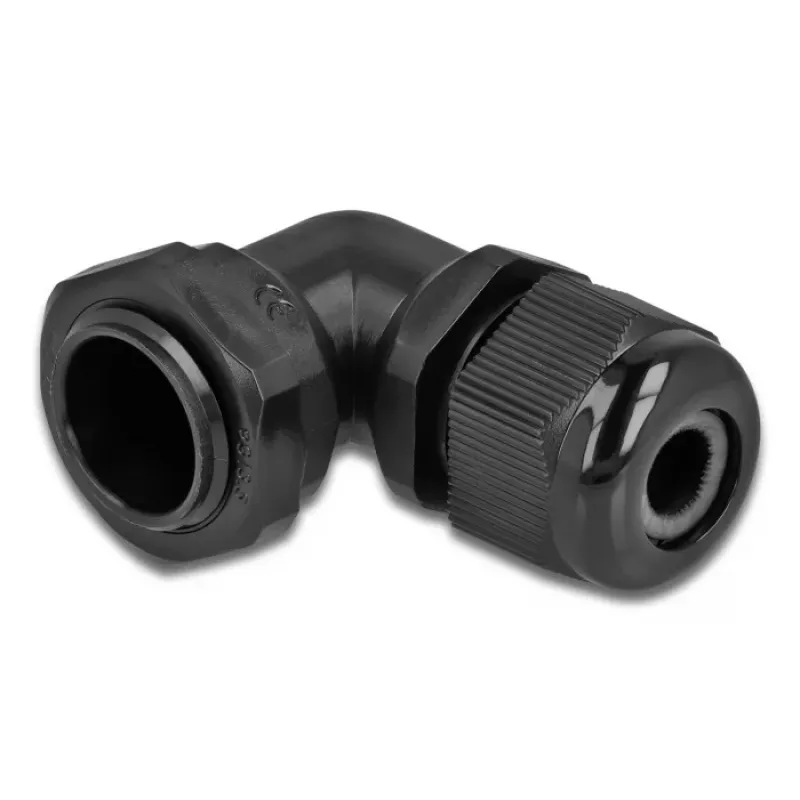

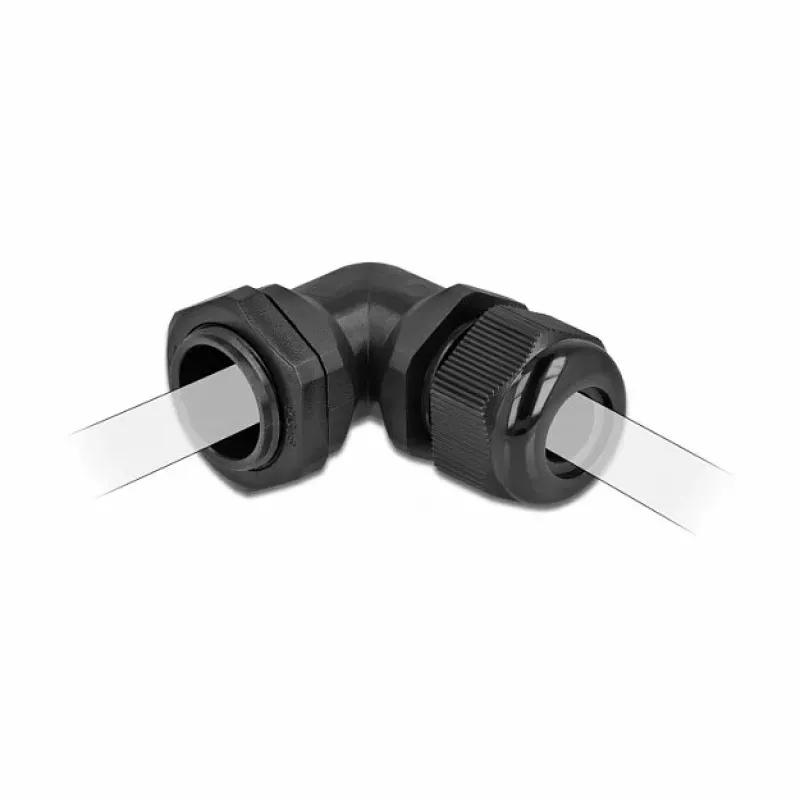

Delock kaapeliläpivienti 90° kulma PG13.5 musta

The Delock Cable Gland 90° Angled PG13.5 Black is a high-quality cable entry solution designed for industrial and commercial applications. This angled cable gland provides a secure and reliable connection for cables with a diameter range of 6 to 12 mm, ensuring protection against dust and water ingress with an IP68 rating. Made from durable polyamide 6 (PA6) and featuring a black finish, it is suitable for use in harsh environments where resistance to oil, chemicals, and UV radiation is required.

Advantages

This cable gland offers a space-saving 90° angled design, ideal for installations where straight cable entry is not possible. The IP68 protection class guarantees reliable sealing against dust and temporary submersion. With a wide operating temperature range and robust material, it ensures long-lasting performance in demanding conditions.

Suitable for

• Industrial machinery and equipment
• Control cabinets and junction boxes
• Automation systems
• Outdoor installations requiring weatherproof connections

Key specifications

• Product Type: Cable Gland
• Design: 90° Angled
• Thread Type: PG (Panzergewinde)
• Thread Size: PG13.5
• Material: Polyamide 6 (PA6)
• Color: Black
• Protection Class: IP68
• Cable Diameter Range: 6 - 12 mm
• Operating Temperature (Static): -40 °C to 100 °C
• Operating Temperature (Dynamic): -20 °C to 80 °C
• Flammability Rating: UL 94 V-2
• Thread Length: 11 mm
• Wrench Size (Nut): 24 mm
• Gasket Material: NBR (Nitrile Butadiene Rubber)
• UV Resistance: Yes
• Oil Resistance: Yes
• Chemical Resistance: Yes
• Certifications: RoHS, REACH

Recommendations

For optimal sealing, ensure the cable diameter is within the specified range and tighten the gland to the recommended torque. Suitable for use with standard PG13.5 threaded openings.
