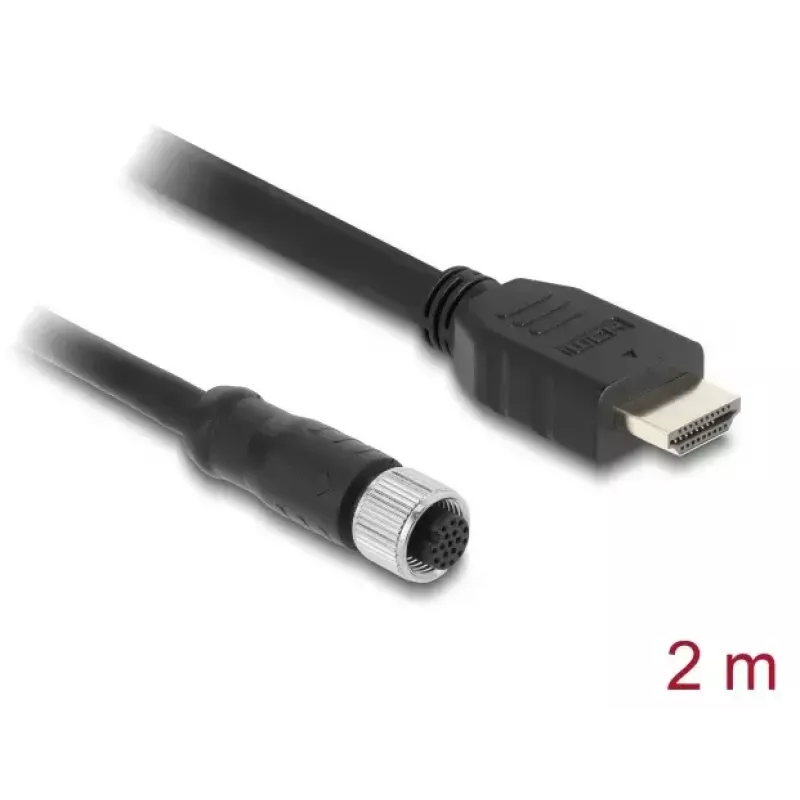

DELOCK M12 A-koodattu 17-napainen (liitin) - HDMI (pistoke) kaapeli 2 m

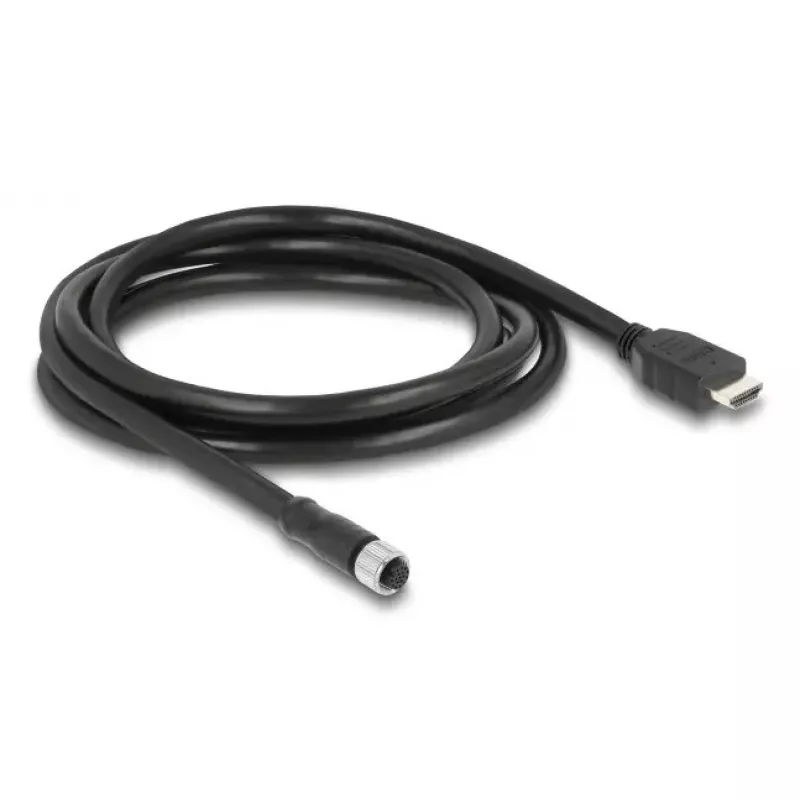

The DELOCK M12 A-coded 17‑pin (female) to HDMI (male) cable, 2 m, provides a robust connection between industrial equipment with an M12 A-coded interface and HDMI displays or capture devices. It is intended for reliable digital video transmission in industrial environments such as image processing systems, industrial cameras, displays, mobile machines and industrial PCs with HDMI output.

Advantages

This cable combines a vibration-resistant M12 A-coded 17‑pin female industrial connector with a standard HDMI male plug, enabling direct connection of M12-equipped devices to HDMI monitors or recording devices. The 2 m length offers flexible routing in machine rooms and production lines while maintaining a compact footprint. The construction focuses on reliable signal transmission in industrial and AV setups.

Suitable for

• Connecting industrial cameras or image processing units to HDMI displays or capture devices
• Integrating mobile machinery or industrial PCs with HDMI monitors
• Use in production lines and factory automation where M12 A-coded interfaces are present

When it may not be suitable

This cable is not a universal adapter for all M12 pinouts or custom wiring schemes; it is specifically for devices using an M12 A-coded 17‑pin female interface paired with HDMI output requirements. It is not designed to replace long-distance signal extenders, fibre-optic links, or converters that change signal types beyond HDMI-compatible digital video.

Key specifications

• Cable length: 2 m
• Connector 1: M12 A-coded 17‑pin female
• Connector 2: HDMI male (standard HDMI)
• Application: Digital video transmission between M12 A-coded industrial equipment and HDMI devices

How to use

Connect the M12 A-coded 17‑pin female end to the corresponding M12 A-coded port on the industrial device, ensuring proper alignment and secure engagement. Plug the HDMI male connector into the HDMI input of the display or capture device. Verify that both devices are powered and configured to the appropriate video output/input settings. Route the cable to avoid sharp bends and mechanical strain to maintain signal integrity.

What to consider before purchase

• Confirm that the industrial device uses an M12 A-coded 17‑pin female interface compatible with the cable
• Ensure HDMI input on the target display or capture device is available and supports the required resolution and refresh rate
• Assess whether 2 m length is sufficient for your installation or if a longer connection solution is needed

Recommendations

For reliable operation, check connector locking and cable routing regularly in vibration-prone environments and avoid tight bends; use short, secure routes and strain relief where possible to preserve HDMI signal quality from M12-equipped industrial devices.
