Delock Mini PCIe I/O Full Size -kortti 8 x sarjaportti RS-232 DB9 standardi- ja Low Profile -korttipaikkapeiteillä

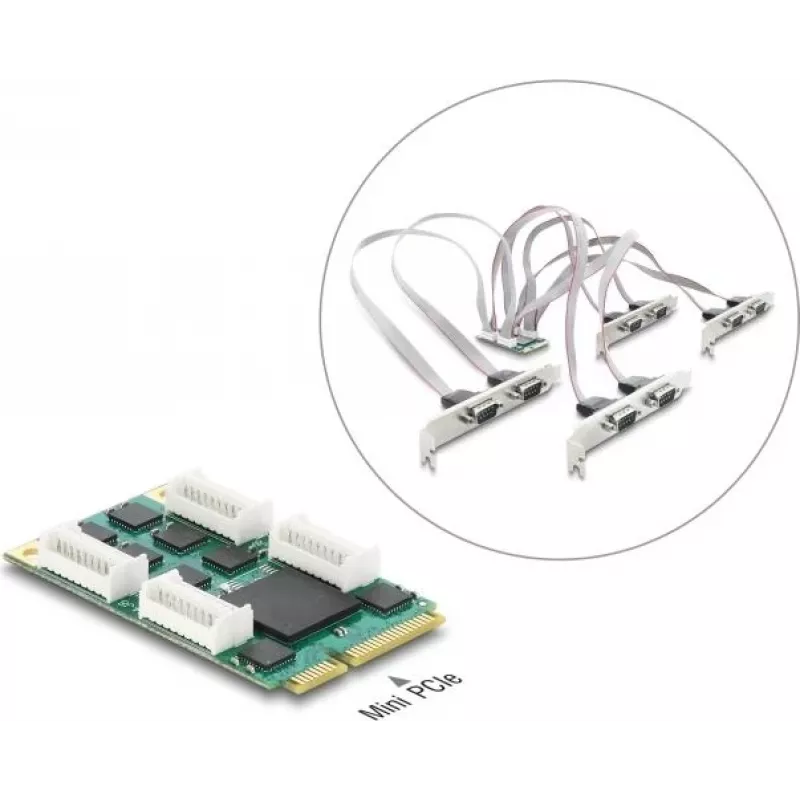

The Delock Mini PCIe I/O full size card provides eight serial RS-232 interfaces via DB9 connectors, ideal for industrial applications requiring multiple serial connections. It includes both standard and low profile slot brackets for flexible installation in various system form factors.

Advantages

Expand your system with eight independent RS-232 serial ports using a single Mini PCIe slot. The card features the high-performance Exar XR17V358 chipset with 256-byte FIFO per port and data rates up to 921.6 Kbps. Hardware and software flow control ensure reliable data transmission. Wide operating temperature range (-40°C to 85°C) makes it suitable for harsh environments.

Suitable for

• Industrial PCs and embedded systems requiring multiple serial connections
• POS systems, barcode scanners, and serial printers
• Laboratory and measurement equipment
• Network switches and routers with serial console ports

Key specifications

• Interface: Mini PCIe (full size)
• Number of Serial Ports: 8
• Serial Standard: RS-232
• Connector: DB9 male
• Chipset: Exar XR17V358
• Max. Data Rate: 921.6 Kbps
• FIFO: 256 byte per port
• UART: 16C950 compatible
• Flow Control: Hardware (RTS/CTS), Software (XON/XOFF)
• Parity: Even, Odd, None, Mark, Space
• Data Bits: 5, 6, 7, 8
• Stop Bits: 1, 1.5, 2
• Operating Voltage: 3.3 V
• Operating Temperature: -40°C to 85°C
• Supported OS: Windows 7/8/8.1/10 (32/64-bit), Linux Kernel 2.6.x and above
• Included Brackets: 2 x Standard Profile, 2 x Low Profile
• Included Cables: 2 x DB44 to 4 x DB9 Serial Cable (approx. 30 cm)

Recommendations

For optimal performance, use high-quality shielded serial cables. Ensure your system has an available full-size Mini PCIe slot. The card supports both standard and low profile brackets for versatile mounting.
