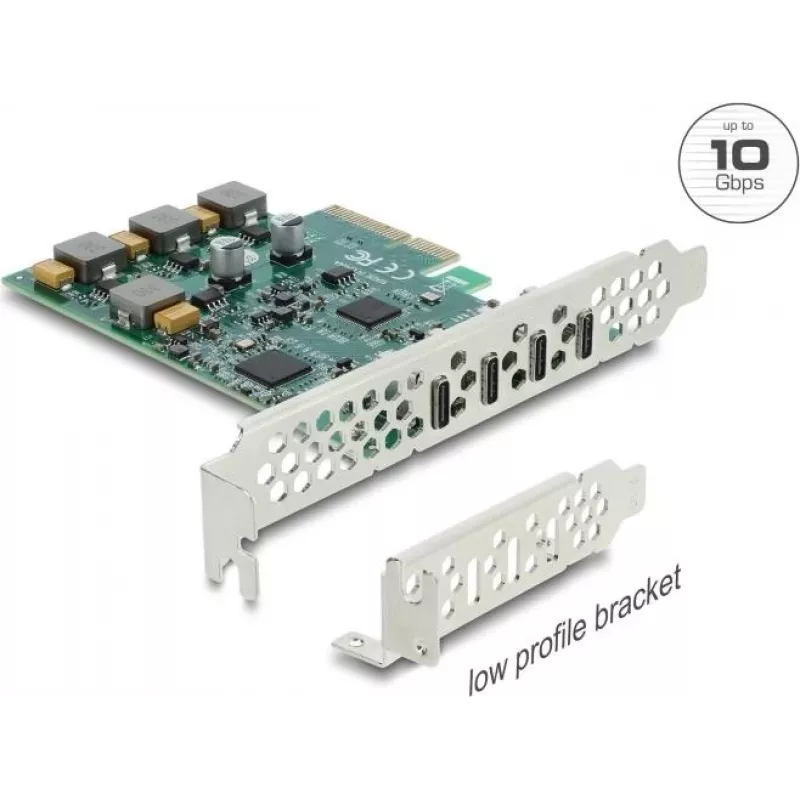

Delock PCI Express x4 -kortti 4 x USB Type-C™ 10 Gbps - Low Profile -muotokerroin

Modern laptops and small form factor PCs often lack enough high-speed USB ports for connecting multiple external drives, docking stations, or VR peripherals. The Delock 90935 solves this by adding four USB Type-C™ ports with 10 Gbps bandwidth each, directly through a PCIe x4 slot. This low profile card fits slim desktops and servers, and includes both standard and low profile brackets for universal compatibility.

Who is it for

This expansion card is ideal for IT professionals, content creators, and power users who need reliable, high-speed USB connectivity on desktop workstations, home servers, or compact PCs. It is especially useful for those working with large file transfers, multiple USB-C devices, or systems with limited native USB-C ports.

Main features

• Adds 4 external USB Type-C™ ports with USB 3.2 Gen 2 (10 Gbps) speed
• PCI Express x4 interface, compatible with x4, x8, and x16 slots
• Low profile form factor with included standard and low profile brackets
• ASMedia ASM3142 chipset ensures stable performance and broad OS support
• Supports UASP for faster data transfer with compatible devices
• Hot-swap capability allows connecting and disconnecting devices without rebooting
• Backward compatible with USB 3.1 Gen 1, USB 3.0, USB 2.0, and USB 1.1
• SATA power connector provides up to 4.5 W per port for bus-powered devices

Specifications

• Host interface: PCI Express x4
• Output interface: USB 3.2 Gen 2 (4 ports, Type-C™ female)
• Data transfer rate: up to 10 Gbps per port
• Chipset: ASMedia ASM3142
• Internal power connector: 1 x SATA 15 pin
• Form factor: Low Profile PCI Express Card
• Included brackets: Standard and Low Profile
• Operating system support: Windows 8.1/10/11, Linux Kernel 4.x.x and above
• Backward compatibility: USB 3.1 Gen 1, USB 3.0, USB 2.0, USB 1.1
• Power output per port: max. 4.5 W (5 V / 0.9 A)
• PCIe slot compatibility: x4, x8, x16 slots
• UASP support: Yes
• Hot swap support: Yes

Tips

For optimal performance, install the card in a PCIe x4 or larger slot and connect the SATA power cable from your power supply. Ensure your operating system has the latest USB drivers, and use high-quality USB-C cables rated for 10 Gbps to achieve maximum transfer speeds. When using bus-powered devices, the SATA power connection is required to deliver full power to all ports.
