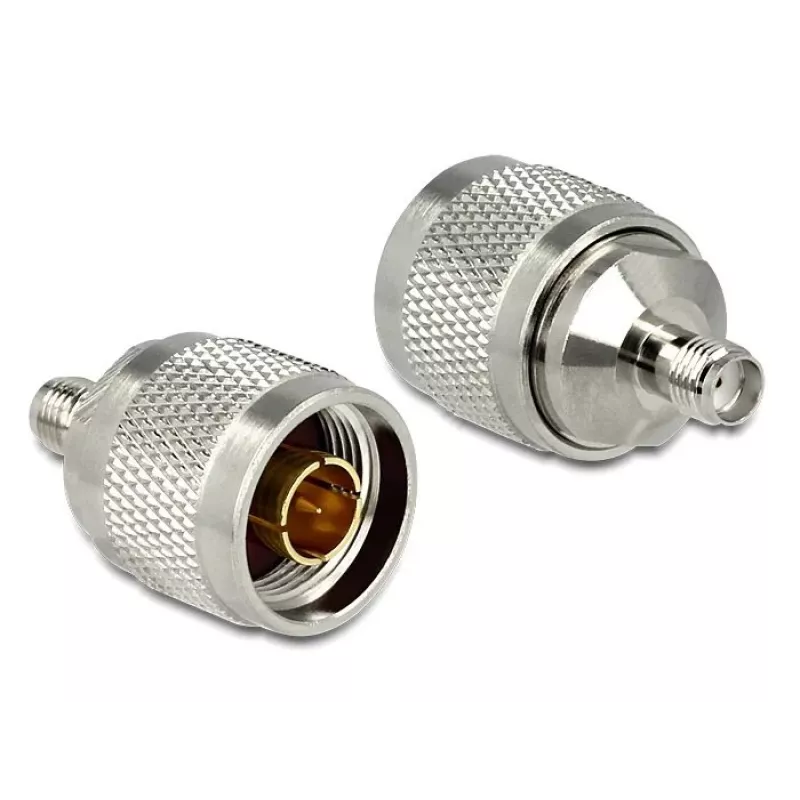

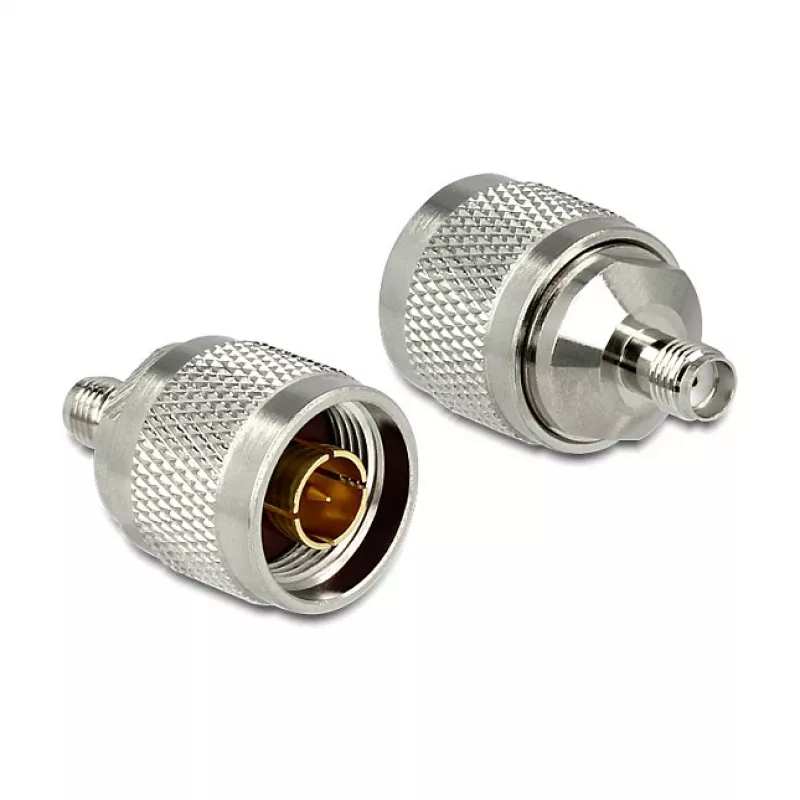

DeLOCK RF-adapteri N plug - SMA jack 50 Ohm

The DeLOCK RF Adapter N Plug to SMA Jack is a high-quality adapter designed for connecting devices with N-type male connectors to SMA female connectors. It is ideal for RF, antenna, WLAN, GSM, and GPS applications, offering reliable signal transmission with minimal loss.

Advantages

This adapter ensures a secure and stable connection between N-type and SMA interfaces. Its robust construction with nickel-plated brass and gold-plated contacts guarantees excellent conductivity and durability. With a frequency range up to 6 GHz and low VSWR, it maintains signal integrity for demanding applications.

Suitable for

• Connecting N-type male antennas to SMA female devices
• RF test equipment and measurement setups
• WLAN, GSM, and GPS systems
• Any application requiring a reliable N to SMA adapter

Key specifications

• Connector 1: N male
• Connector 2: SMA female
• Impedance: 50 Ohm
• Frequency range: DC - 6 GHz
• VSWR: ≤ 1.2
• Material: Brass, nickel-plated
• Contact plating: Gold
• Insulator: PTFE
• Adapter type: Straight
• Operating temperature: -55 °C to 155 °C
• Dielectric withstanding voltage: 1500 V
• Insulation resistance: 5000 MΩ
• Durability: 500 mating cycles

Recommendations

For optimal performance, use this adapter with high-quality coaxial cables and ensure proper torque when connecting. Suitable for indoor and outdoor use within the specified temperature range.
