Delock RJ45-liitäntä riviliittimeen painonapilla DIN-kiskoon kulma (66993)

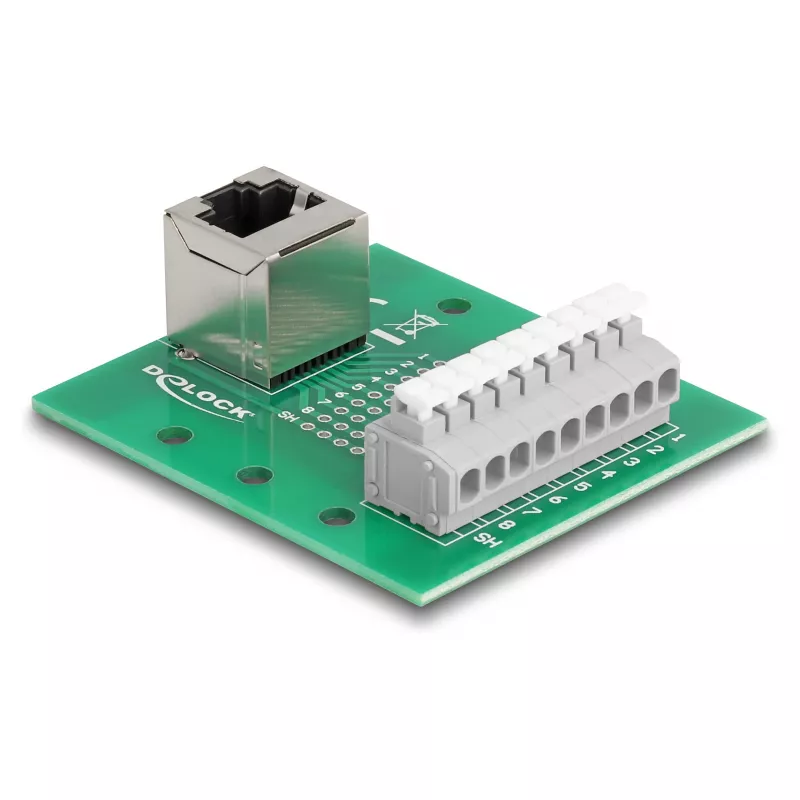

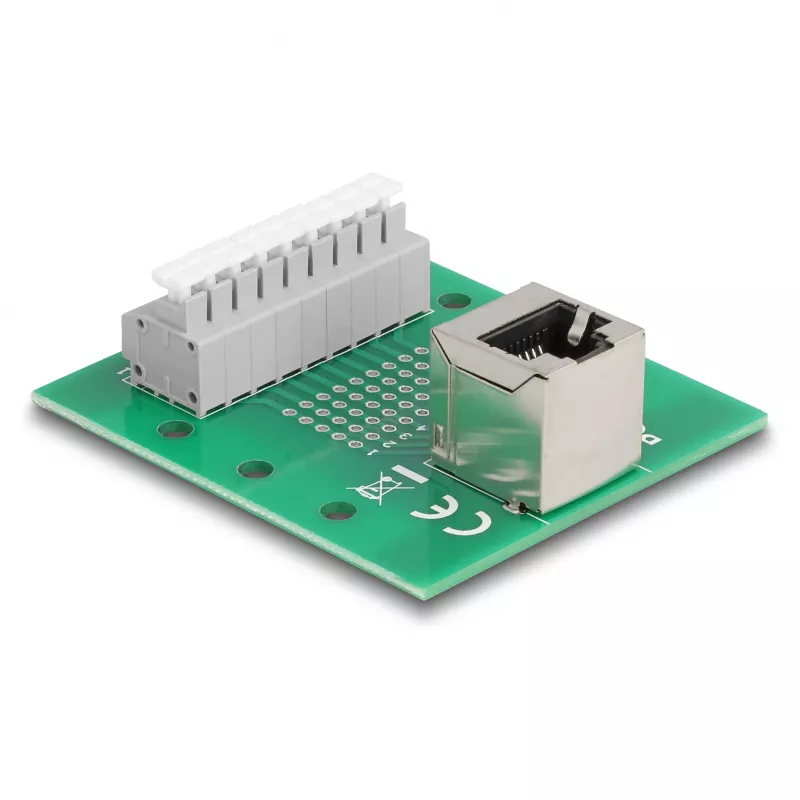

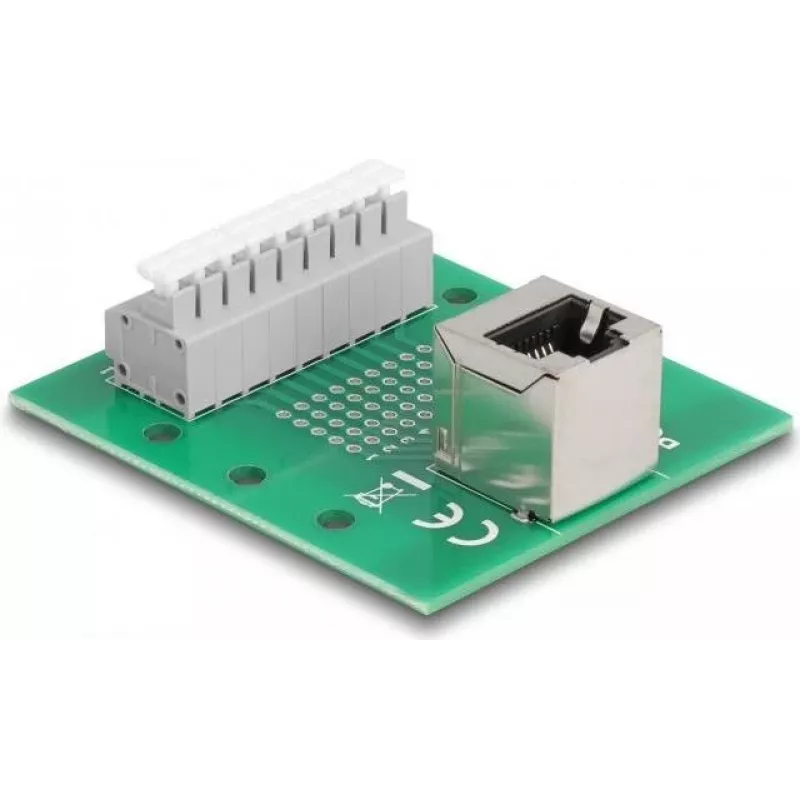

Network installers and industrial technicians can quickly terminate Ethernet cables in control cabinets and distribution boxes with this angled RJ45 jack to terminal block adapter. It mounts on a standard 35 mm DIN rail and uses push-button terminals for fast, tool-free wire connections.

Key specifications

• Connector 1: 1 x RJ45 jack
• Connector 2: 1 x 8-pin terminal block with push button

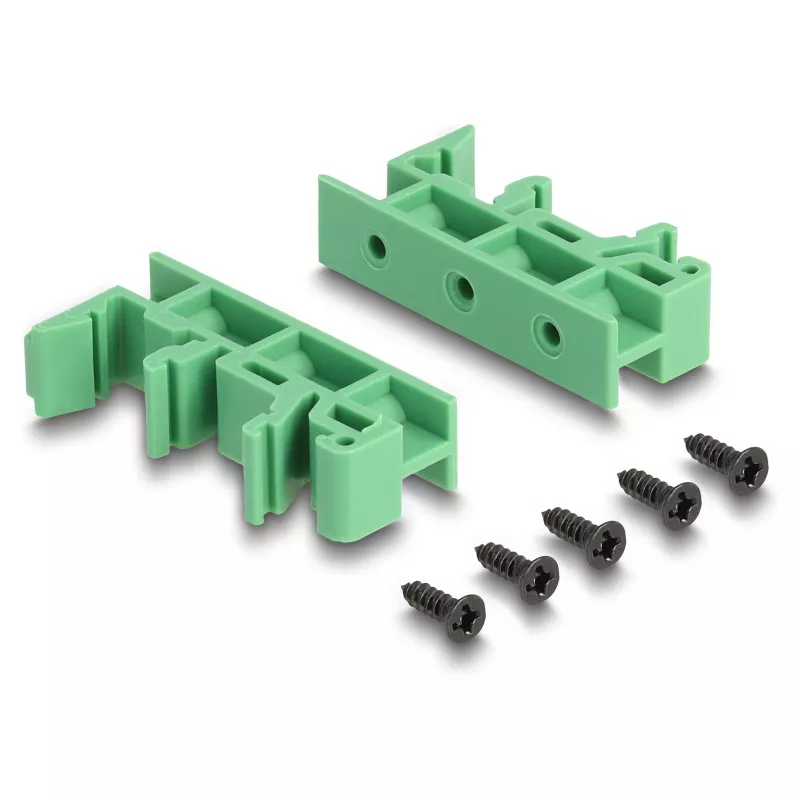

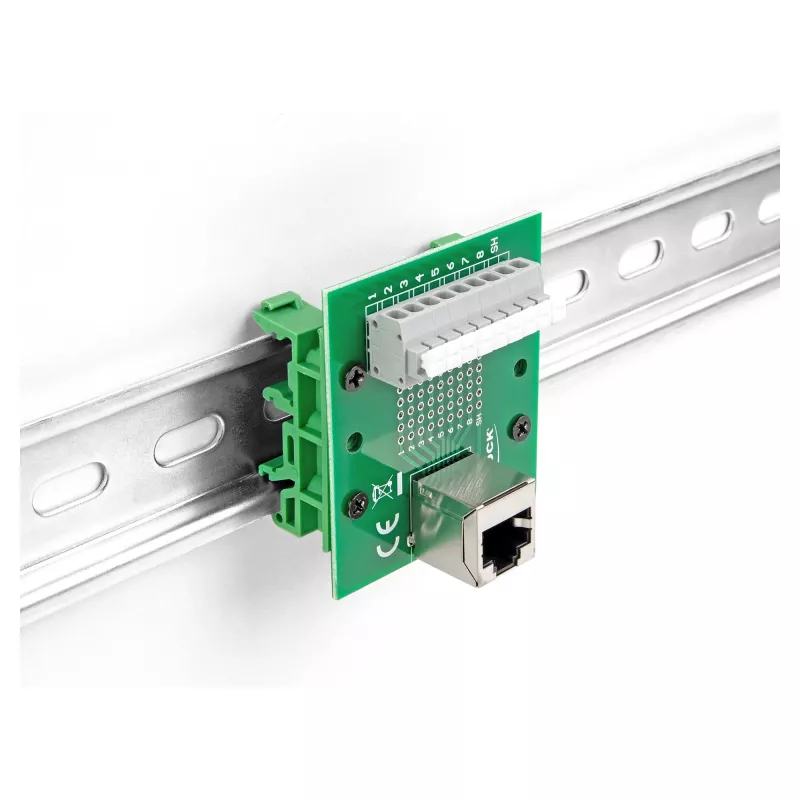

• Mounting: 35 mm DIN rail
• Orientation: Angled
• Pin assignment: 1:1
• Wire gauge: 26 - 16 AWG (0.14 - 1.5 mm²)
• Rated voltage: 60 V
• Rated current: 1.5 A
• Operating temperature: -20 °C to 85 °C
• Housing material: PA 66 plastic
• Colour: Green

Why choose it

The push-button terminals eliminate the need for screwdrivers, speeding up installation and reducing fatigue during repetitive wiring tasks. The angled design saves space in crowded enclosures while maintaining easy access to the RJ45 port.

Ideal use cases

• Industrial Ethernet connections in control panels
• Building automation and HVAC systems
• Field termination of network cables in distribution boxes

Good to know

The adapter supports solid and stranded copper wires from 26 to 16 AWG. Its PA 66 housing provides durability in industrial environments, and the green colour aids quick identification on DIN rails.
