DeLOCK RJ45-liitin kenttäasennettava Cat.6A työkaluton hopea liitin

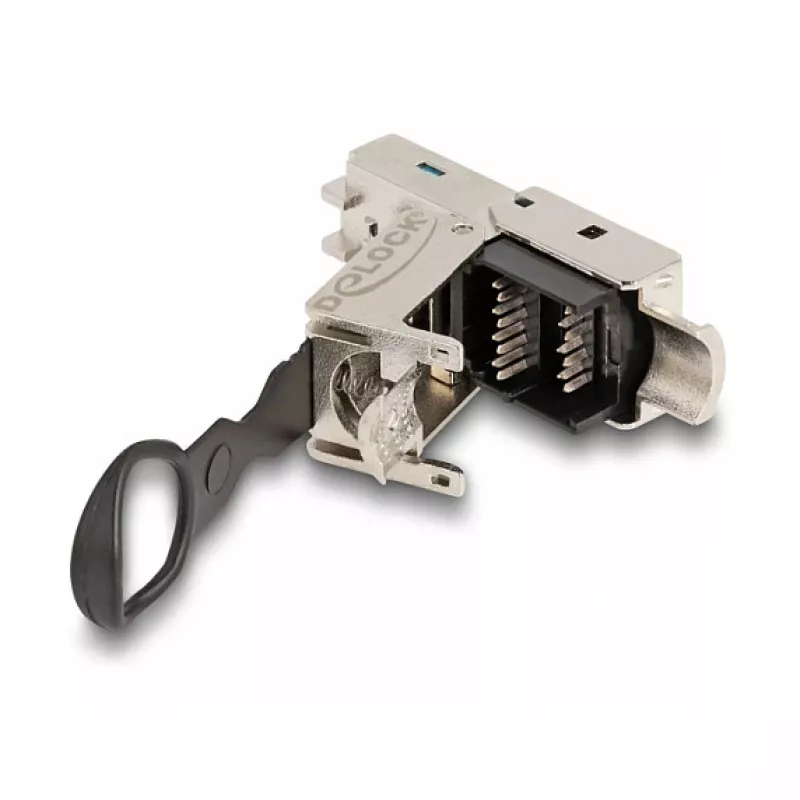

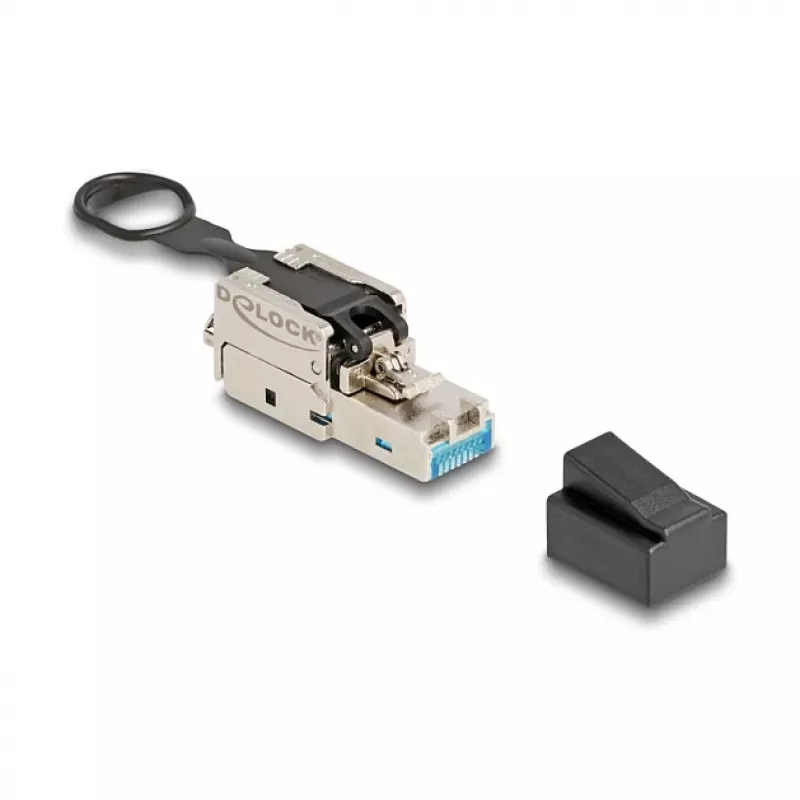

The DeLOCK RJ45 plug field-assembly Cat.6A tool-free silver male is a tool-free connector for creating Ethernet terminations on-site. It accepts Cat.6A cables and allows quick assembly without special tools. The compact silver plug measures approximately 15.7 mm in width, 64.7 mm in depth and 11.7 mm in height, providing a standard male RJ45 interface for network connections. The design includes a push-and-pull unlocking latch that simplifies removal from sockets.

Advantages

This RJ45 plug enables fast, tool-free installation of Cat.6A network cables, reducing assembly time and the need to carry specialized tools. The integrated push-and-pull unlocking latch allows easy release from sockets while protecting the latch from accidental damage. The silver finish offers a neutral appearance suitable for professional installations.

Suitable for

Key specifications

How to use

Prepare the Cat.6A cable by stripping the outer sheath and arranging the conductors according to the required wiring standard. Insert the prepared cable into the plug until it seats fully. The tool-free mechanism secures the conductors and housing; ensure the cable is pushed in completely and the contacts align with the conductors. To remove the plug from a socket, use the push-and-pull latch: press the latch downward using the push-and-pull mechanism and pull the plug straight out.

Recommendations

Use the plug with Cat.6A cables for best performance. Verify wiring order before final insertion and avoid excessive bending near the termination. For permanent installations, ensure the connector is fully seated and tested with appropriate network testing equipment.
