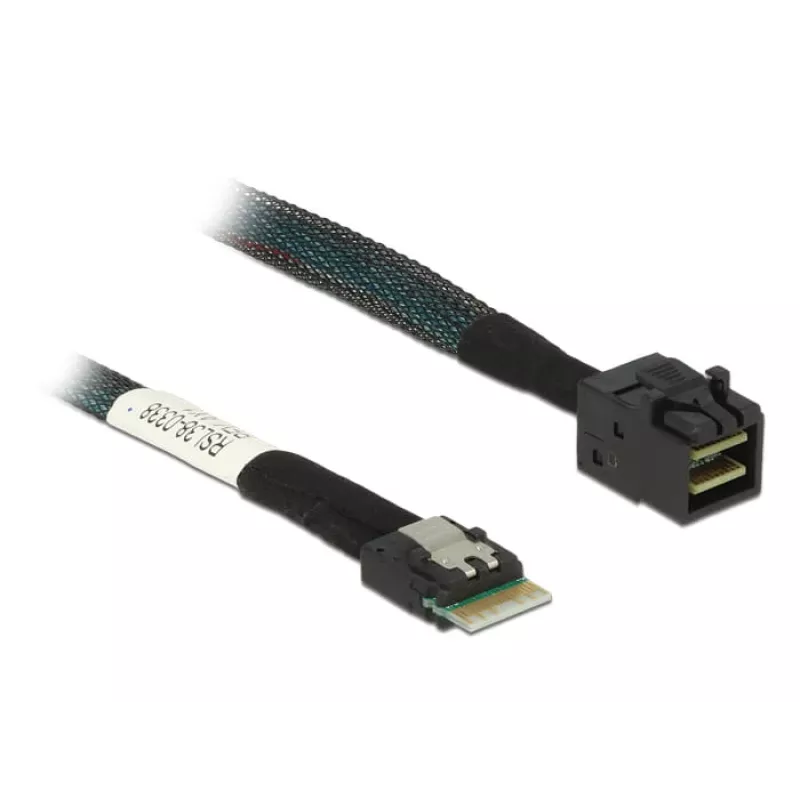

DeLOCK SAS-kaapeli 85081 0,5 m ohut SAS SFF-8654 Mini SAS HD SFF-8643

The DeLOCK SAS cable 85081 is a 0.5 m Serial Attached SCSI cable designed to connect internal storage components. It has a Slim SAS SFF-8654 4i connector on one end and a Mini SAS HD SFF-8643 connector on the other, supporting data transfer rates up to 12 Gbit/s. The cable is suitable for linking backplanes, controllers and other internal devices in server and storage systems and is supplied in a protective polybag.

Advantages

This Slim SAS to Mini SAS HD cable supports up to 12 Gbit/s, provides a compact connection with the SFF-8654 4i connector, and allows direct internal connections between controllers and backplanes using the SFF-8643 interface. Its 0.5 m length is suitable for close internal routing and reduces cable clutter inside chassis.

Suitable for

• Connecting a backplane with Mini SAS HD SFF-8643 to a controller with Slim SAS SFF-8654 4i
• Internal storage connections in servers and rack systems
• High-performance storage arrays and RAID controllers

Key specifications

• Brand: DELOCK
• Manufacturer part number (MPN): 85081
• EAN: 4043619850815
• Length: 0.5 m
• Connector A: Slim SAS SFF-8654 (4i)
• Connector B: Mini SAS HD SFF-8643
• Maximum data rate: 12 Gbit/s
• Packaging: polybag

How to use

Power off the system before installing the cable. Insert the Slim SAS SFF-8654 4i connector into the controller port and the Mini SAS HD SFF-8643 connector into the backplane or target device until each connector seats securely. Route the 0.5 m cable to avoid sharp bends and prevent strain on connectors. After installation, power on the system and verify that connected devices are detected by the controller and operating at expected data rates.

Recommendations

Use this cable for internal connections only. Avoid excessive bending radii and exposure to liquids or extreme temperatures. For optimal performance, keep cable length appropriate for the chassis layout and ensure connectors match the controller and backplane interfaces.
