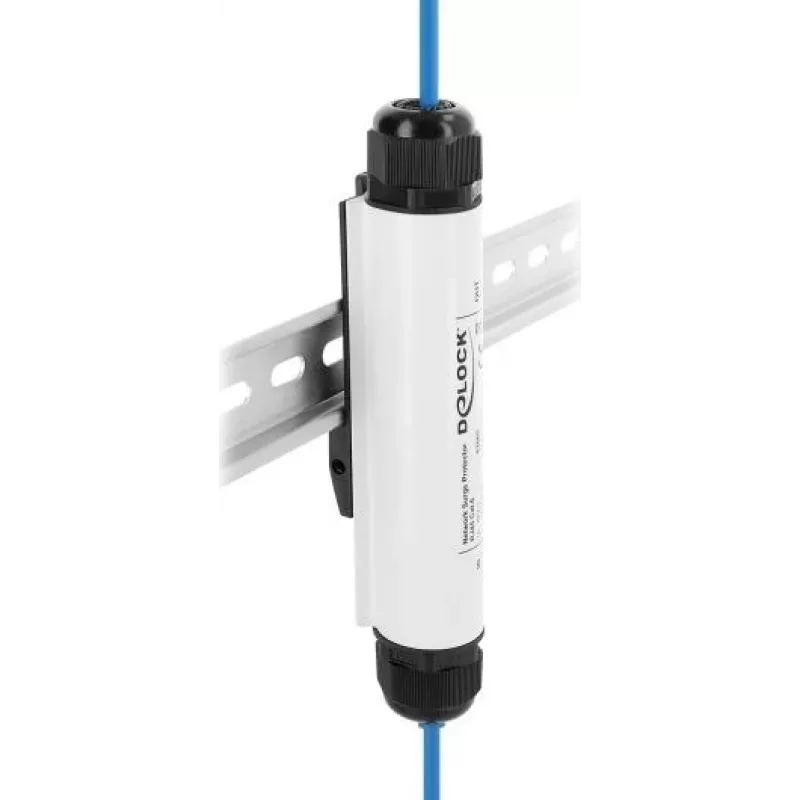

Delock verkon ylijännitesuoja RJ45 ulkokäyttöön IP67 DIN-kiskoasennus

Lightning strikes and electrical surges can travel through network cables, destroying sensitive equipment in an instant. The Delock Network Surge Protector RJ45 Outdoor IP67 is engineered to shield your Ethernet connections from these destructive voltage spikes, ensuring uninterrupted data flow even in harsh outdoor environments. With its rugged IP67-rated housing and DIN rail mounting, this surge protector is the frontline defense for industrial networks, security cameras, and outdoor access points.

Who is it for

This device is ideal for system integrators, network administrators, and facility managers who need reliable protection for outdoor Ethernet links. It is perfectly suited for industrial automation, surveillance systems, and any installation where network cables are exposed to the elements or electromagnetic interference.

Main features

• Protects all 8 data lines of a Gigabit Ethernet connection (10/100/1000 Mbps)
• Weatherproof IP67 metal housing for outdoor use
• Easy installation on standard 35 mm DIN rails
• High discharge capacity: 5 kA nominal, 10 kA maximum (8/20 µs)
• Low voltage protection level for sensitive electronics
• Wide operating temperature range from -40 °C to 80 °C

Specifications

• Connectors: 2 x RJ45 female (shielded)
• Nominal voltage: 5 V DC
• Max. continuous operating voltage: 6 V DC
• Voltage protection level (line-line): < 15 V
• Voltage protection level (line-ground): < 600 V
• Insulation resistance: > 1000 MΩ
• Capacitance: < 5 pF
• Grounding: M4 screw
• Housing material: metal
• Mounting: 35 mm DIN rail
• Ingress protection: IP67

Tips

For optimal protection, install the surge protector as close as possible to the equipment you want to safeguard. Ensure a proper ground connection via the M4 screw to divert surge currents safely. Pair it with a shielded Ethernet cable and grounded connectors for maximum effectiveness.
