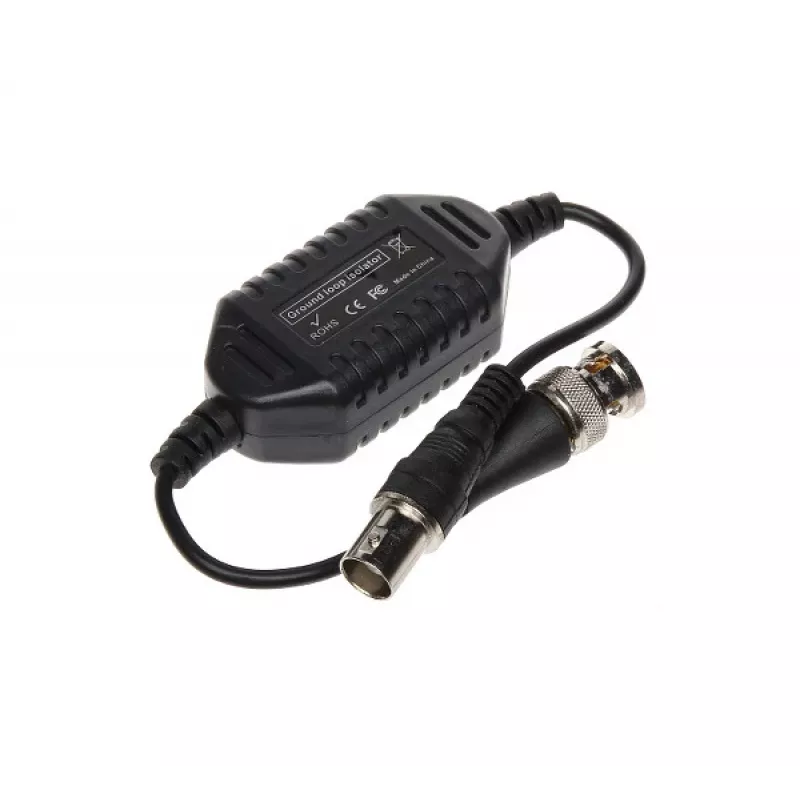

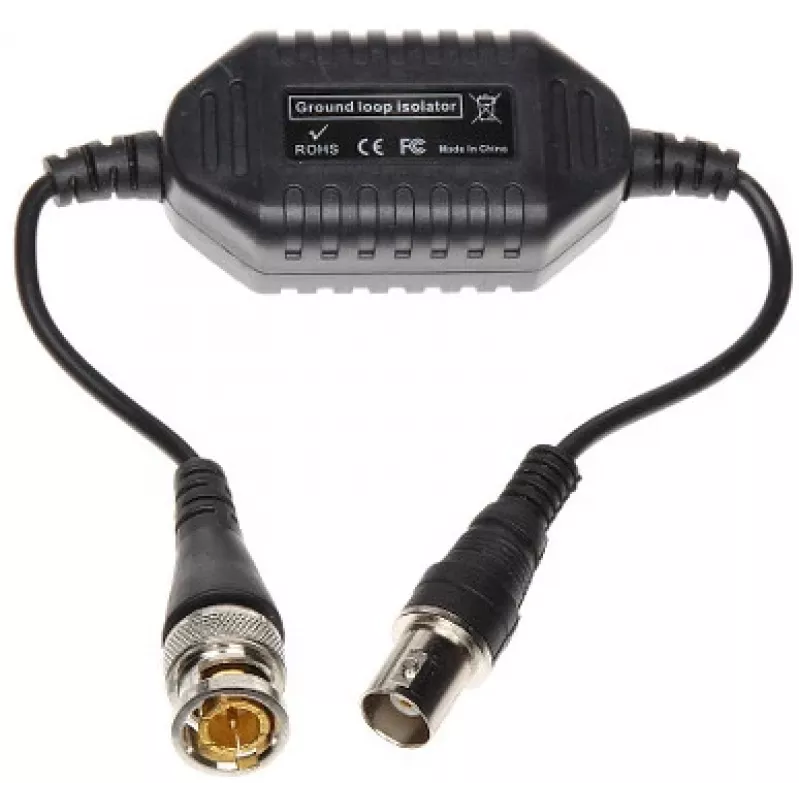

DELTA D-SEP2 videogalvaaninen erotin

The DELTA D-SEP2 Video Galvanic Isolator is a professional-grade device designed to eliminate ground loops and common mode interference in CCTV and video surveillance systems. It provides reliable signal transmission for analog composite video (CVBS), AHD, HD-CVI, and HD-TVI signals up to 8MP resolution. With passive operation requiring no external power, it offers a simple plug-and-play solution for improving video quality and system stability.

Advantages

Eliminates ground loops and hum bars, ensuring clear and stable video. Supports high-resolution formats up to 8MP. Passive design means no power supply needed, reducing installation complexity. Compact ABS housing is durable and lightweight. Wide operating temperature range (-10°C to +50°C) suits various environments.

Suitable for

• CCTV systems with ground loop issues
• Video surveillance installations requiring signal isolation
• Professional video applications using analog or HD-over-coax technologies

Key specifications

• Product Type: Video Galvanic Isolator
• Signal Compatibility: Analog Composite Video (CVBS), AHD, HD-CVI, HD-TVI
• Resolution Support: Up to 8MP (for AHD/HD-CVI/HD-TVI)
• Input Connector: 1x BNC Male
• Output Connector: 1x BNC Female
• Impedance: 75 Ohm
• Bandwidth: 0-100 MHz
• Insertion Loss: < 0.5 dB
• Isolation Type: Galvanic
• Ground Loop Elimination: Yes
• Common Mode Interference Rejection: Yes
• Power Supply: Passive (No external power required)
• Housing Material: ABS Plastic
• Operating Temperature: -10°C to +50°C

Recommendations

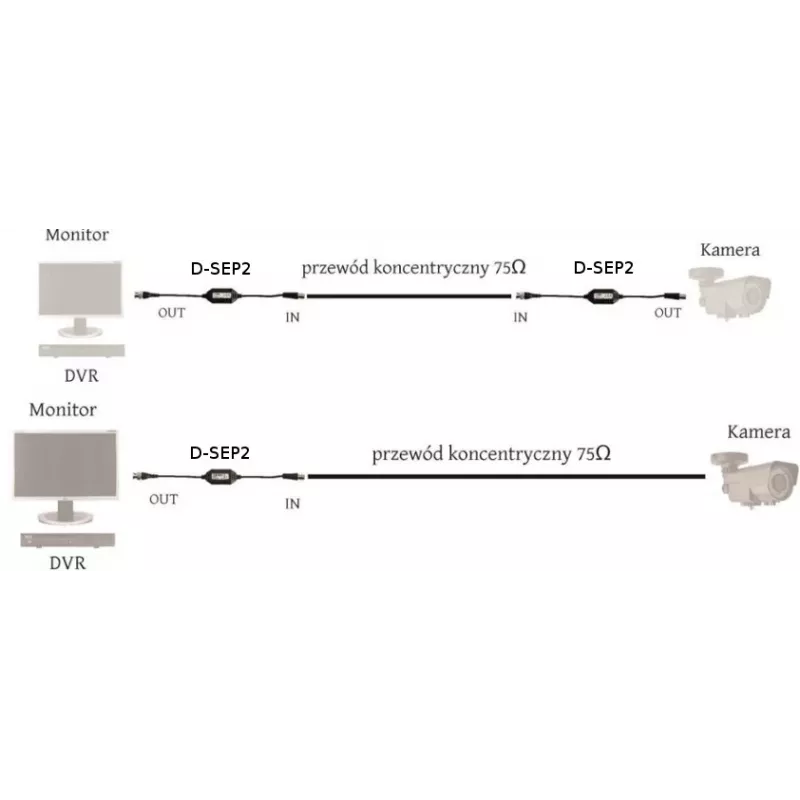

For optimal performance, use high-quality BNC cables and ensure proper grounding of all connected equipment. This isolator is ideal for retrofitting existing CCTV systems to resolve interference issues.
