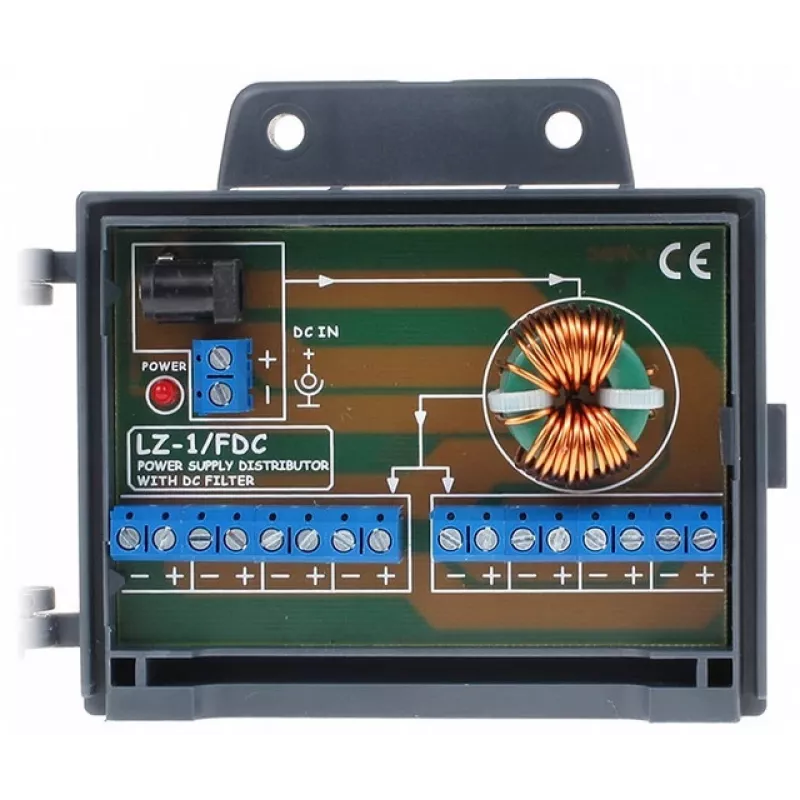

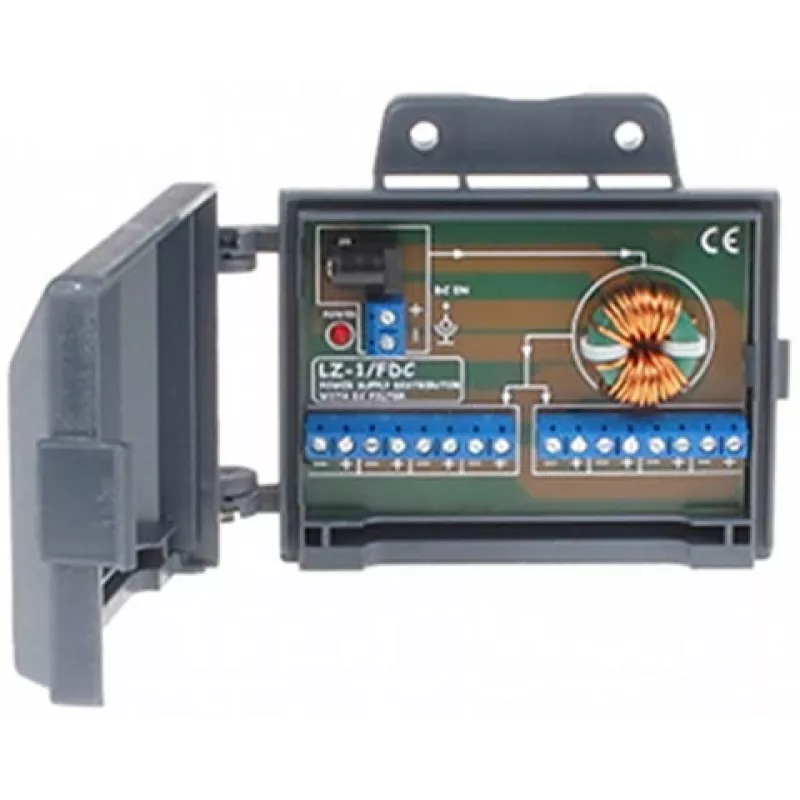

DELTA LZ-1/FDC virranjakoliitin 8-kanavainen 24V DC

The DELTA LZ-1/FDC is a high-quality power distribution terminal block designed for efficient and reliable power distribution in low-voltage applications. With one input and eight outputs, it allows you to power multiple devices from a single power source, simplifying installation and reducing wiring complexity. Ideal for CCTV systems, LED lighting, and other low-voltage power distribution needs.

Advantages

Easy and secure screw terminal connections support wire gauges from 0.5 to 2.5 mm². The compact ABS plastic housing is durable and lightweight, with a white finish that blends into most environments. Surface mount design allows for quick installation on walls or panels.

Suitable for

• CCTV camera power distribution
• LED lighting systems
• Low-voltage control panels
• Security and access control systems

Key specifications

• Input: 1 x Screw Terminal (2 terminals)
• Output: 8 x Screw Terminal (16 terminals)
• Total terminals: 18
• Max input voltage: 24V DC
• Max output current per channel: 1A
• Max total current: 8A
• Wire gauge: 0.5 - 2.5 mm²
• Housing material: ABS Plastic
• Color: White
• Mounting: Surface mount (screw mount)
• Operating temperature: -10°C to +50°C

Recommendations

For optimal performance, use with a regulated 24V DC power supply. Ensure total connected load does not exceed 8A. Suitable for indoor use only.
