InLine 92505B RJ45-liitin riviliitin, suora, DIN-kisko

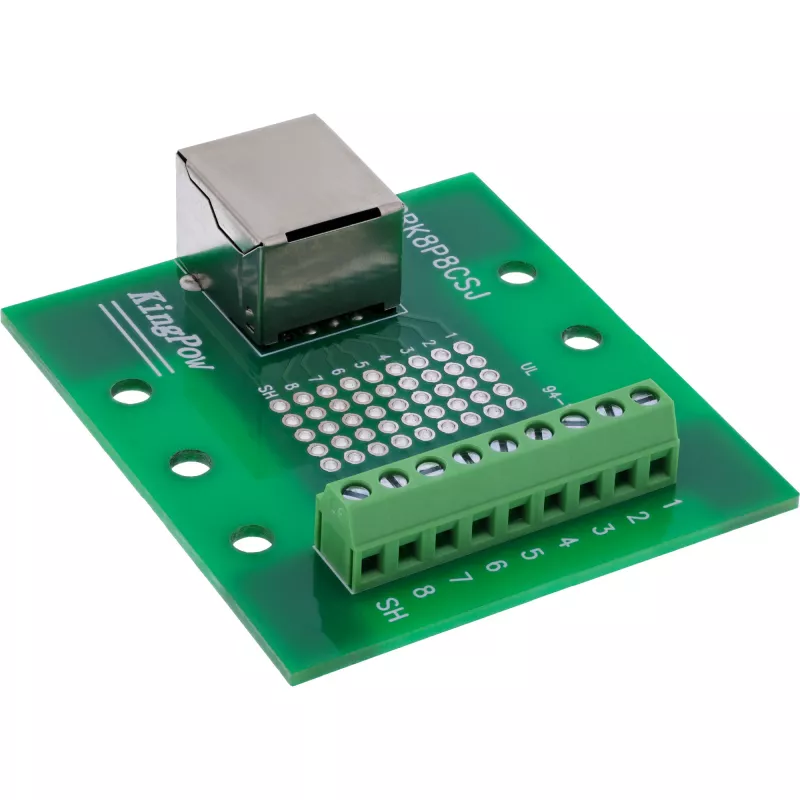

The InLine 92505B is an RJ45 socket terminal block with a straight 8P8C socket and a 9-pin screw terminal for 8 wires plus shield. It enables solder-free wiring with a flat-head screwdriver ≤ 2.5 mm and is prepared for DIN top-hat rail mounting.

Key features

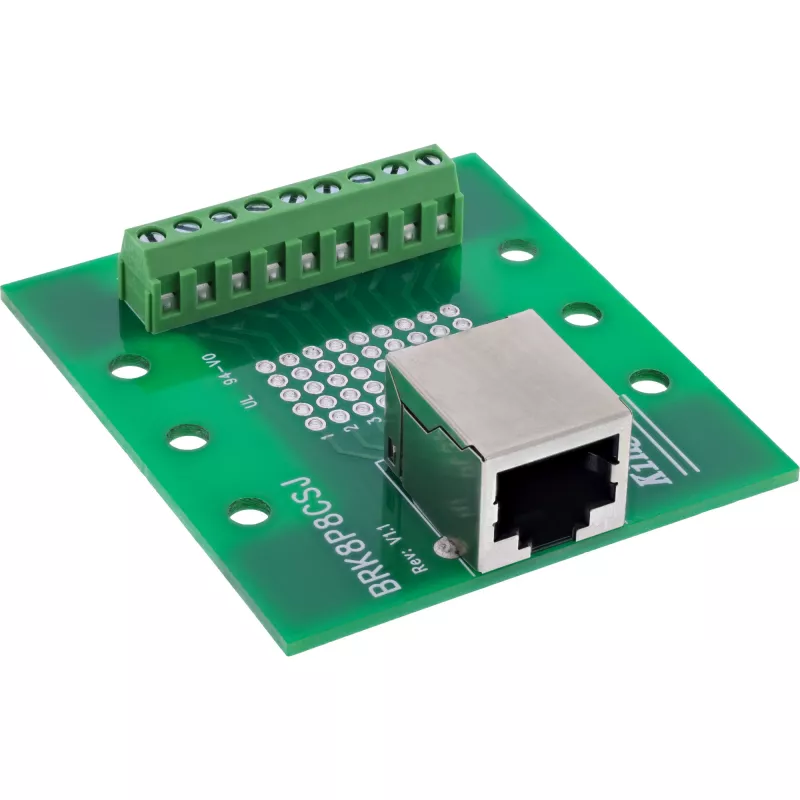

• RJ45 8P8C socket, straight design
• 9-pin screw terminal block (8 signals + shield), 5.0 mm pitch, with pressure plate
• Connection range: 16–26 AWG
• Actuation with flat-blade screwdriver ≤ 2.5 mm

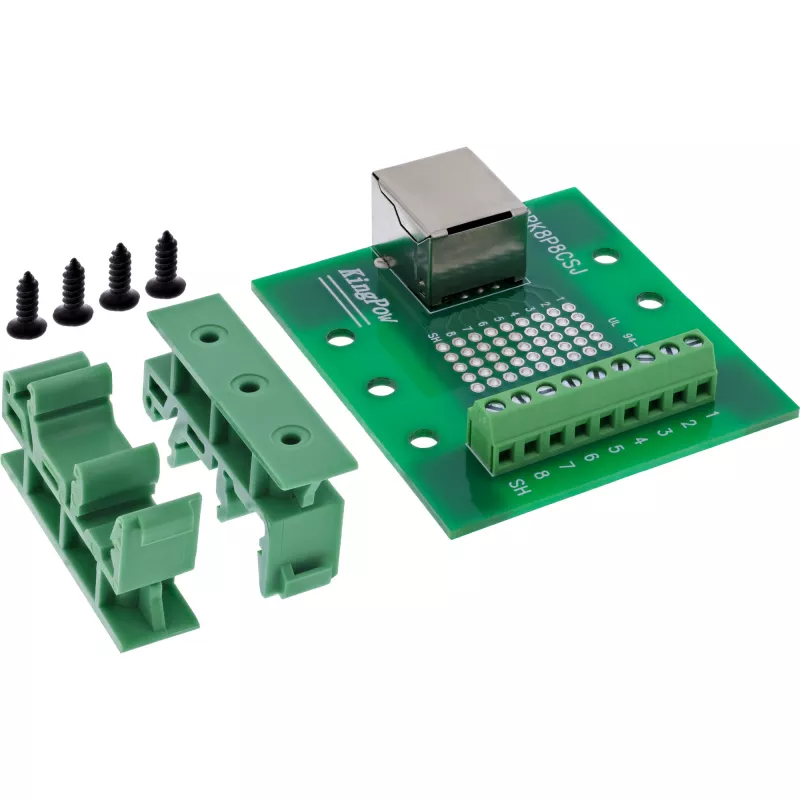

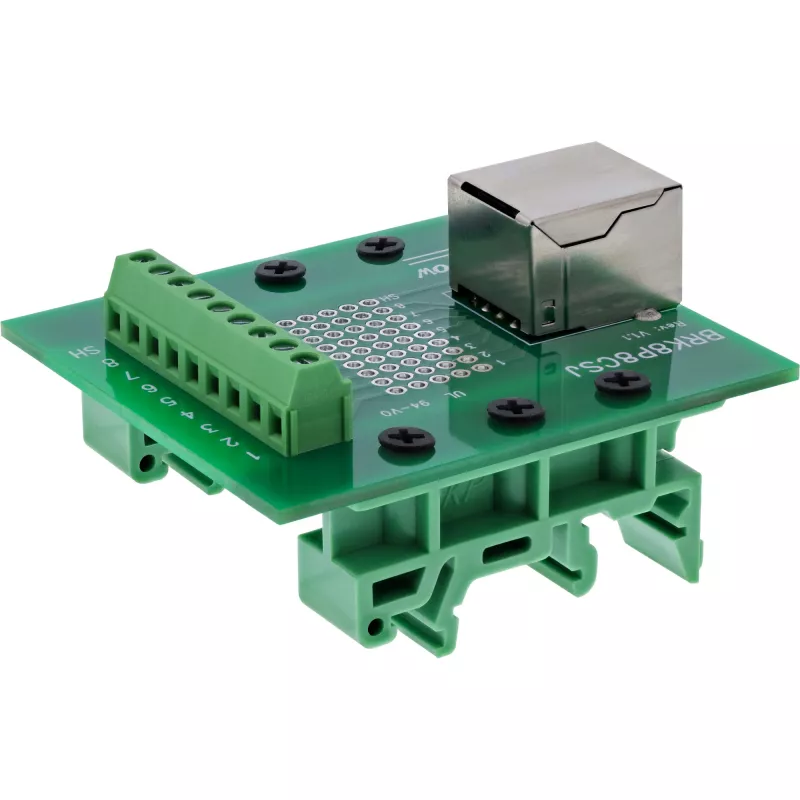

• Prepared for DIN top-hat rail mounting
• Insulation layer: EVA insulation on underside

Specifications

• Brand: InLine
• MPN: 92505B
• Type: For top-hat rail
• Side A: RJ45 female
• Rated current: 1.0 A per pin
• Max. operating voltage: 100 V between two signals
• Insulation resistance: ≥ 10 MΩ @ 300 V DC
• Operating temperature: –20 °C to +70 °C
• Dimensions: approx. 60.45 × 53.6 × 43.0 mm (W × H × D)
• Country of origin: Taiwan
• EAN: 4043718346264
