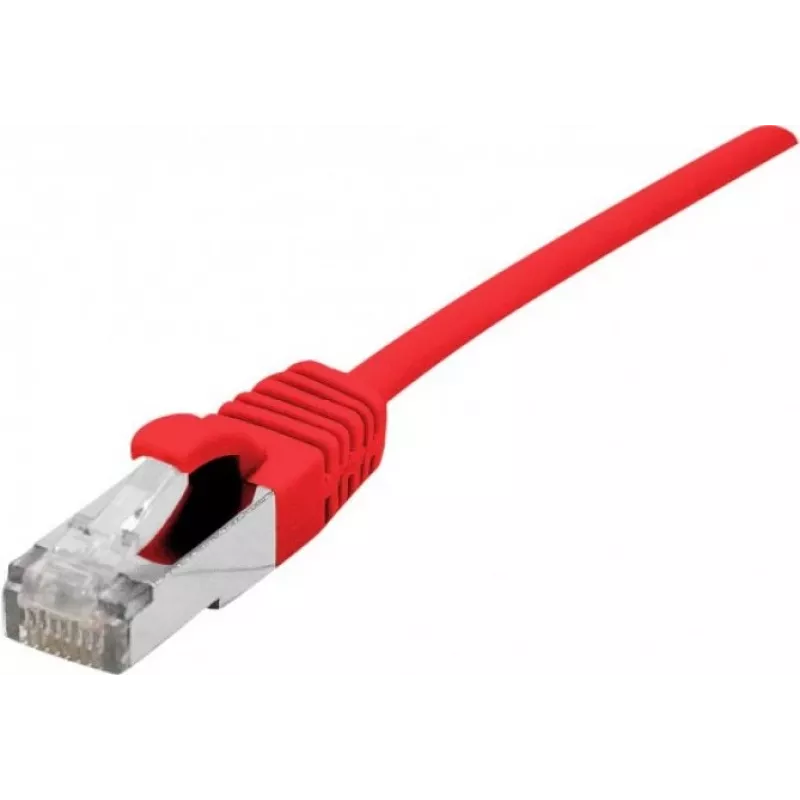

Dexlan Cat. 6A S/FTP (PiMF) Ultra-Thin LSZH -verkkokaapeli, punainen, 10 m 858734

High-density network installations demand reliable, high-performance cabling that doesn't compromise on space or safety. This Dexlan Cat. 6A patch cable delivers 10-Gigabit Ethernet speeds in an ultra-thin, halogen-free design, making it ideal for data centers, server rooms, and office environments where cable management and fire safety are critical.

Who is it for

Network administrators, IT professionals, and system integrators who need to connect high-speed devices in space-constrained areas while adhering to strict fire safety regulations. Perfect for patching between patch panels, switches, servers, and workstations in 10GBASE-T networks.

Main features

• Cat. 6A performance: Supports 10 Gigabit Ethernet up to 500 MHz bandwidth.
• S/FTP (PiMF) shielding: Each pair is individually foil-shielded, and the overall cable is braid-shielded, providing superior immunity to EMI/RFI crosstalk.
• Ultra-thin design: With an outer diameter of approximately 3.8 mm, it saves space and improves airflow in high-density racks.
• Halogen-free LSZH jacket: Low Smoke Zero Halogen material reduces toxic fumes and smoke in case of fire, meeting strict safety standards.
• Latch protection (Rastnasenschutz): The snagless boot protects the RJ45 connector's locking tab from damage during installation and removal.
• Gold-plated contacts: Ensure reliable, corrosion-resistant connections for consistent performance.
• Stranded copper conductors: 28 AWG stranded wire provides flexibility for easy routing in tight spaces.

Specifications

• Cable length: 10.0 m
• Cable type: Cat. 6A S/FTP (PiMF)
• Shielding: S/FTP (PiMF) – shielded foiled twisted pair
• Conductor material: Copper
• Conductor gauge: 28 AWG (stranded)
• Connector type: RJ45 male to RJ45 male
• Connector plating: Gold-plated
• Data transfer rate: Up to 10 Gbps (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Outer diameter: Approx. 3.8 mm
• Wiring standard: TIA/EIA-568B
• Colour: Red

Tips

For optimal performance, avoid bending the cable beyond its minimum bend radius (typically 4x the cable diameter). Use cable management accessories to maintain the ultra-thin profile and prevent tangling. When patching in high-density environments, the latch protection feature helps prevent accidental disconnections.
