Digitaalisen näytön teline Vision VFM-W4X4T 152,4 cm (60") musta

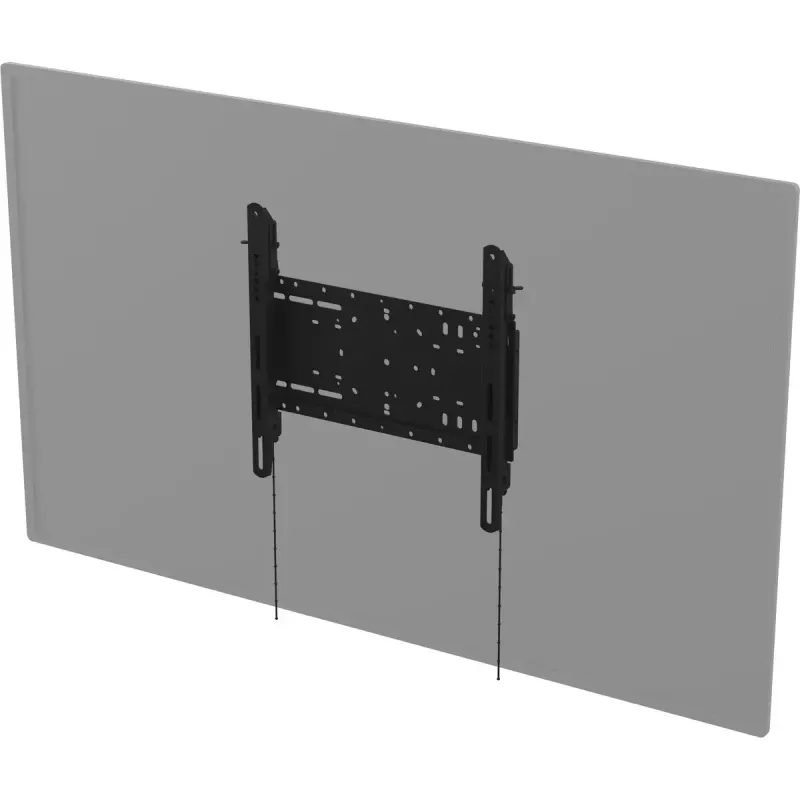

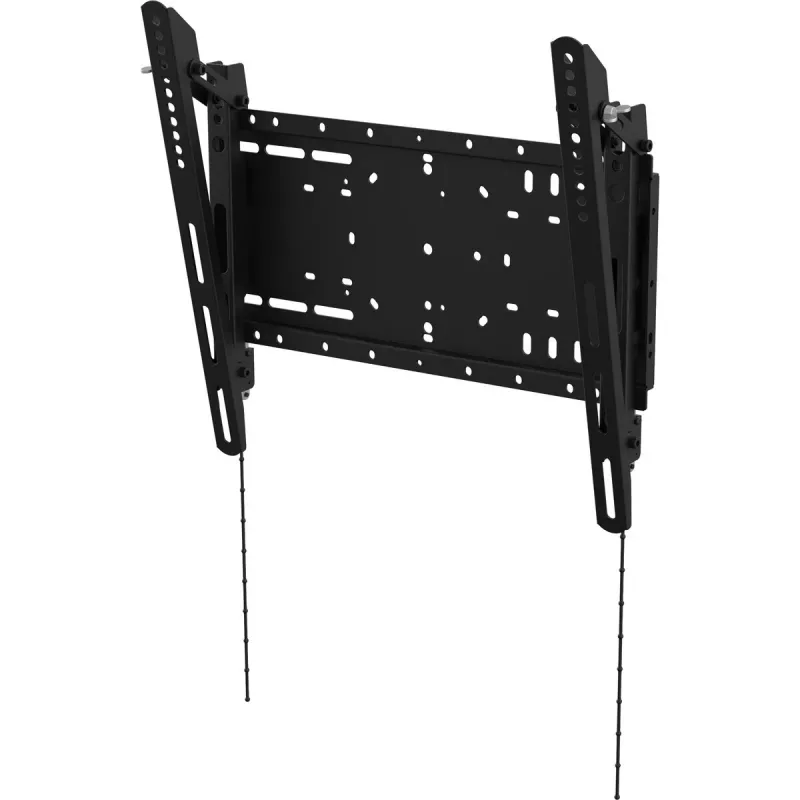

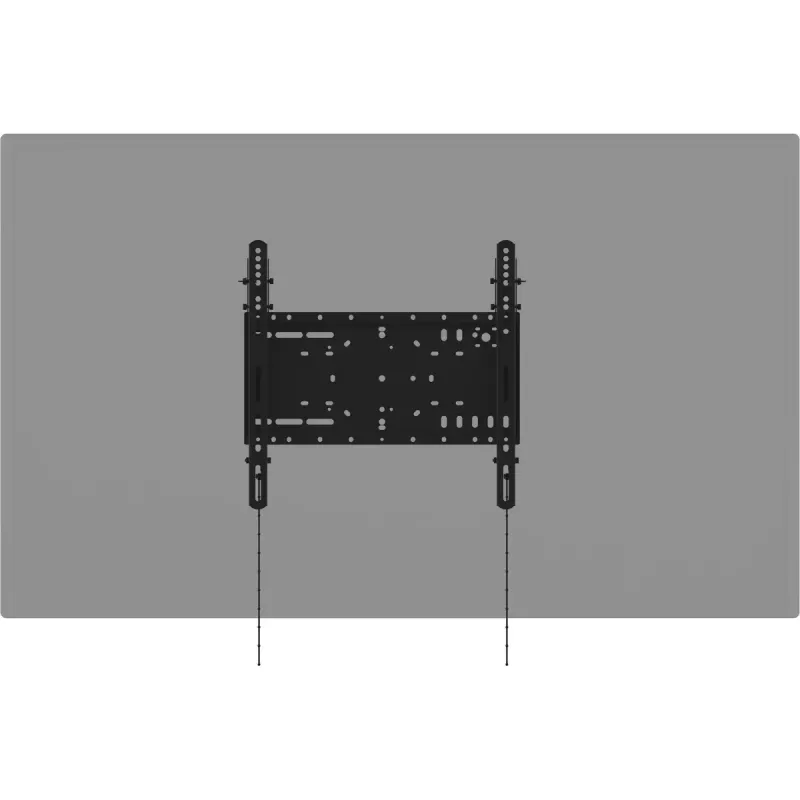

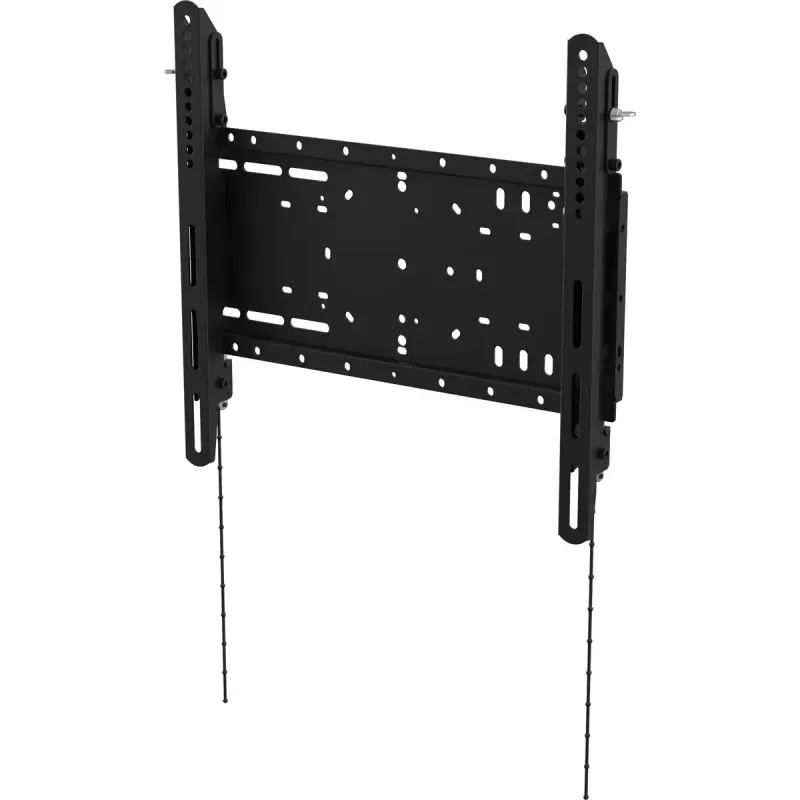

Vision’s VFM-W4X4T is a heavy-duty flat-panel wall mount for signage and interactive displays. Engineered for professional AV installers, it supports most LCD and LED screens from 37" to 60" with rear VESA mounting patterns up to 400 x 400 mm and a safe working load of 100 kg. The slim black design holds the display close to the wall (45 mm) and includes mounting hardware for direct attachment and accessory mounting points for media players and conference equipment.

Advantages

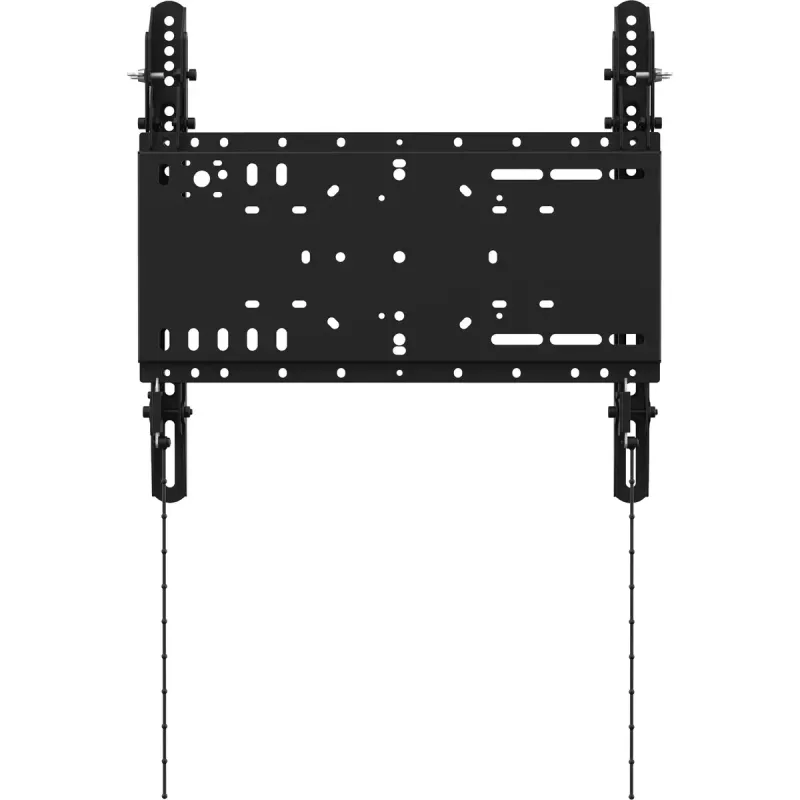

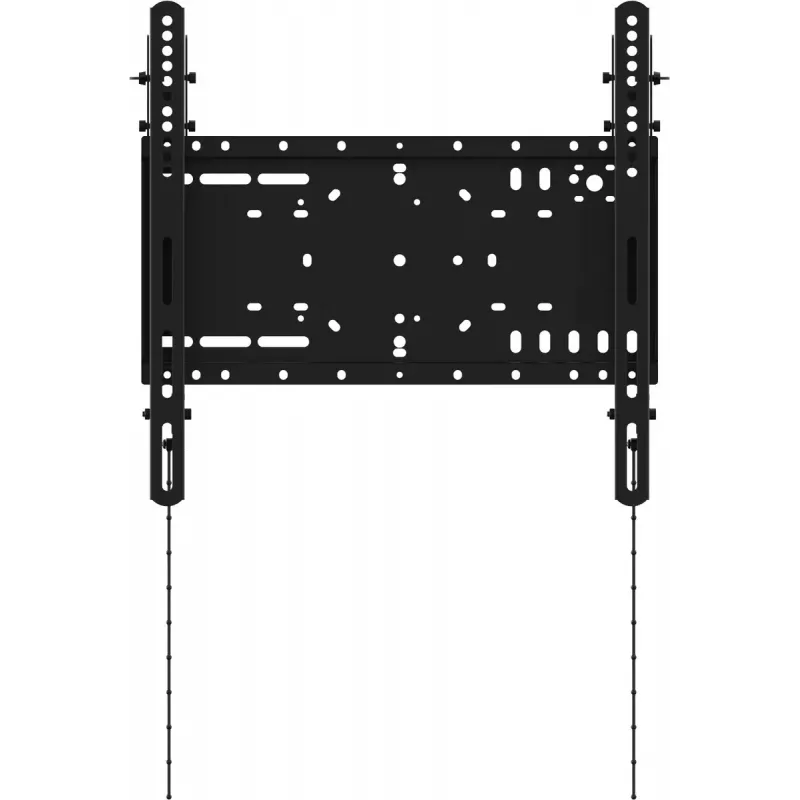

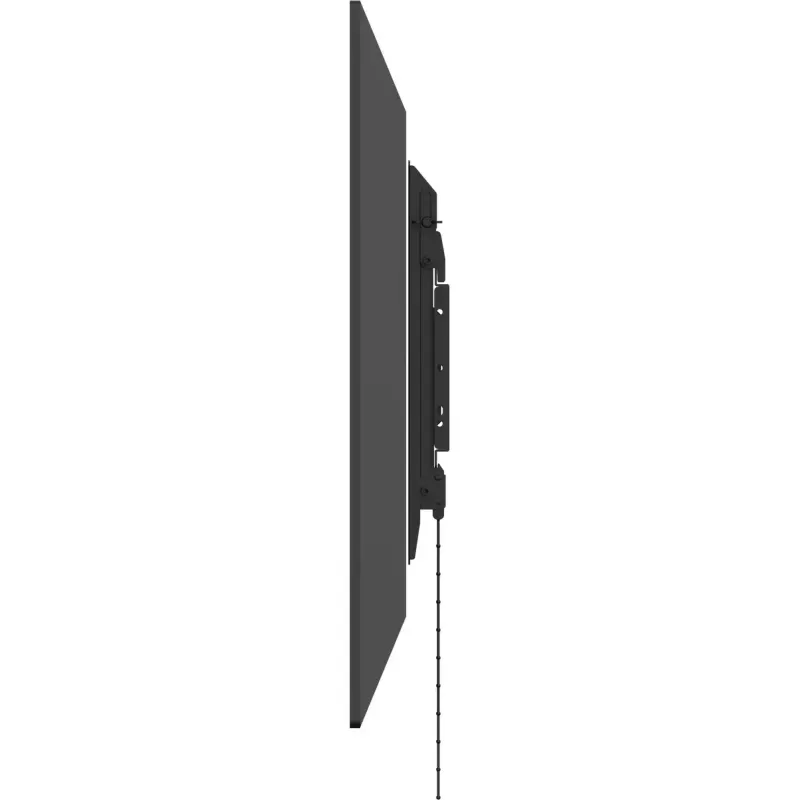

The mount uses heavy-gauge sheet metal for a high safe working load and provides fast, no-compromise installation with all necessary M5, M6 and M8 bolts included. Slotted holes on the wall plate allow post-fix levelling, and the display latches securely to the horizontal section with removable pull-rods for concealed operation. Optional accessories such as a flip-up laptop shelf, Logitech Rally brackets and a central video-conference shelf can be fitted to expand functionality.

Suitable for

Key specifications

How to use

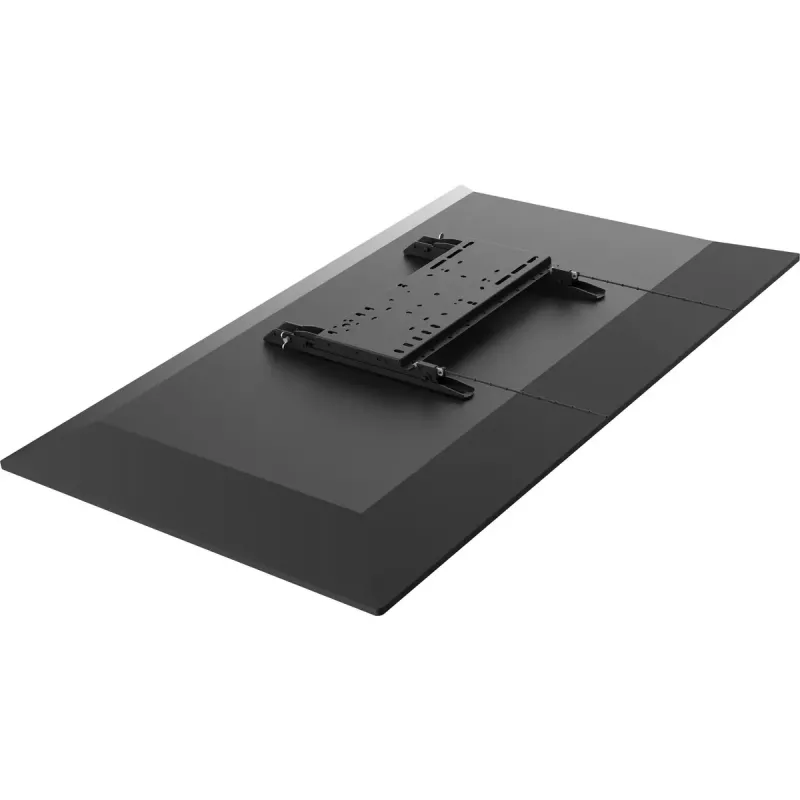

Attach the wall plate to a suitable load-bearing surface using appropriate fasteners (not supplied). Fix the vertical arms to the rear of the display using the supplied M5, M6 or M8 bolts matching the display’s VESA pattern, then hang the display onto the horizontal section until it latches. Use the slotted holes to level the mount after fixing. Optional accessories such as the flip-up shelf or Logitech Rally brackets are fitted to the horizontal section or central shelf according to the accessory instructions.

Recommendations

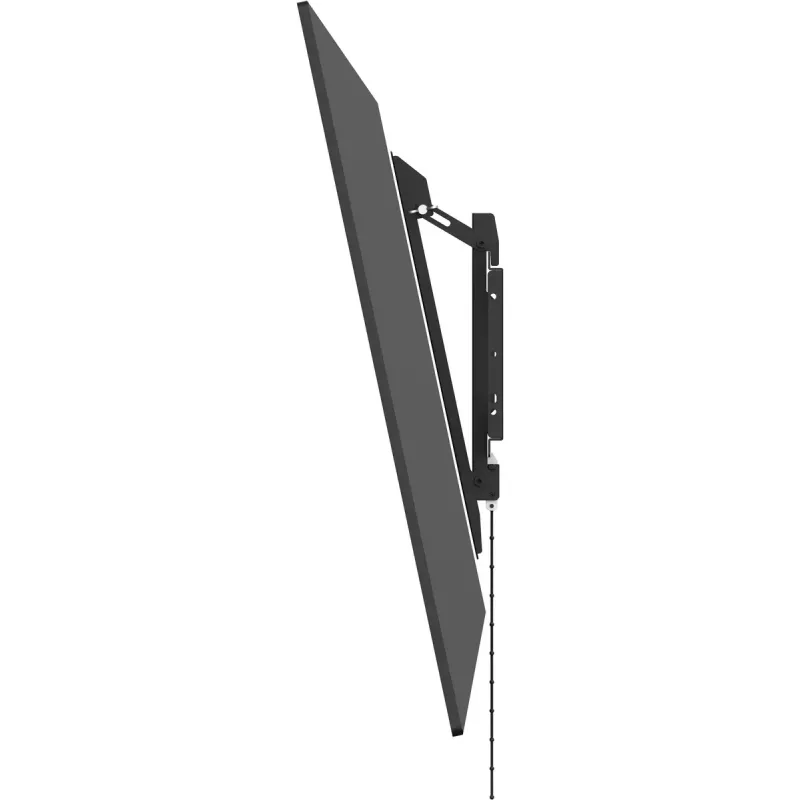

Ensure the wall material and fixings are rated for the combined weight of the mount and display. For high installations consider using the 12° tilt to improve viewing angle. When installing dual side-by-side sections, confirm combined load distribution and secure both horizontals to appropriate fixings.
