DIGITUS CAT6a Keystone Jack - suojattu, työkaluton liitäntä - älykäs kaapelinhallinta - 24 kpl

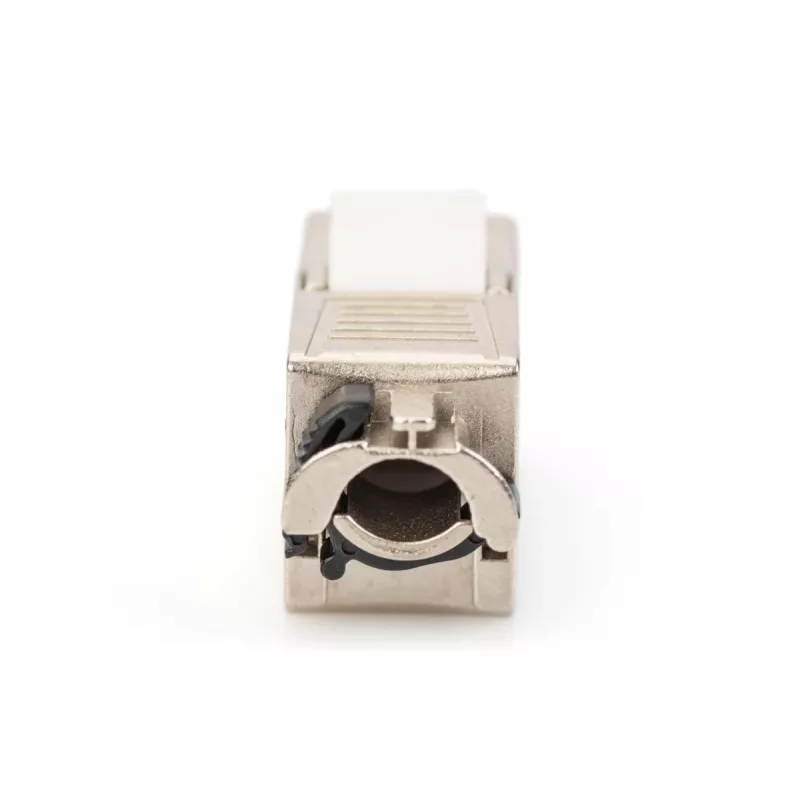

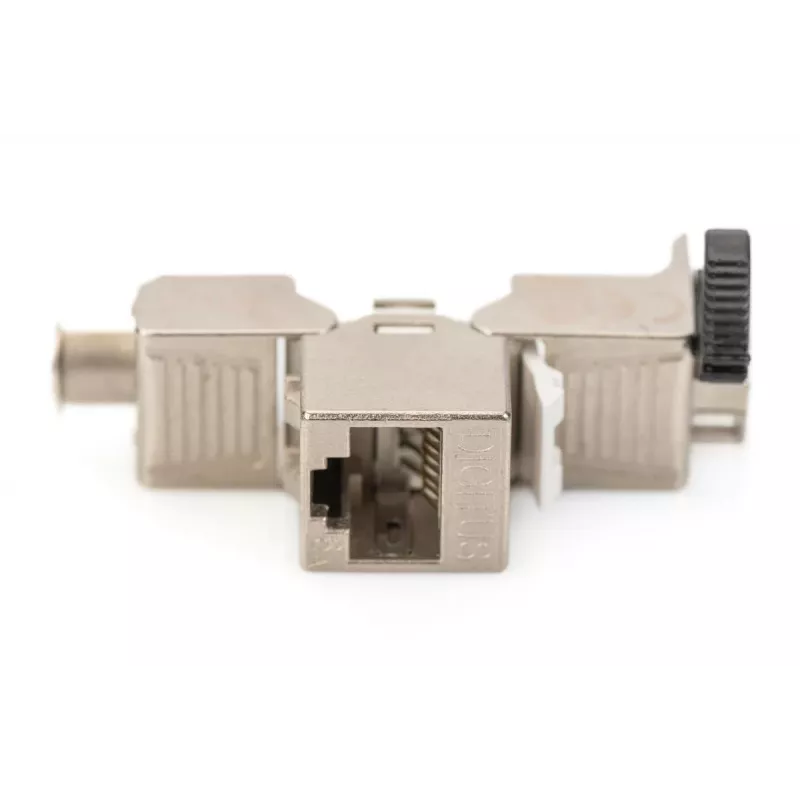

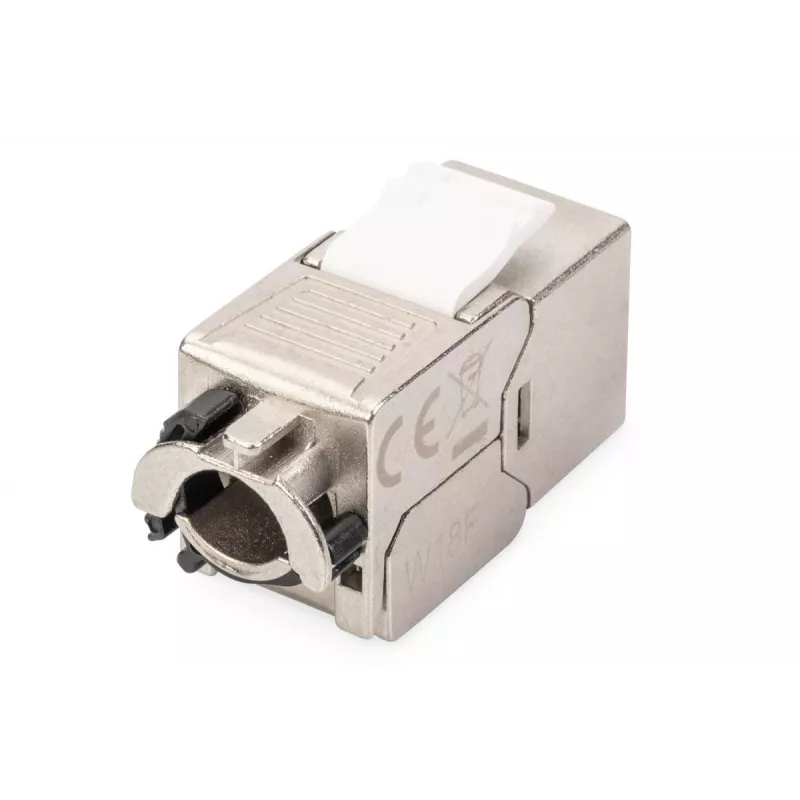

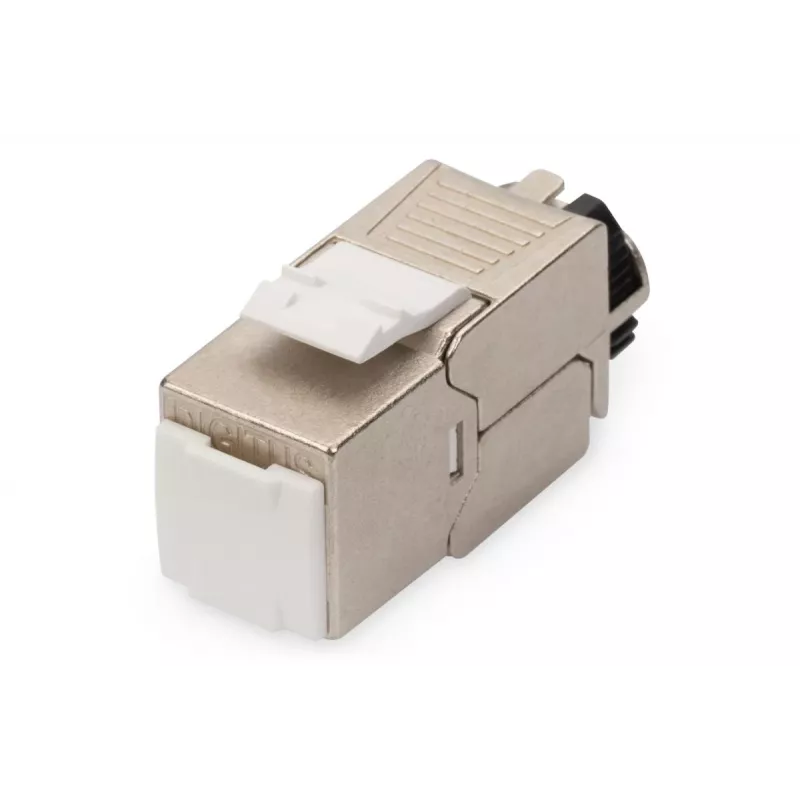

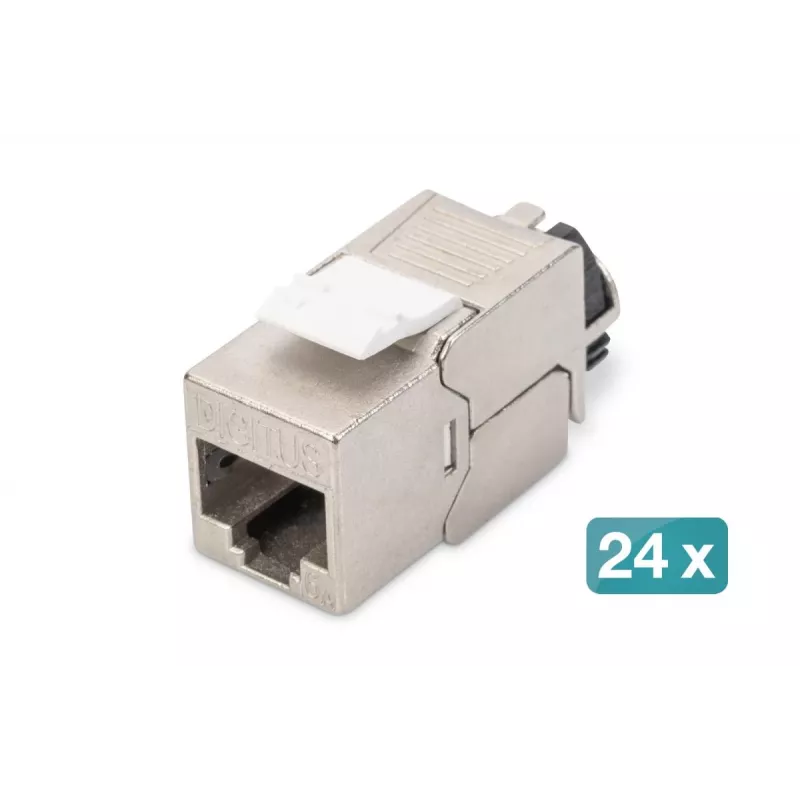

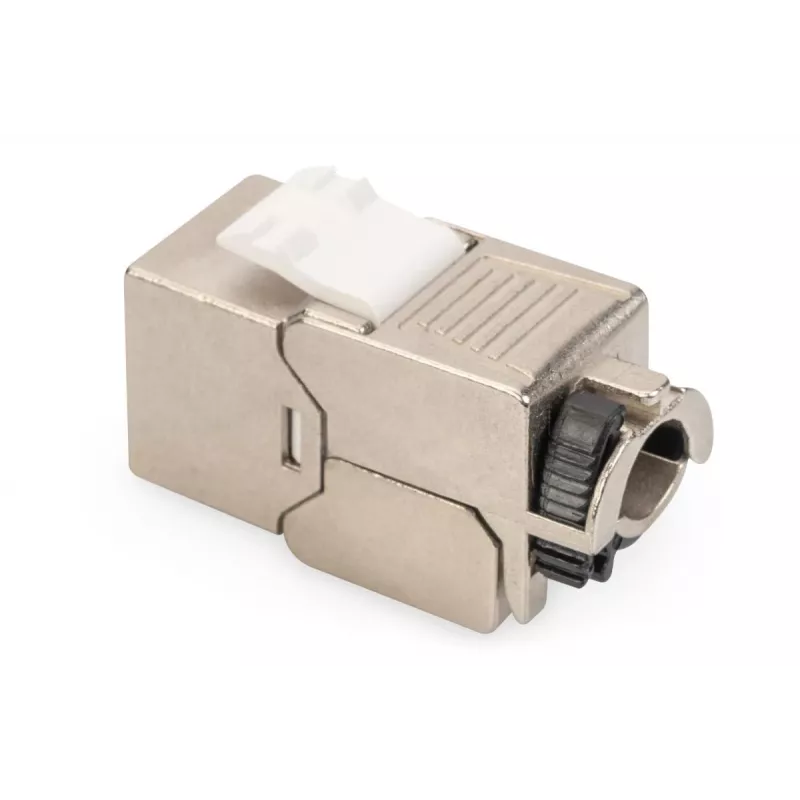

The shielded Cat 6A keystone module set DN-93617-24 from DIGITUS® provides tool-free field installation, 360° shield contact and an intelligent cable manager for secure cable grip and fixation. Designed for use in 19" 1U panels and compatible modular junction boxes, the modules support high-performance Ethernet including PoE standards and include a dust protection cap for the RJ45 jack.

Advantages

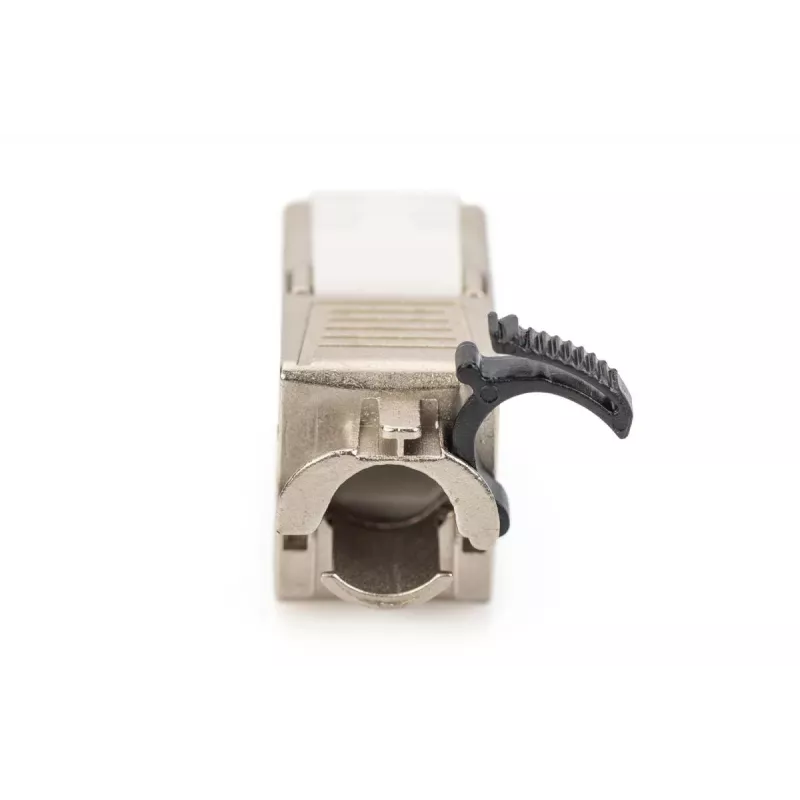

The set offers tool-free assembly with LSA insulation-displacement connectors color-coded to EIA/TIA 568 A&B, multi-design compatibility for distribution panels and junction boxes, and a resealable intelligent cable manager that ensures reliable strain relief. Full 360° shield contact maintains shielding continuity, and the included dust cap protects the RJ45 jack when not in use. GHMT certification confirms compliance with relevant measurements and quality standards.

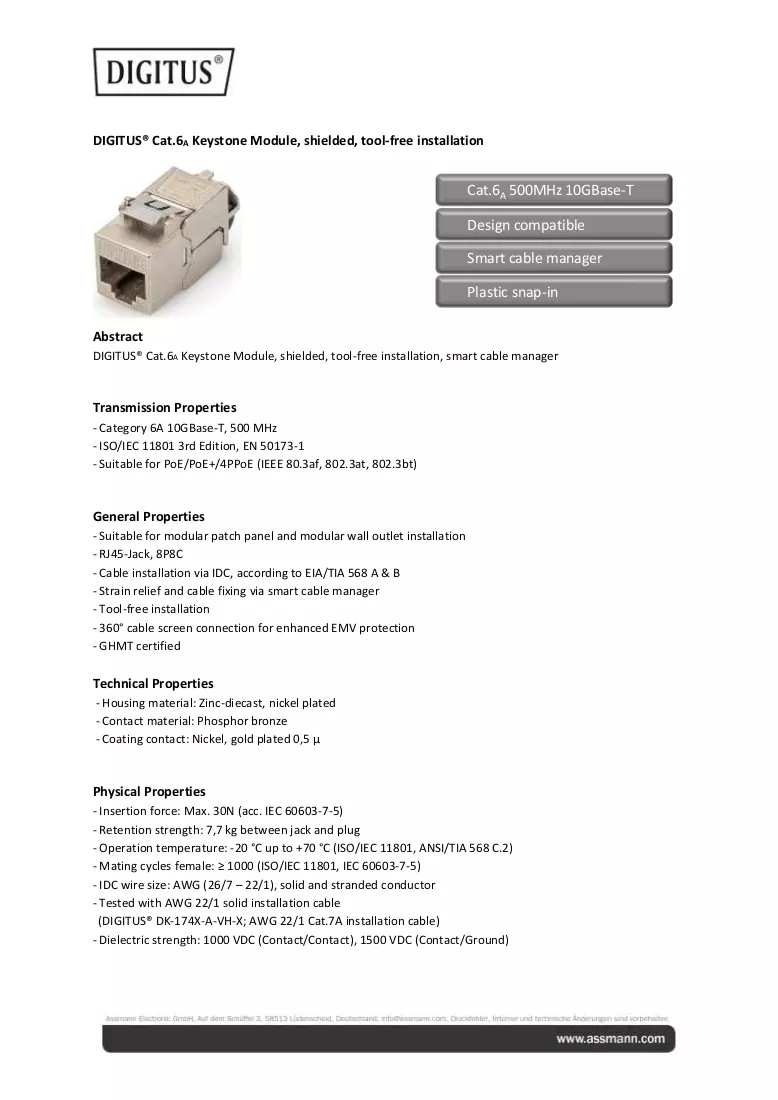

Key specifications

• Category: Cat. 6A shielded keystone module set (DN-93617-24)
• Shielding: 360° shield contact
• Connector type: LSA insulation-displacement connector (color-coded EIA/TIA 568 A&B)

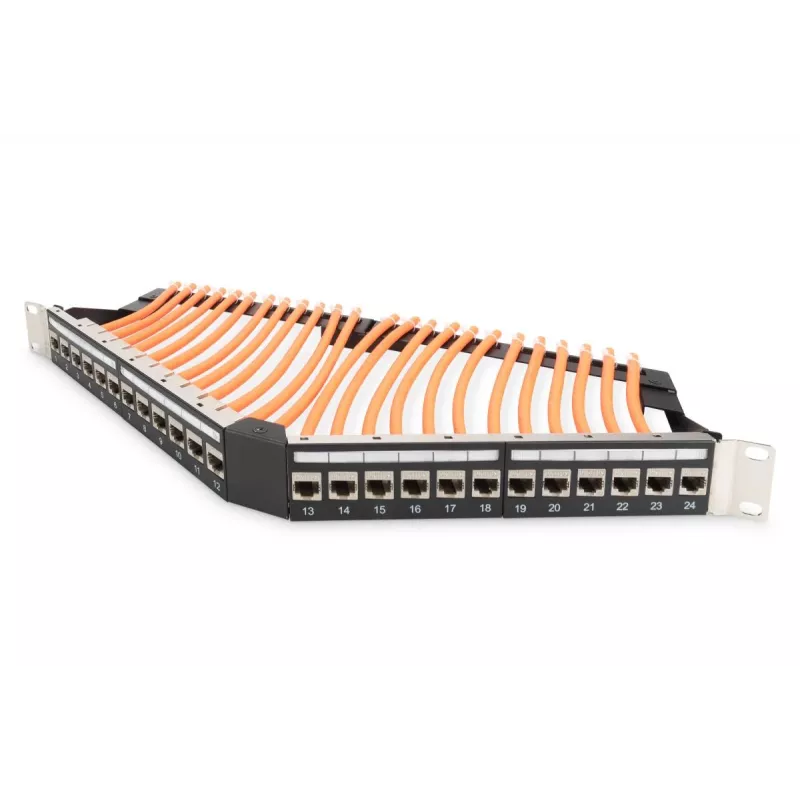

• Installation: Tool-free field installation, suitable for 19" 1U panels and modular junction boxes
• PoE support: PoE / PoE+ / 4PPoE (IEEE 802.3af, 802.3at, 802.3bt)
• Dust protection: Dust cap for RJ45 jack
• Certification: GHMT certified

How to use

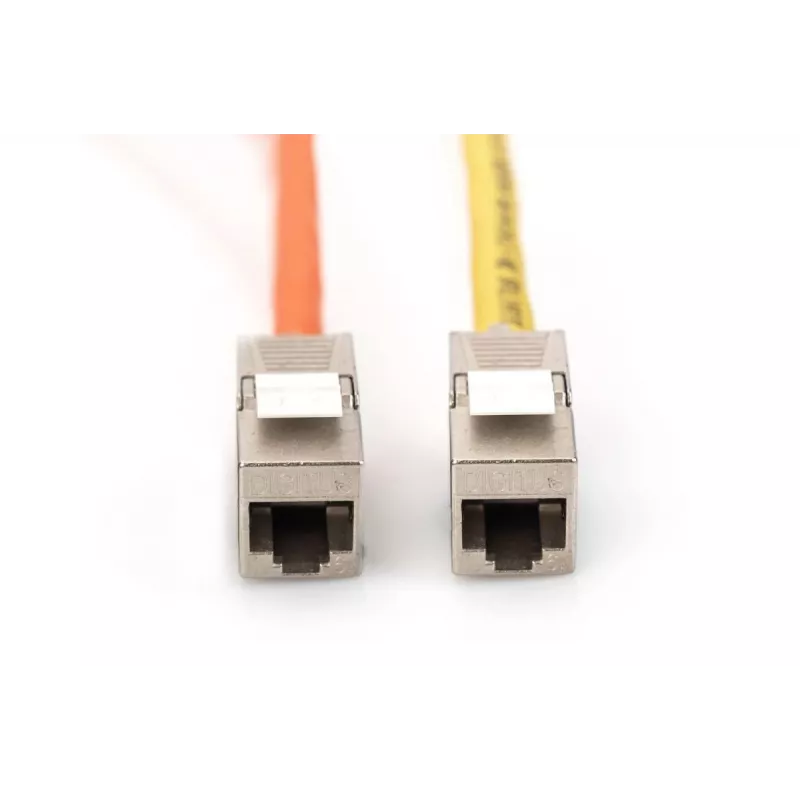

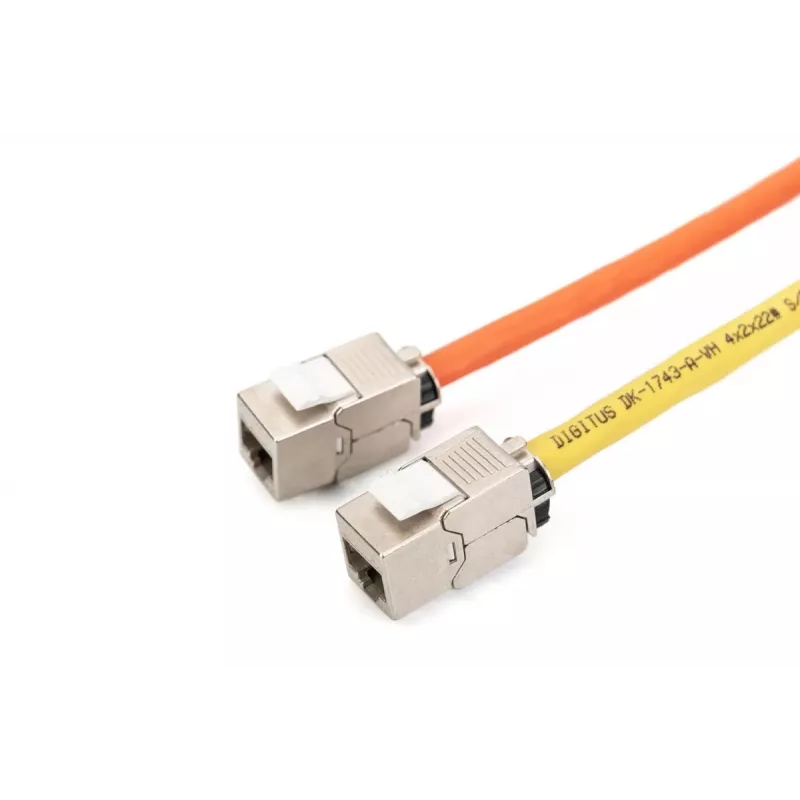

Prepare the cable according to standard stripping lengths, insert conductors into the LSA connector following the color-coded EIA/TIA 568 A or B scheme, and press into the insulation-displacement rail for tool-free termination. Route the shield to ensure 360° contact with the module housing and secure the cable using the intelligent cable manager for strain relief. Mount the module in the 19" 1U panel or compatible junction box and replace the dust cap on unused RJ45 jacks.

Recommendations

For reliable performance, use shielded Ethernet cable of Cat6A class and ensure the shield is continuously connected throughout the installation. Follow EIA/TIA wiring standards and verify connections with appropriate testing equipment after installation.
