Digitus kuituliitin duplex LC–LC SM OS2

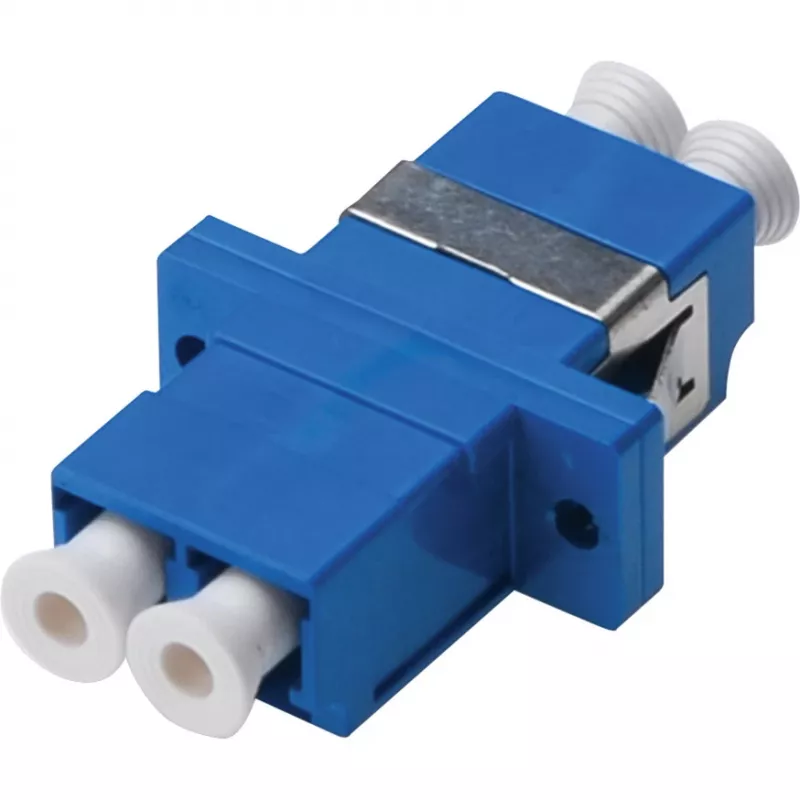

Digitus Fiber optic coupling duplex LC to LC SM OS2 is a compact duplex LC-to-LC adapter designed for single-mode (SM) OS2 fiber connections. With dimensions of 29 mm width, 9 mm depth and 13 mm height, it is intended for installation in splice boxes, patch panels and junction boxes and provides a space-saving interface for high-speed data transmission in FTTH, data centers and telecommunication networks.

Advantages

The coupling uses a ceramic sleeve to ensure precise alignment and low insertion loss, delivering stable and consistent optical performance. It is built for robust, long-term use in splice housings and includes dust caps to protect ferrules during storage and installation. Its compact design simplifies installation and maintenance while providing reliable signal transmission.

Suitable for

• FTTH installations
• Data centers and server rooms
• Telecommunication networks
• Splice boxes, patch panels and junction boxes

Key specifications

• Type: Duplex LC to LC coupling
• Fiber: Single-mode (SM) OS2
• Sleeve material: Ceramic
• Dimensions: 29 mm (W) x 9 mm (D) x 13 mm (H)
• Brand: DIGITUS
• MPN: DN-96007-2
• EAN: 4016032501503

How to use

Insert the duplex LC connectors into the adapter ports ensuring correct orientation and full seating. Mount the coupling into the splice box, patch panel or junction box according to the enclosure’s mounting method. Use the supplied dust caps to protect the ferrules when the coupling is not in use. Perform standard optical loss tests after installation to verify connection quality.

Recommendations

Store and install the coupling in a clean environment, avoid touching the ceramic sleeve and ferrules, and always use dust caps when connectors are disconnected. Verify connector cleanliness with appropriate inspection tools before mating to minimize insertion loss.
