DIGITUS KVM-kytkin, 2x1 DP, DP/HDMI Out, USB 4Kx2K@60Hz

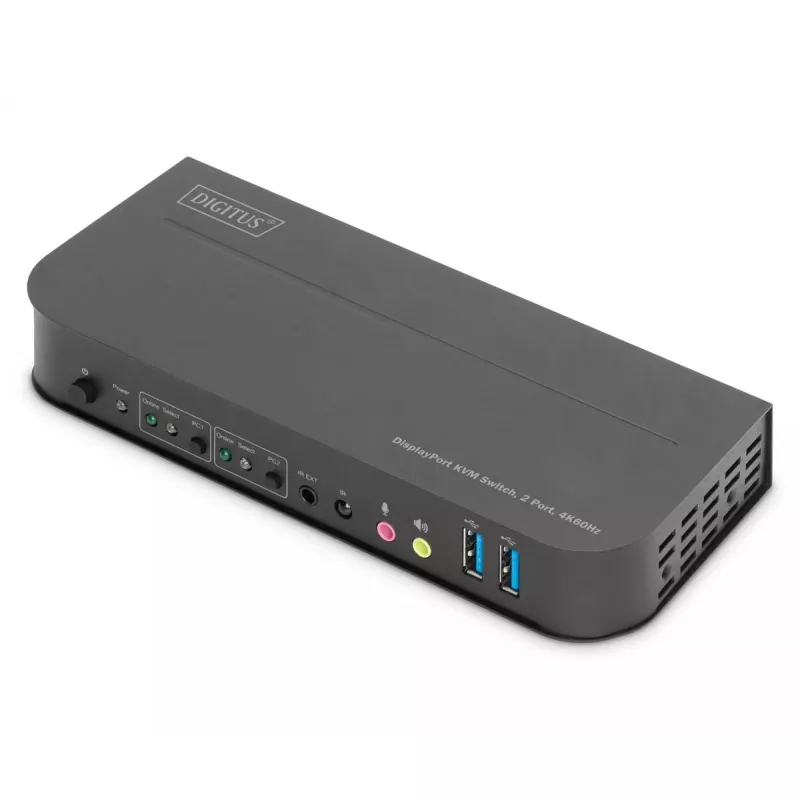

The KVM Switch Digitus DS-12850 2-Port 4K60Hz lets you operate two computers with a single USB keyboard and mouse while keeping a single monitor, speaker and microphone setup. It supports 4K at 60 Hz and offers both DisplayPort and HDMI output options, two USB 3.0 ports for shared peripherals, LED status indicators and a compact metal housing with optional wall mounting.

Advantages

The switch enables quick switching between two PCs by front-panel button, remote control or keyboard hotkey without reconnecting cables. It includes an external IR receiver for remote operation when the unit is out of sight, supports HDMI 2.0, DisplayPort 1.2, HDCP 2.2, HDR and FreeSync, and provides integrated audio switching for microphone and speaker connections. Two front USB 3.0 ports allow sharing of storage devices or other USB peripherals between both computers. Plug-and-play operation requires no driver installation.

Suitable for

• Workstations that require a single keyboard/mouse for two PCs
• Environments needing 4K@60Hz video switching (e.g., video editing, CAD, office multitasking)
• Setups where audio and USB peripherals must be shared between systems
• Mounting in compact or wall-mounted installations

Key specifications

• Brand: DIGITUS, Model: DS-12850
• Controlled computers: 2
• Keyboard/mouse ports: USB

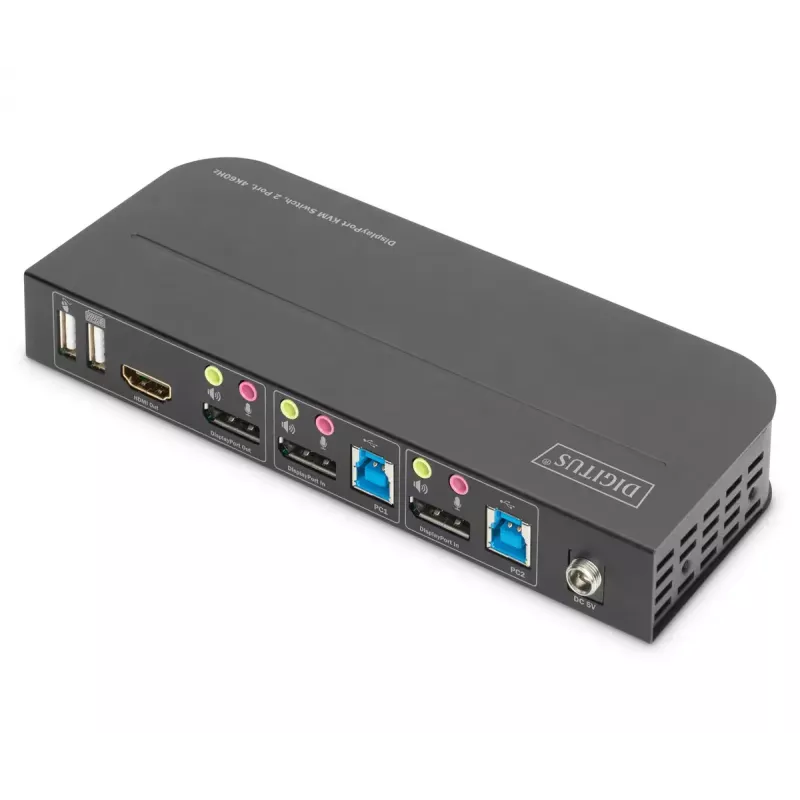

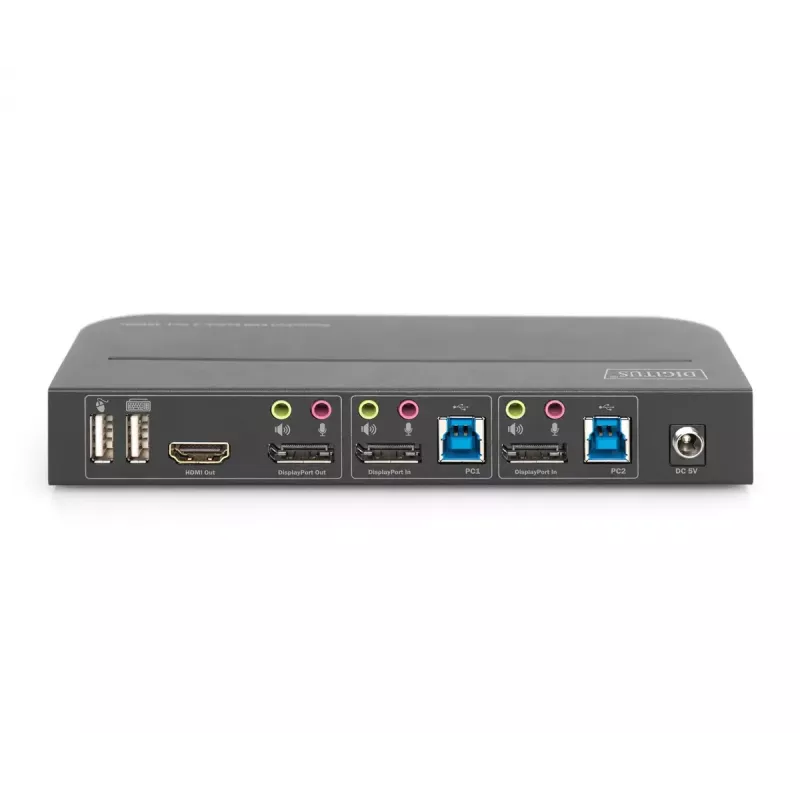

• Video outputs: HDMI and DisplayPort (supports HDMI 2.0 / DP 1.2)
• Resolution support: up to 4K @ 60 Hz
• Audio: microphone and speaker switching
• Front USB: 2 × USB 3.0 ports
• Compliance: HDCP 2.2, HDR, FreeSync compatible
• Housing: metal, dimensions 178 × 75 × 29 mm, weight 0.3728 kg

How to use

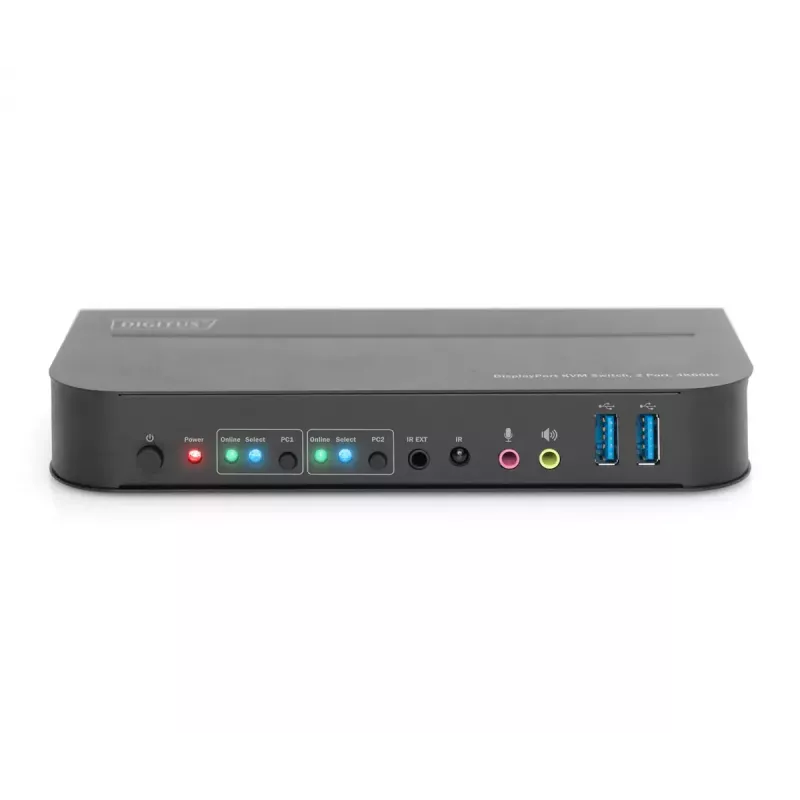

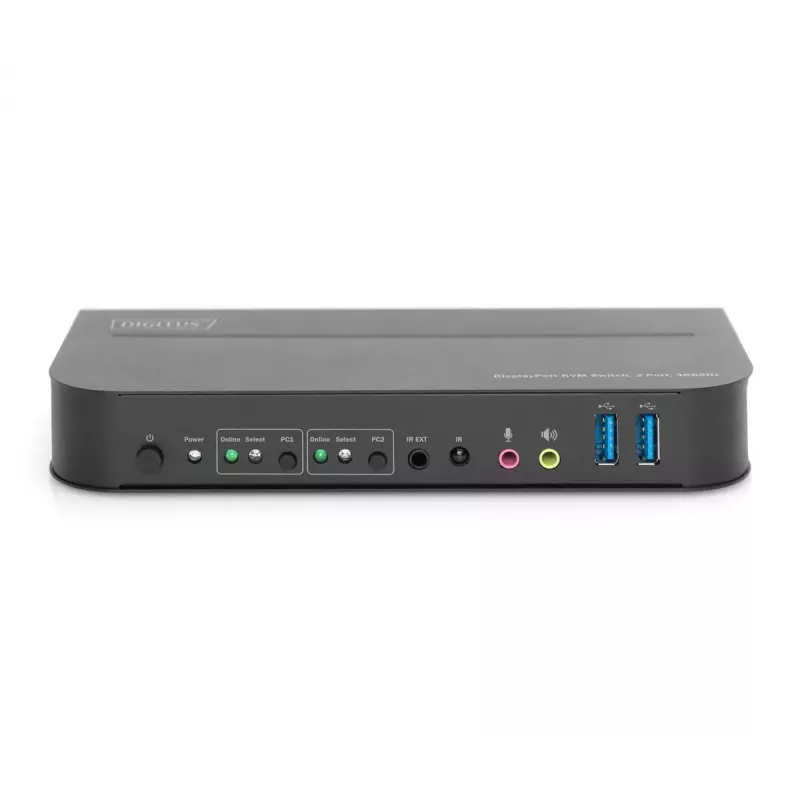

Connect each computer to the KVM switch using the appropriate DisplayPort or HDMI video cables and USB connections for keyboard and mouse. Attach a single monitor to the switch’s output, connect microphone and speaker lines if audio switching is needed, and optionally plug USB devices into the front USB 3.0 ports. Use the front-panel button, the supplied remote control (with external IR receiver) or a keyboard hotkey to toggle control between the two connected computers. The LEDs on the front panel indicate the active connection and status.

Recommendations

For stable 4K@60Hz performance use high-quality HDMI 2.0 or DisplayPort 1.2 cables and ensure source GPUs and display support the chosen resolution and HDCP version. Place the external IR receiver within line of sight of the remote control if the KVM switch is installed out of direct range.
