DIGITUS modulaarinen KVM-kytkin 8-porttinen modulaariselle KVM-konsolille

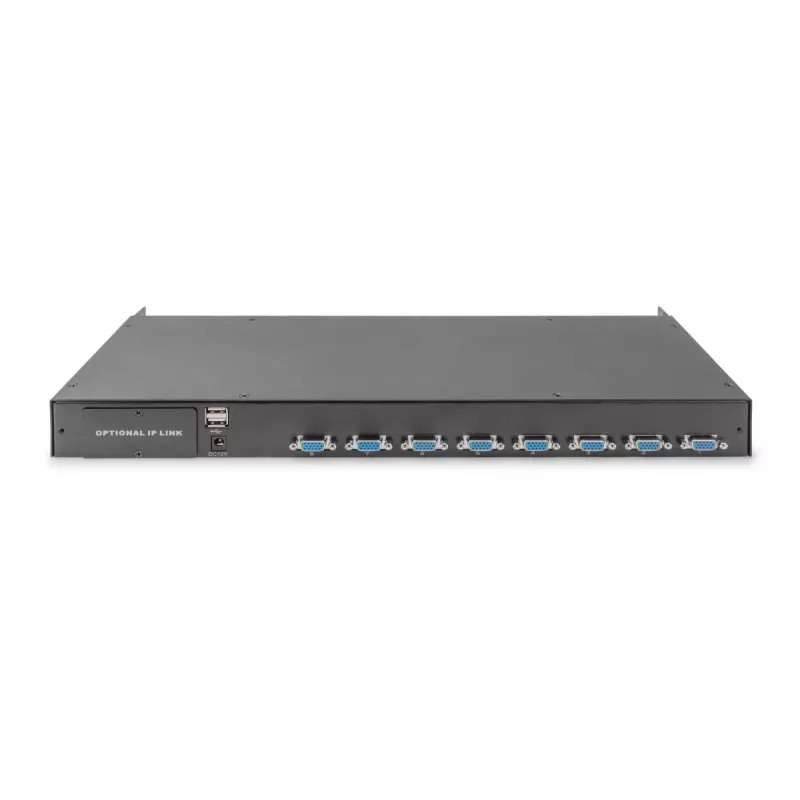

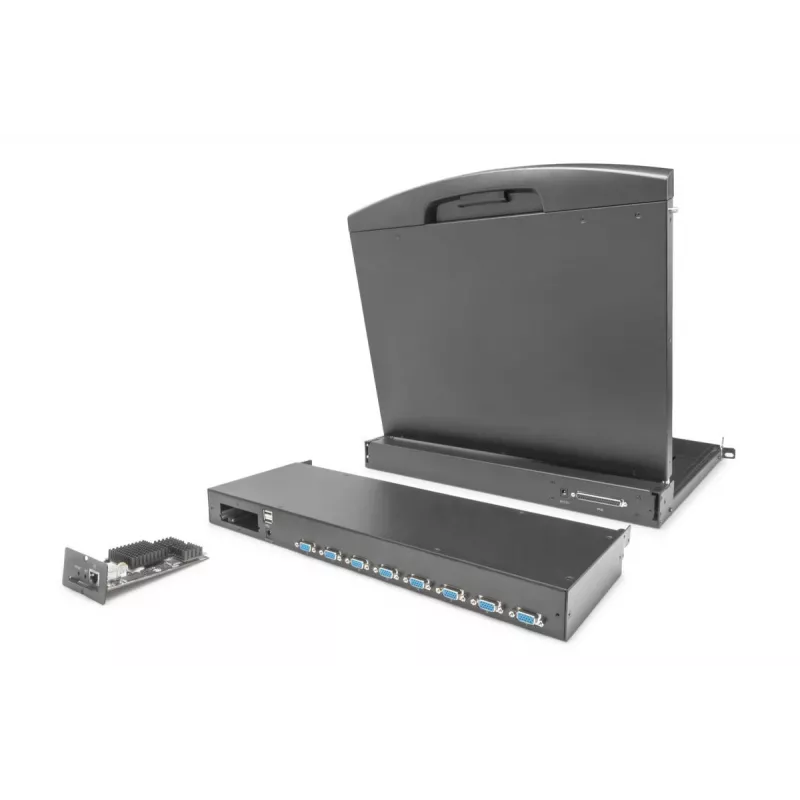

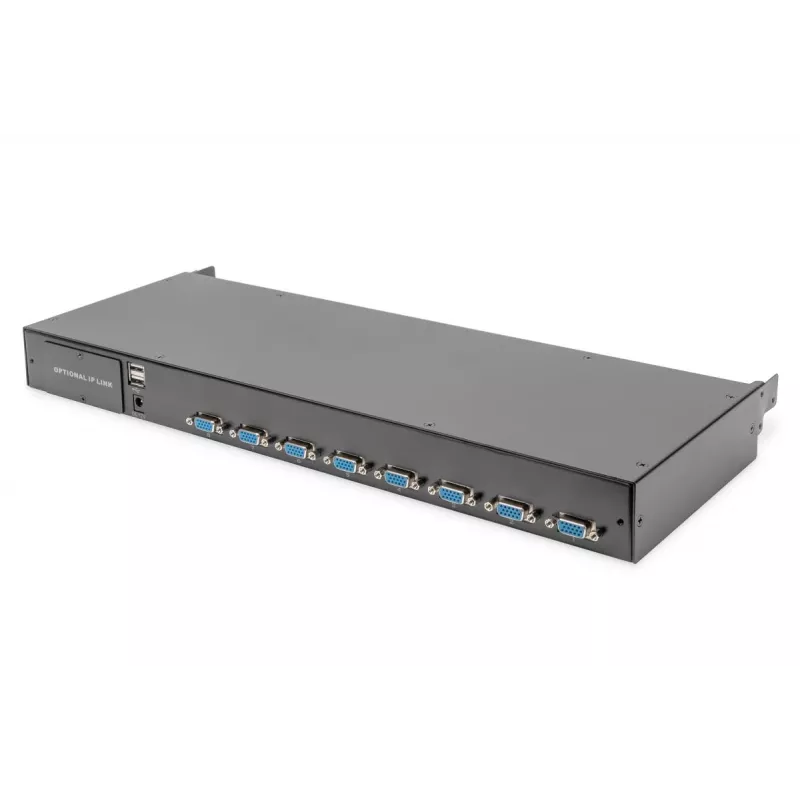

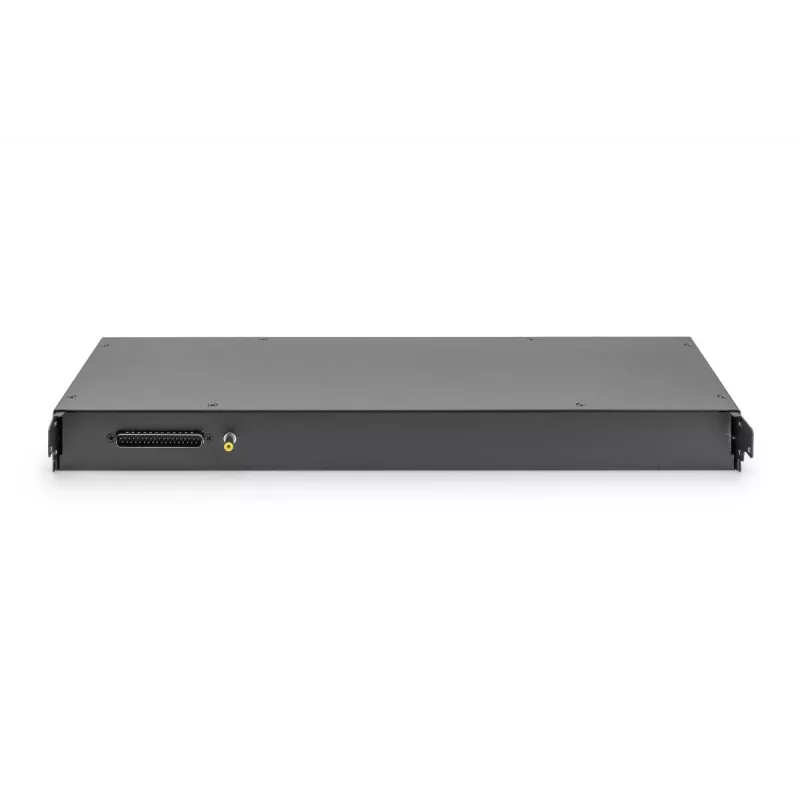

The DIGITUS Modular KVM switch allows flexible administration of a server rack by providing connection and control for up to eight servers from a single console. Housed in a space-saving 1U casing, the unit supports USB or PS/2 keyboard and mouse connections and VGA video output. For operation it requires a DIGITUS 17" or 19" modular console, a keyboard and the corresponding cable set. Optional modules with IP functionality enable remote browser-based access over an existing network connection.

Advantages

The modular design enables custom configurations and later expansion or conversion of the KVM switch to match changing requirements, offering future-proof flexibility. The compact 1U form factor saves rack space, while the availability of optional IP-enabled modules allows both local and remote administration. Standard USB and VGA interfaces ensure compatibility with common server hardware.

Suitable for

• Small and medium-sized server rooms
• Racks requiring space-saving 1U components
• Environments where local and optional remote console access is needed

Key specifications

• Model: DIGITUS modular KVM switch (MPN DS-72213, EAN 4016032447603)
• Number of controlled computers: 8
• Keyboard port type: USB (PS/2 supported on modules)
• Mouse port type: USB
• Video port type: VGA
• Scan interval: 5.90 seconds
• Dimensions (W×D×H): 148 × 445 × 45 mm (1U)
• Weight: 3.32 kg
• Colour: Black

How to use

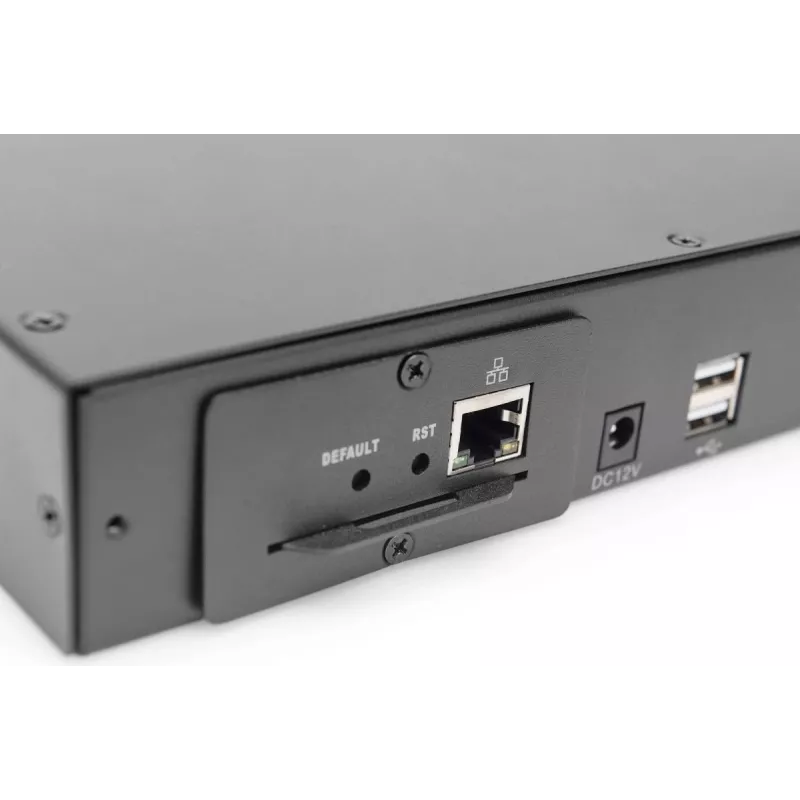

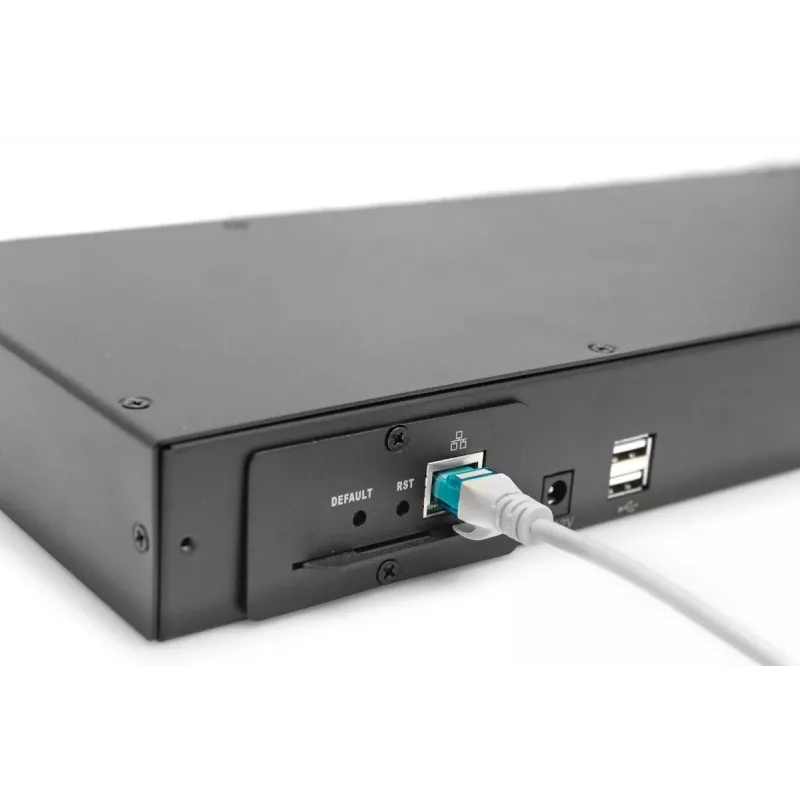

Mount the 1U KVM switch in a standard rack and connect each server to the corresponding module using the supplied KVM cables (USB/PS/2 for keyboard and mouse, VGA for video). Attach the DIGITUS modular console (17" or 19") and connect the keyboard and mouse. Power on the console and the switch; use the switch controls or the cycle/selection function to change between connected servers. If an IP module is installed, configure network settings through the module interface to enable remote browser-based access.

Recommendations

Use the DIGITUS modular KVM switch with the recommended DIGITUS 17" or 19" modular console and original cable sets to ensure full functionality. For remote administration, install the optional IP module and secure network access with appropriate authentication and firewall rules.
