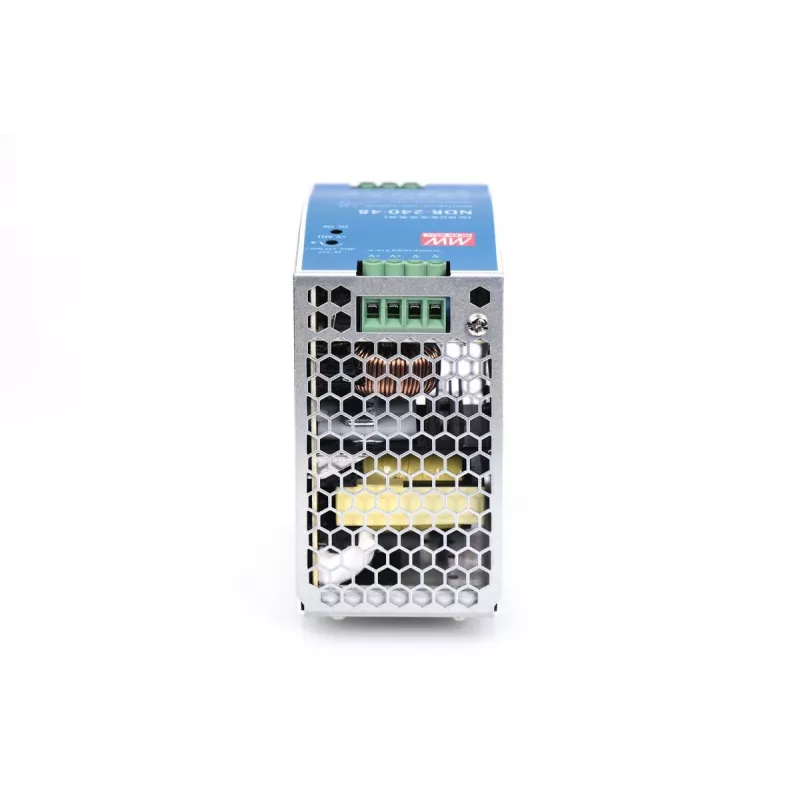

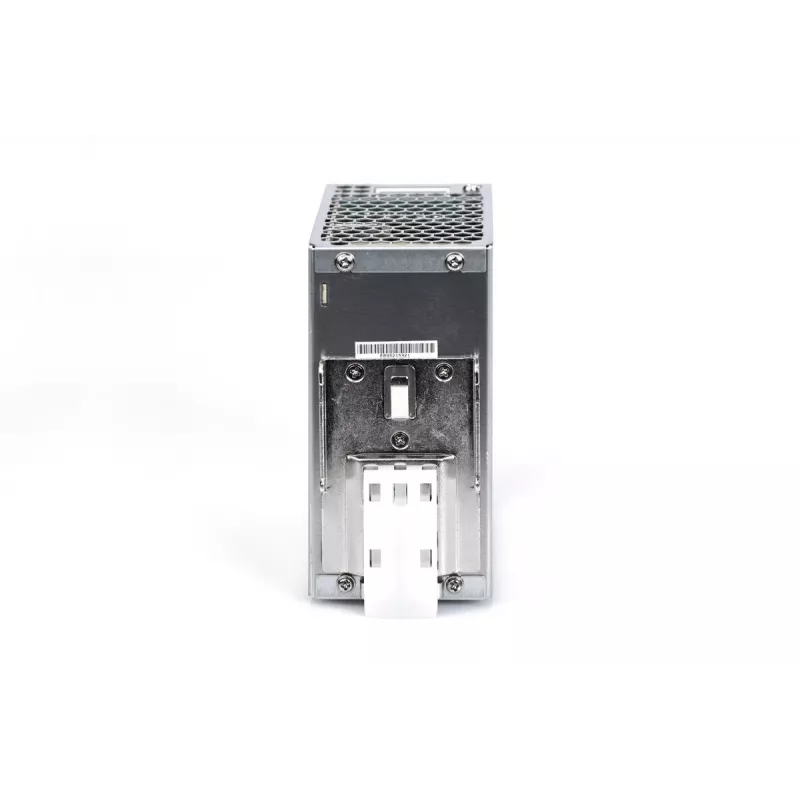

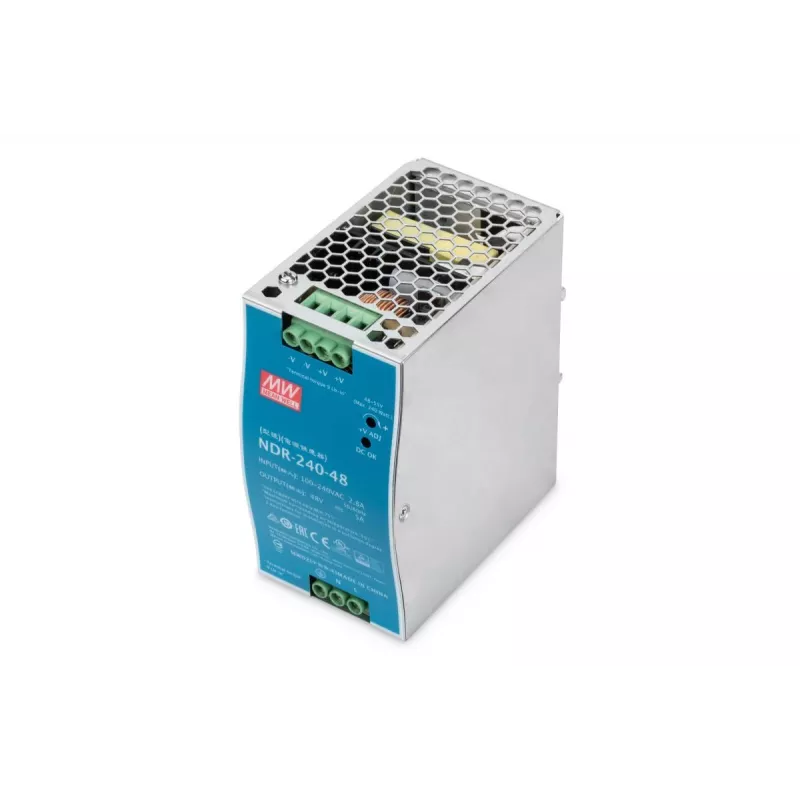

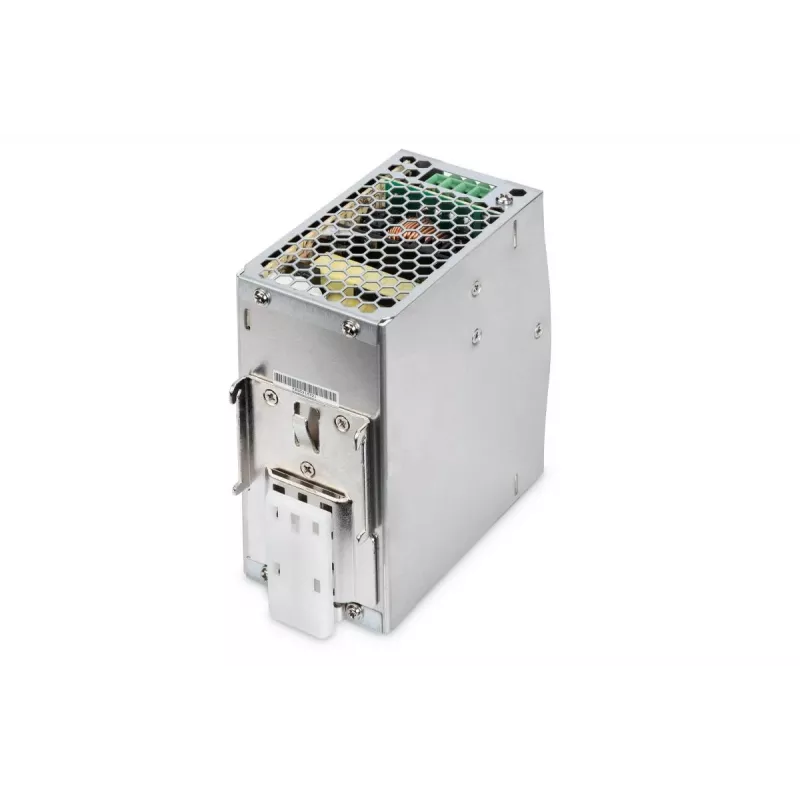

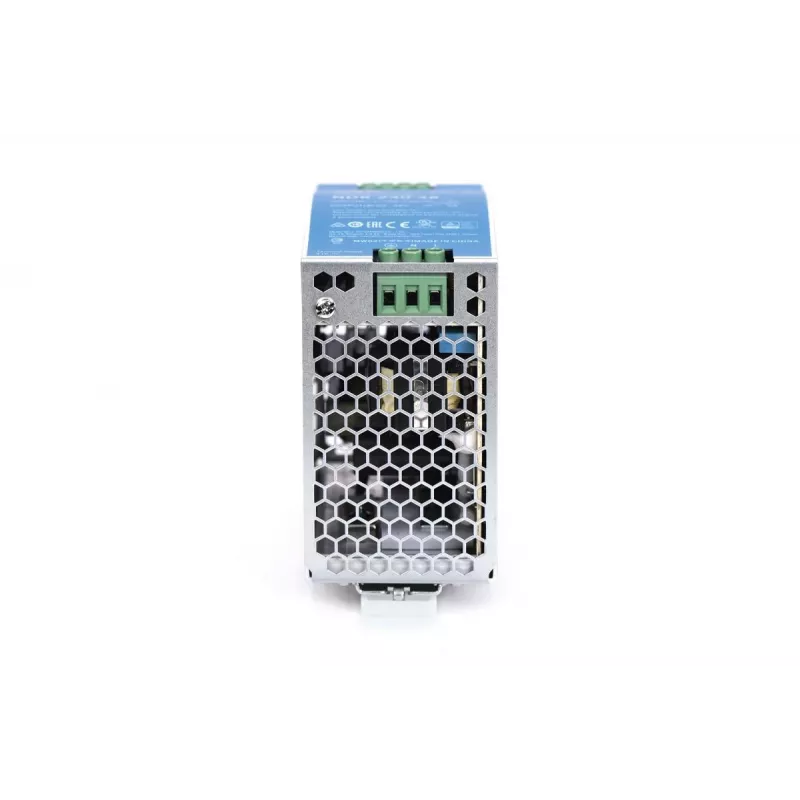

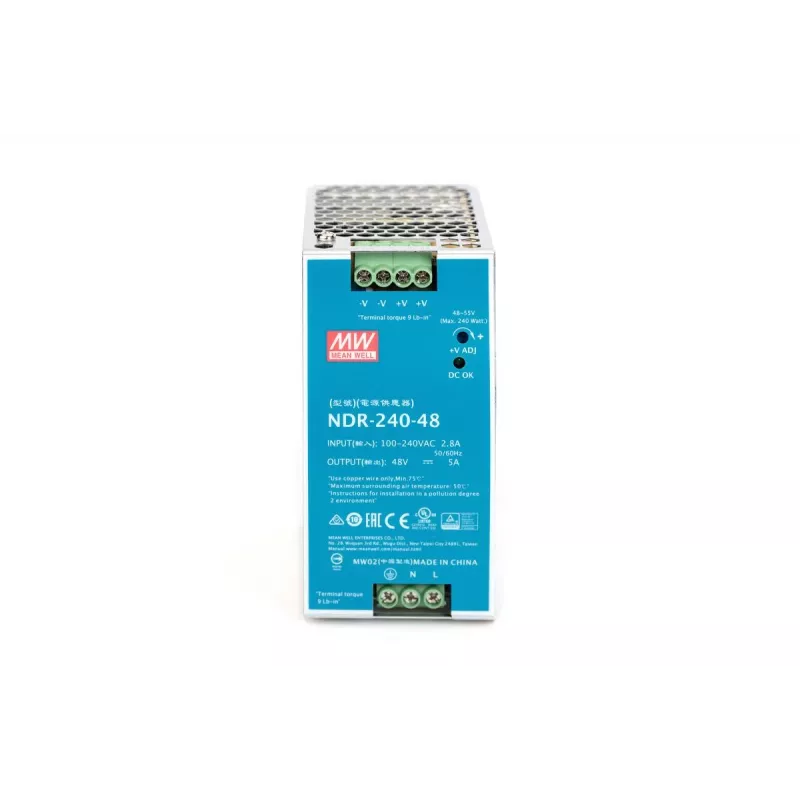

DIGITUS teollisuusvirtalähde 48V DC, 240W AC-DC, metallikotelo, DIN-kiskokiinnitys

Compact DIN rail power supply with 48V DC output and 240W capacity, designed for industrial installations. The DIGITUS DN-PWR24048 accepts a wide AC input range from 90V to 264V AC and operates at 47–63Hz. Its slim metal housing (58 mm width) allows mounting on TS-35/7.5 or TS-35/15 rails and improves heat dissipation for continuous operation in demanding environments.

Advantages

The unit delivers up to 240W at 48V DC with a working efficiency around 88% and supports operation in a temperature range from -20°C to 60°C. Built-in protections include overload, short-circuit, over-voltage and over-temperature safeguards. Its compact size and durable metal enclosure make it suitable for space-limited industrial control cabinets.

Suitable for

• Industrial control cabinets and automation panels
• Network and communication equipment requiring 48V DC
• DIN rail mounting applications on TS-35/7.5 or TS-35/15

Key specifications

• Brand: DIGITUS
• Model: DN-PWR24048
• Output voltage: 48V DC
• Output power: 240W
• AC input: 90–264V AC, 47–63Hz
• Efficiency: approx. 88%
• Operating temperature: -20°C to 60°C
• Mounting: DIN rail TS-35/7.5 or TS-35/15
• Width: 58 mm
• Protections: overload, short-circuit, over-voltage, over-temperature
• MPN: DN-PWR24048
• EAN: 4016032454908

How to use

Mount the power supply on a TS-35/7.5 or TS-35/15 DIN rail and secure it according to the enclosure instructions. Connect the AC mains input (90–264V AC, 47–63Hz) to the input terminals and connect the 48V DC output to the load, respecting polarity. Verify connections and grounding before powering on. Allow for adequate ventilation around the metal housing to maintain operating temperature within -20°C to 60°C.

Recommendations

For reliable operation, size the power supply to provide at least 20% headroom above the expected load, ensure proper ventilation in enclosed cabinets, and protect downstream equipment with appropriate fuses or circuit breakers. Perform installation and maintenance following local electrical regulations.
