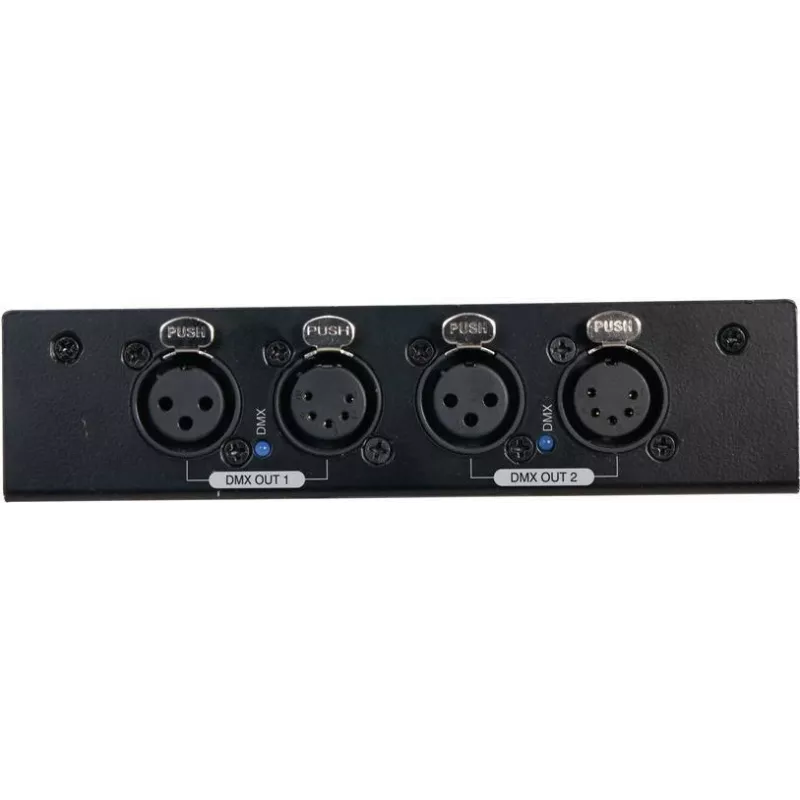

DMX-jakaja EUROLITE DMX Split 2 3/5-pin — 1 tulo 2 lähtöön, tukee 3-pin- ja 5-pin-DMX

EUROLITE DMX Split 2 3/5-Pin is a compact DMX splitter designed to distribute one DMX input signal to two electrically isolated outputs. The unit accepts both 3-pin and 5-pin DMX connectors, ensuring compatibility with a wide range of lighting fixtures and controllers. It maintains signal integrity across multiple fixtures, reduces line loading and potential interference, and is intended for small to medium-sized stage, club, and event lighting installations.

Advantages

The splitter provides galvanic isolation between the input and each output to prevent ground loops and signal distortion when multiple devices are connected. Its compact housing and clear connector layout make it easy to integrate into existing rigs. Support for both 3-pin and 5-pin connectors increases flexibility and reduces the need for adapters. The device helps maintain reliable DMX communication and simplifies cabling for multi-fixture setups.

Suitable for

Key specifications

How to use

Connect the DMX controller output to the splitter’s input using an appropriate 3-pin or 5-pin DMX cable. Use separate DMX cables to connect each isolated output to different fixtures or lighting chains. Power the unit according to the manufacturer’s instructions and verify LED indicators to confirm correct operation. When extending runs, use proper DMX cabling and terminators at the end of each DMX chain as required to ensure stable signal transmission.

Recommendations

Place the splitter close to the controller to minimize the length of the single upstream DMX run; route separate downstream runs to their respective fixture groups. Use the unit to separate different lighting zones or to reduce loading on long DMX runs. Avoid using non-DMX cables and ensure connectors are secure to prevent intermittent contacts.
