DNA PROFESSIONAL DNA EXA1 SI jatkovarsi Gridille

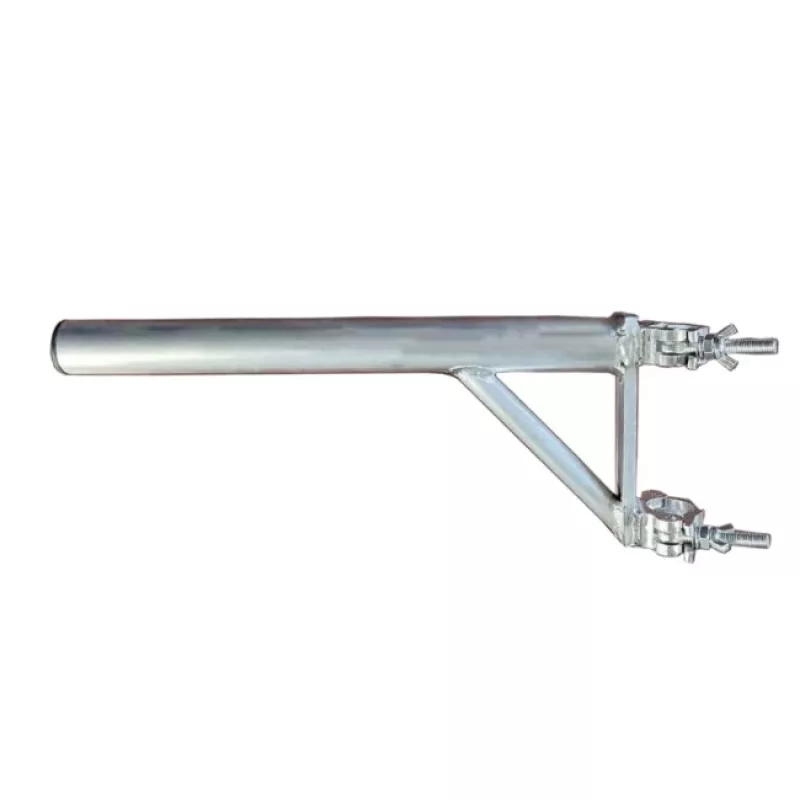

The DNA PROFESSIONAL DNA EXA1 SI Extension Arm for Grid is a robust and reliable solution for extending lighting fixtures, cameras, or accessories from grid and truss systems. Designed for professional stage, studio, and event rigging, this extension arm offers a secure and adjustable mounting platform with a maximum load capacity of 40 kg.

Advantages

Heavy-duty steel construction with black powder coat finish ensures durability and corrosion resistance. The integrated locking clamp mechanism provides secure attachment to tubes or truss up to 50 mm diameter, while the 28 mm TV spigot (Junior Pin) output allows easy mounting of compatible equipment. The 300 mm effective extension length offers flexibility in positioning.

Suitable for

• Mounting lighting fixtures on grid or truss systems
• Attaching cameras or accessories in studio and event setups
• Rigging applications requiring a sturdy extension arm

Key specifications

• Product Type: Lighting Grid Extension Arm
• Mounting Type (Input): Heavy-Duty Grid Clamp
• Mounting Compatibility (Input): Tubes/Truss up to 50 mm Diameter
• Mounting Type (Output): 28 mm TV Spigot (Junior Pin)
• Material: Steel
• Finish: Black Powder Coat
• Effective Extension Length: 300 mm
• Maximum Load Capacity: 40 kg
• Spigot Diameter: 28 mm (1-1/8 inch)
• Clamp Jaw Opening: 10 mm - 50 mm
• Construction: Welded Steel for Durability
• Intended Use: Mounting lighting fixtures, cameras, or accessories to grid/truss systems

Recommendations

For optimal safety and performance, ensure the clamp is securely tightened and the load does not exceed 40 kg. Always use appropriate safety cables when rigging overhead.
