DoorBird IP Video Indoor Station A1104T ruostumaton teräs V4A musta

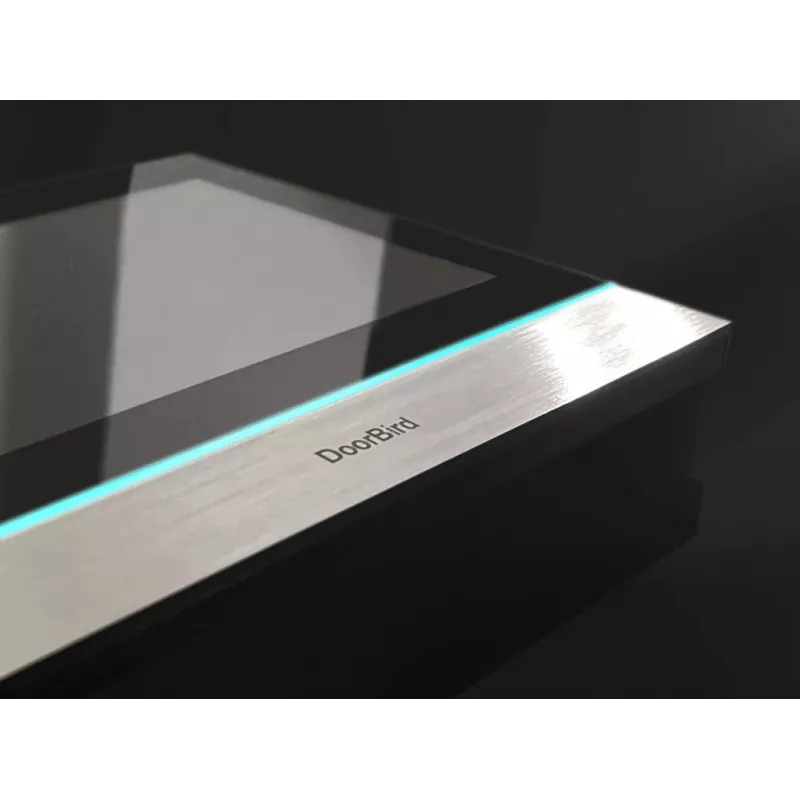

The DoorBird A1104T is a premium IP video indoor station designed for modern access control and intercom systems. Featuring a 7-inch IPS capacitive touchscreen with 1024x600 pixel resolution, it delivers crisp and responsive interaction. The front panel is crafted from brushed stainless steel (V4A), offering durability and a sleek aesthetic. Powered by PoE (IEEE 802.3af Mode A) or optional 15V DC, this wired station supports Fast Ethernet (10/100 Mbps) for reliable communication. It includes two-way audio with echo cancellation and noise reduction, live video streaming, and door opener functionality. The Linux-based operating system ensures stability, while support for protocols like SIP, ONVIF, and RTSP enables integration with various systems. Flush-mount installation is standard, with optional surface-mount housing available.

Advantages

High-quality stainless steel design, responsive capacitive touchscreen, PoE support for easy installation, and robust audio/video features for clear communication.

Suitable for

• Residential and commercial access control
• Integration with DoorBird IP door stations
• Smart home and security systems

Key specifications

• Display: 7 inch (17.8 cm) IPS, 1024x600 pixels, capacitive touch
• Material: Stainless steel V4A front panel
• Connectivity: Fast Ethernet (10/100 Mbps), PoE (802.3af Mode A)
• Audio: Two-way, echo cancellation, noise reduction
• Video: Live stream, door opener function
• Mounting: Flush-mount (surface-mount housing optional)
• Power: PoE or 15V DC (adapter not included)
• Operating temperature: -20 to +50 °C
• Protocols: HTTP, HTTPS, RTP, RTSP, UDP, TCP, SIP, P2P, ONVIF
• Memory: 4 GB Flash, 256 MB RAM

Recommendations

Pair with a compatible DoorBird IP door station for a complete video intercom solution. Ensure PoE switch or injector is available for power and data.
