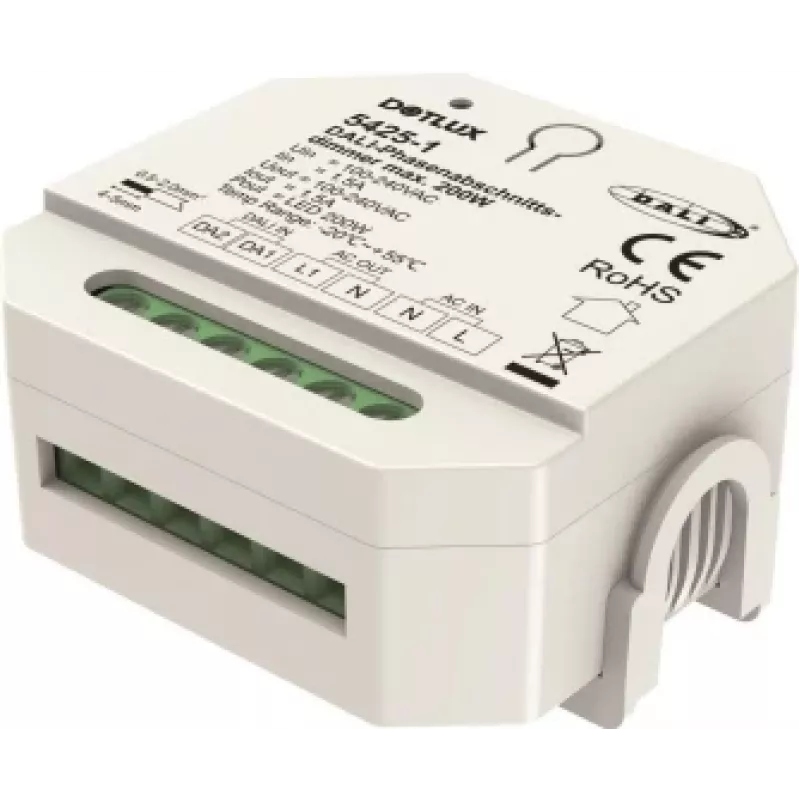

DOTLUX DOT 5425-1 DALI vaihekatkaisuhimmennin max. 200W

Install the DOTLUX DOT 5425-1 in a flush-mounted junction box to dim LED, incandescent, or HV halogen lamps via DALI. It handles up to 200W of LED load and 400W of incandescent/halogen load with trailing edge dimming for smooth, flicker-free control.

Key specifications

• Dimming principle: Trailing edge (phase cut)
• Control interface: DALI
• Max. LED load: 200W
• Max. incandescent/halogen load: 400W
• Input voltage: 220-240V AC, 50/60 Hz
• Dimming range: 0.1% - 100%
• Standby power consumption: <0.5W
• Protection class: IP20
• Operating temperature: -20°C to +45°C
• DALI current consumption: <2mA
• Number of DALI addresses: 1

Why choose it

This dimmer integrates seamlessly into DALI lighting systems, offering precise control and compatibility with a wide range of dimmable lamps. Built-in protection against overload, short circuit, and over-temperature ensures reliable operation.

Ideal use cases

• Residential lighting control
• Commercial and office lighting
• Hospitality environments
• Retrofit projects with DALI systems

Good to know

Designed for flush-mounted installation in standard junction boxes. Suitable for use with dimmable LED lamps, incandescent lamps, and HV halogen lamps.
