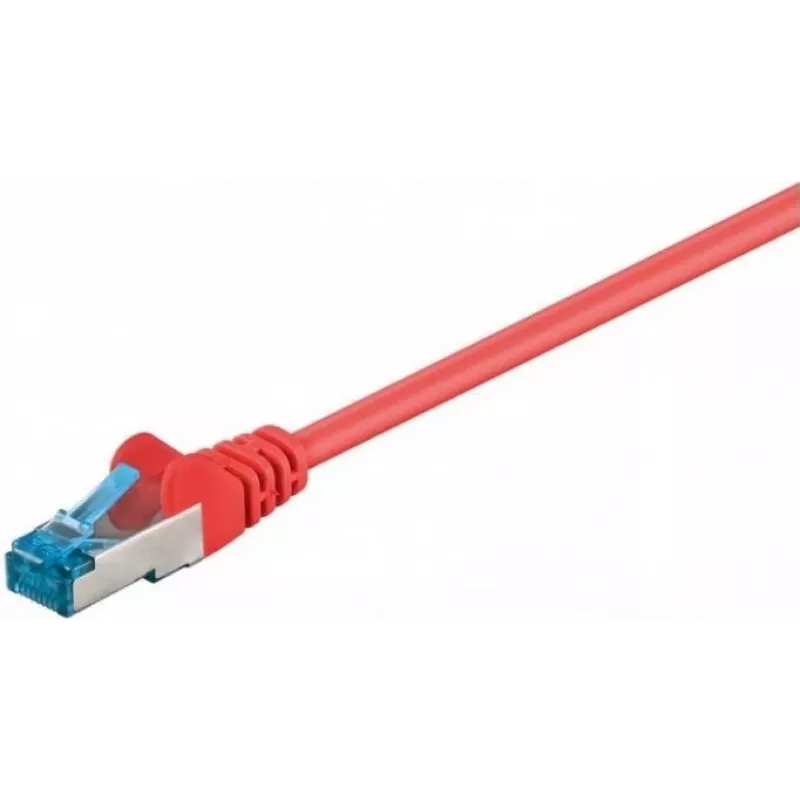

DSIT CAT 6a S/FTP LSOH asennuskaapeli 50 m punainen

Experience 10 Gigabit Ethernet at 500 MHz with the DSIT CAT 6a S/FTP LSOH Network Installation Cable. This 50-meter red cable delivers high-speed, error-free data transmission in demanding network environments. Its S/FTP shielding—each pair foiled plus an overall braid—provides superior immunity to EMI and crosstalk, making it ideal for data centers, enterprise LANs, and PoE++ applications.

Overview

This installation cable features solid copper conductors (23 AWG) for excellent conductivity and signal integrity over long distances. The LSOH (Low Smoke Zero Halogen) jacket meets stringent fire safety standards, emitting minimal smoke and no toxic halogens in the event of a fire. Rated for PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt), it can safely deliver up to 100W to connected devices. The vibrant red jacket aids in quick identification and organization.

What stands out

• Category 6a performance: supports 10GBASE-T up to 100m and 500 MHz bandwidth.
• Robust S/FTP shielding: individual foil per pair plus overall braid for maximum noise rejection.
• Solid bare copper conductors: 23 AWG, ideal for permanent links and PoE efficiency.
• LSOH jacket: low smoke, zero halogen, compliant with IEC 60332-1, IEC 61034, IEC 60754.
• High PoE capability: supports PoE, PoE+, and PoE++ (up to 100W).
• 50-meter length: convenient for structured cabling runs without splicing.

Technical details

• Cable type: Network installation cable (solid conductor)
• Category: CAT 6a
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Conductor: Solid bare copper, 23 AWG
• Number of pairs: 4 twisted pairs
• Jacket: LSOH (Low Smoke Zero Halogen)
• Length: 50 meters
• Colour: Red
• Data rate: 10GBASE-T up to 100m
• Bandwidth: 500 MHz
• Impedance: 100 Ohm
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt) up to 100W
• Fire safety: LSOH compliant with IEC 60332-1, IEC 61034, IEC 60754
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Outer diameter: approx. 7.5 mm
• Operating temperature: -20°C to +60°C

Our verdict

For high-performance 10G networks, the DSIT CAT 6a S/FTP LSOH cable offers exceptional shielding, safety, and PoE++ readiness—a reliable backbone for any enterprise installation.
