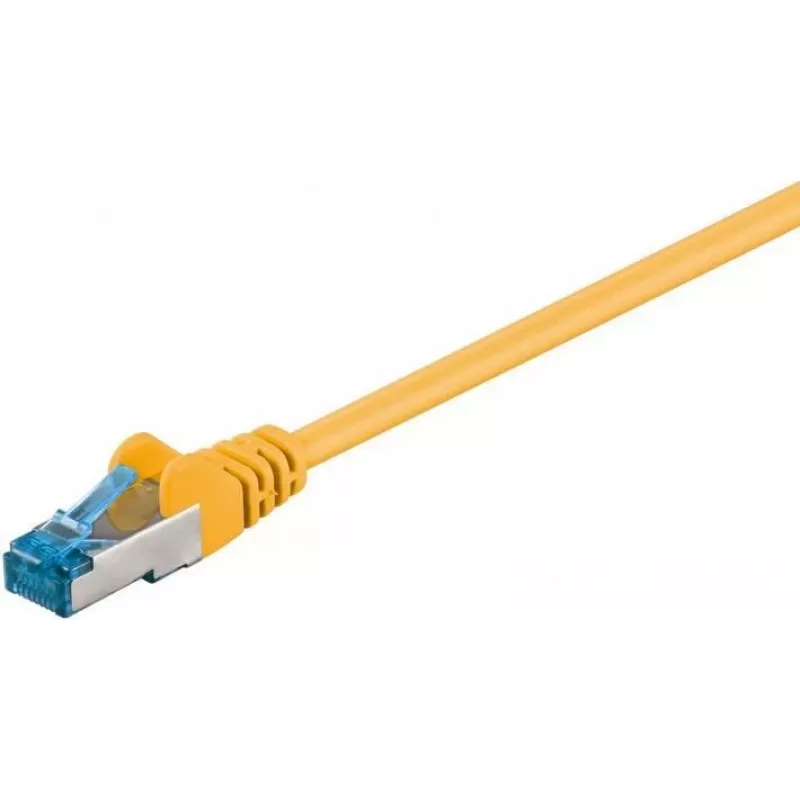

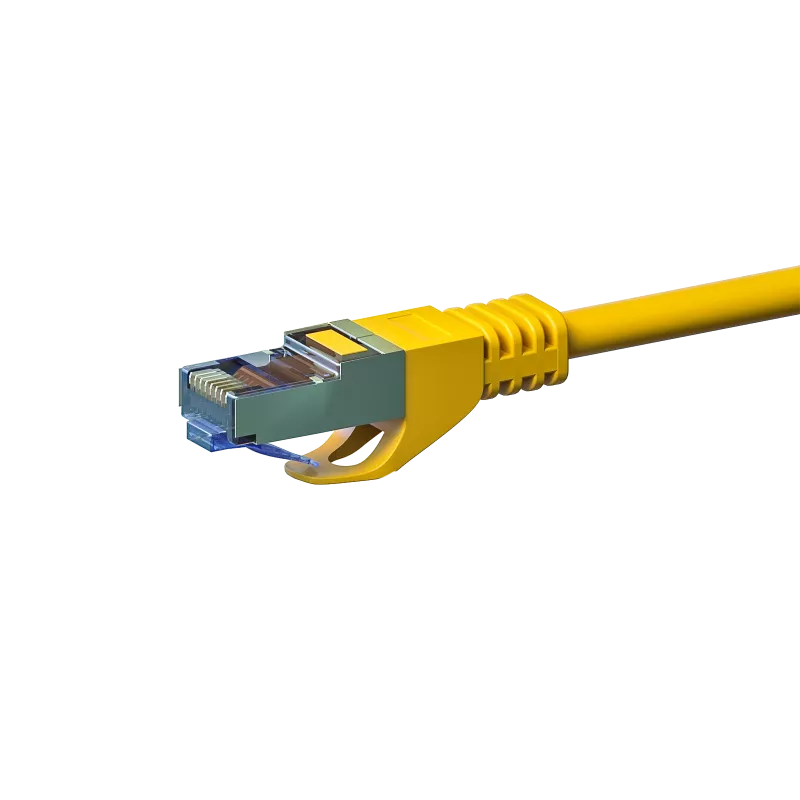

DSIT Cat 6a S/FTP LSOH -patchkaapeli, 5 m, keltainen

For high-density 10 Gigabit Ethernet links where fire safety and signal integrity are non-negotiable, this DSIT Cat 6a patch cable pairs a screened/foiled twisted-pair construction with a low-smoke zero-halogen jacket. The result is a 5-metre yellow cord that suppresses alien crosstalk in crowded racks while meeting strict IEC flame, smoke, and acid-gas requirements.

Highlights

• Cat 6a performance: 10GBASE-T up to 500 MHz bandwidth
• S/FTP shielding: braided screen plus per-pair foil for superior EMI immunity
• LSOH jacket: low smoke, zero halogen for safer installations
• Stranded 26/7 AWG copper conductors for flexibility and durability
• Gold-plated RJ45 plugs with snagless boots, wired to TIA/EIA-568B
• 5-metre length, yellow colour for easy identification

In daily use

This cable is built for data centres, server rooms, and enterprise work areas where 10G links run alongside power lines and other cables. The S/FTP design keeps alien crosstalk at bay, so you can bundle many cables without performance loss. The LSOH jacket means that in the event of fire, the cable emits very little smoke and no corrosive halogen gases, protecting both people and equipment. The stranded conductors allow repeated flexing without breaking, making it ideal for patch panels and equipment connections.

Full specifications

• Category: Cat 6a
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Length: 5 m
• Colour: Yellow
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Connectors: RJ45 male to RJ45 male
• Conductor: Copper, AWG 26/7 stranded
• Wiring standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Fire safety: IEC 60332-1, IEC 61034, IEC 60754
• Operating temperature: -20°C to 60°C
• Jacket diameter: approx. 6.0 mm
• Compatibility: backward compatible with Cat 6, Cat 5e, Cat 5

Final note

Choose this DSIT cable when you need a reliable, fire-safe 10G link that will perform consistently in demanding environments.
