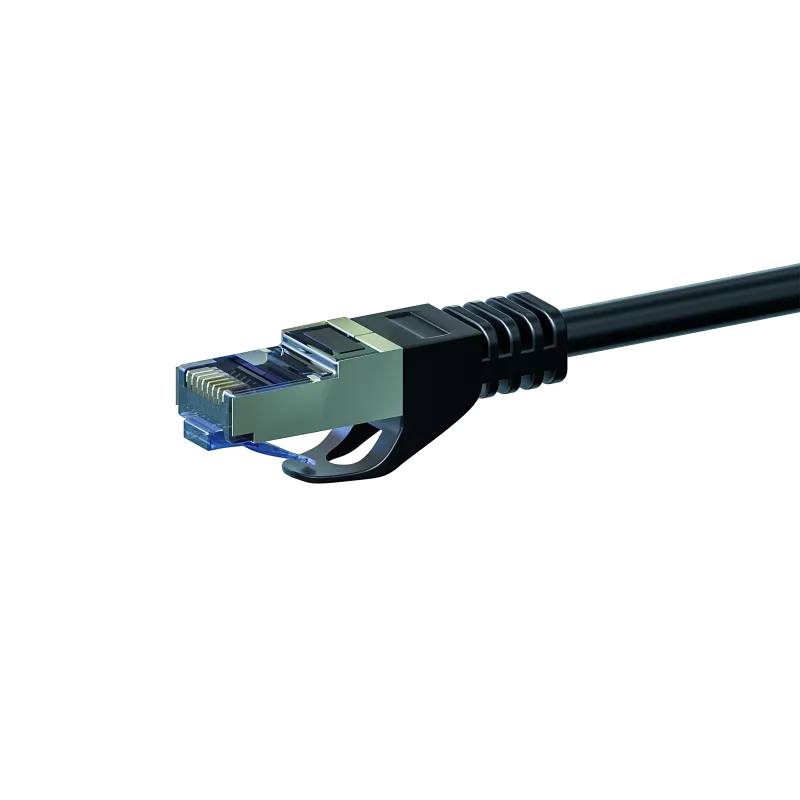

DSIT CAT 6a S/FTP LSOH verkkokaapeli, 1 m, musta

For high-density 10 Gigabit Ethernet links where safety and signal integrity are non-negotiable, this DSIT CAT 6a patch cable pairs S/FTP shielding with an LSOH jacket to keep emissions low and fire risk minimal. The 1-meter length is ideal for tidy rack-to-panel or workstation connections, while the stranded pure-copper conductors remain flexible even in tight bends.

Highlights

• CAT 6a / Class Ea performance up to 500 MHz, supporting 10GBASE-T.
• S/FTP construction: overall braid plus per-pair foil (PiMF) for superior alien crosstalk immunity.
• Low Smoke Zero Halogen (LSOH) jacket – safer for enclosed spaces and compliant with IEC 60332-1, IEC 61034, IEC 60754.
• Gold-plated RJ45 connectors (50 µm) with snagless boots for reliable, repeated mating.
• Stranded AWG 26/7 pure copper conductors for flexibility and long-term durability.

In daily use

Whether you are patching a server to a switch or connecting a high-performance workstation, this cable delivers consistent 10G speeds with minimal packet loss. The black LSOH jacket resists kinking and is easy to route in cable management. Its slim 6.2 mm outer diameter helps maintain airflow in dense racks, and the molded strain relief protects the connector terminations during frequent moves.

Full specifications

• Category: CAT 6a (Class Ea)
• Shielding: S/FTP (Screened/Foiled Twisted Pair, PiMF)
• Length: 1 meter
• Colour: Black
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Connector type: RJ45 (8P8C) male to male
• Connector plating: Gold-plated, 50 µm
• Conductor material: Pure copper (Cu)
• Conductor gauge: AWG 26/7 (stranded)
• Bandwidth: Up to 500 MHz
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Wiring standard: TIA/EIA 568B
• Outer diameter: Approx. 6.2 mm
• Flammability rating: IEC 60332-1, IEC 61034, IEC 60754 compliant
• Operating temperature: -20°C to 60°C
• Compatibility: Backward compatible with Cat 6, Cat 5e, Cat 5
• Certifications: RoHS, CE

Final note

When uptime and safety matter, this DSIT CAT 6a LSOH cable is a dependable choice for modern network infrastructures.
