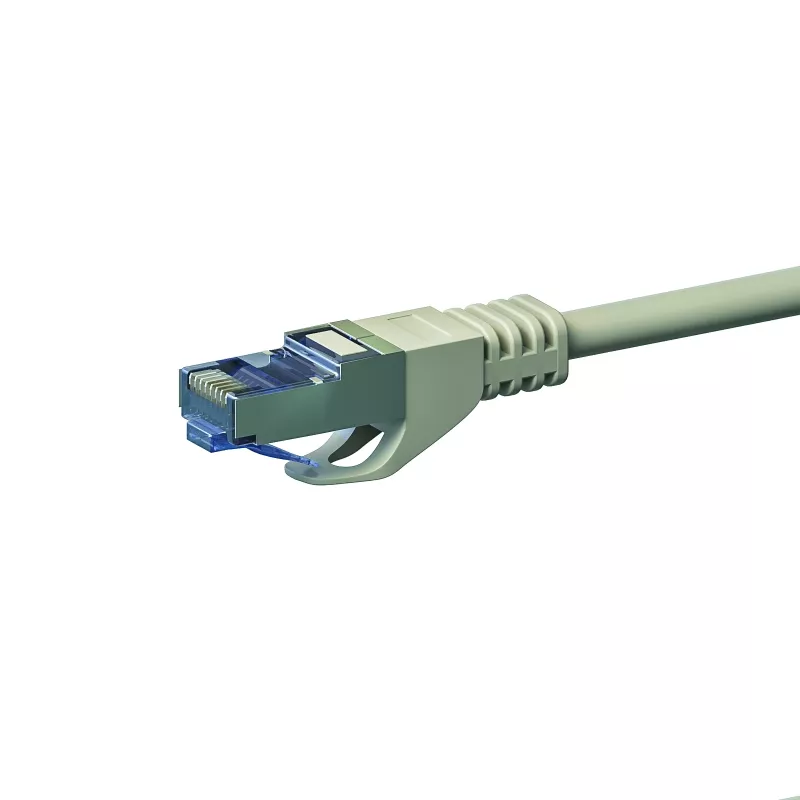

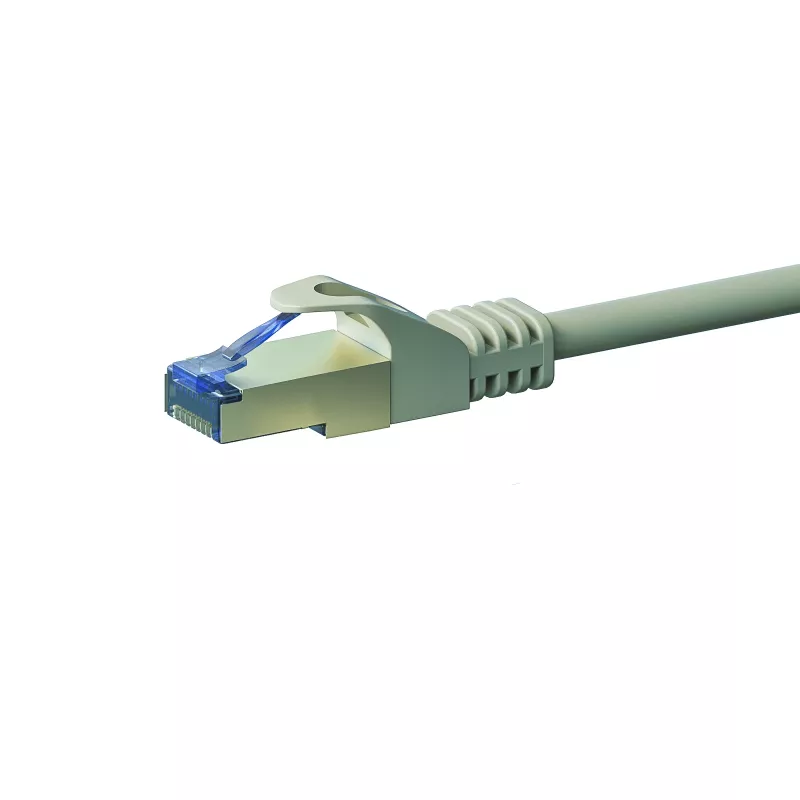

DSIT CAT 6a verkkokaapeli LSOH - S/FTP - 2 m - harmaa (DC-6A1-020)

This DSIT CAT 6a patch cable stands out with its S/FTP shielding and LSOH jacket, delivering 10 Gbps performance in a halogen-free, low-smoke design suitable for dense installations.

Highlights

• Category 6a performance up to 500 MHz
• S/FTP shielding: foil around each pair plus overall braid
• LSOH (Low Smoke Zero Halogen) jacket for improved fire safety
• Gold-plated RJ45 connectors for reliable contacts
• 2-metre length, grey colour

In daily use

Ideal for connecting servers, switches, patch panels, and high-speed workstations in LAN environments. The stranded pure copper conductors (AWG 26/7) provide flexibility for frequent re-routing, while the 100 Ohm impedance ensures stable signal integrity. The cable supports 10GBASE-T Ethernet, making it suitable for demanding applications.

Full specifications

• Cable type: Ethernet Patch Cable
• Category: Cat 6a
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Length: 2 m
• Colour: Grey
• Connector type: RJ45 male to RJ45 male
• Data transfer rate: up to 10 Gbps
• Bandwidth: up to 500 MHz
• Conductor material: Pure copper
• Conductor gauge: AWG 26/7 (stranded)
• Wiring standard: TIA/EIA-568B
• Connector plating: Gold-plated (50 µm)
• Outer diameter: approx. 6.2 mm
• Impedance: 100 Ohm
• Compliance: RoHS, CE

Final note

A dependable high-speed link for professional networks where fire safety and performance matter.
