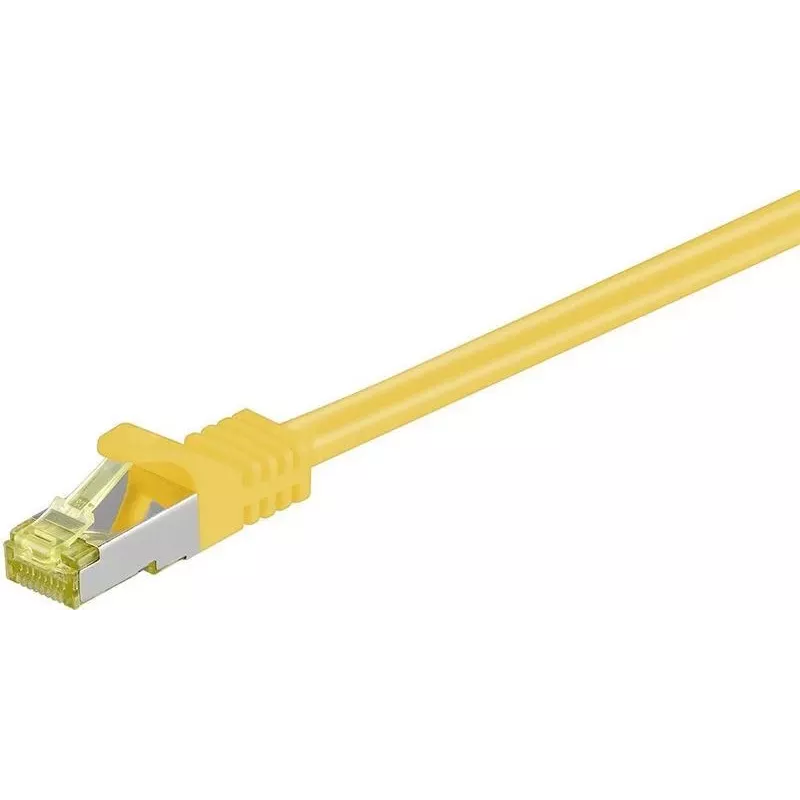

DSIT Cat.7 S/FTP PiMF RJ45 verkkokaapeli, 30 m, keltainen

In a busy data center, a network engineer runs a 30-meter link from a core switch to a high-density server rack. The DSIT Cat.7 S/FTP PiMF cable delivers 10 Gigabit Ethernet with headroom to spare, its yellow jacket making cable tracing effortless among dozens of grey runs.

Key specifications

• Category 7 S/FTP (Screened Foiled Twisted Pair) with PiMF (Pairs in Metal Foil) shielding
• Length: 30 meters
• Colour: Yellow
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Bandwidth: up to 600 MHz
• Data rate: 10 Gbps (10GBASE-T)
• Conductor: 23 AWG stranded bare copper (OFC)
• Jacket: PVC, snagless molded boot
• PoE support: up to PoE++ (IEEE 802.3bt Type 4)
• Compliance: RoHS, CE

Why choose it

This cable is built for high-speed, high-reliability networking. The S/FTP construction with individual pair shielding virtually eliminates alien crosstalk, ensuring stable 10G performance even in dense cable bundles. Gold-plated contacts resist corrosion and maintain signal integrity over thousands of mating cycles. The snagless boot protects the locking tab during installation and removal, while the rugged PVC jacket withstands daily wear in commercial environments.

Ideal use cases

• Data center server-to-switch connections
• 10GBASE-T workstation uplinks in offices
• High-bandwidth video editing or CAD workstations
• PoE++ devices such as PTZ cameras, access points, or digital signage
• Long-distance patch runs in structured cabling systems

Good to know

The cable is backward compatible with Cat.6a, Cat.6, and Cat.5e networks, so it can be used in mixed environments. The stranded conductors provide flexibility for routing around corners and through cable management. The yellow colour is ideal for colour-coding network segments or identifying uplink cables. For best performance, avoid sharp bends and maintain the minimum bend radius of approximately 4 times the cable diameter.
