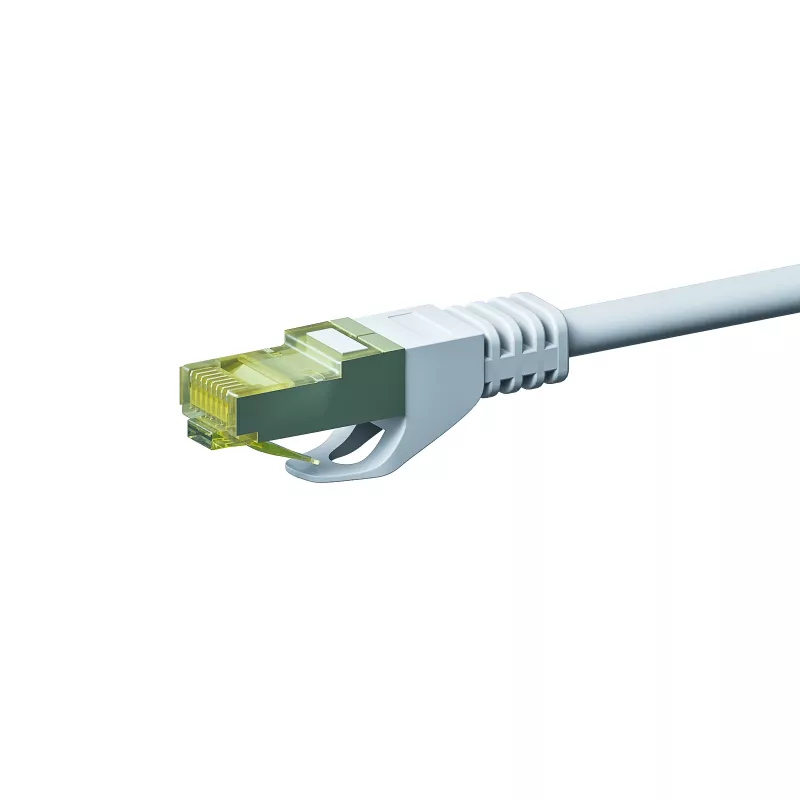

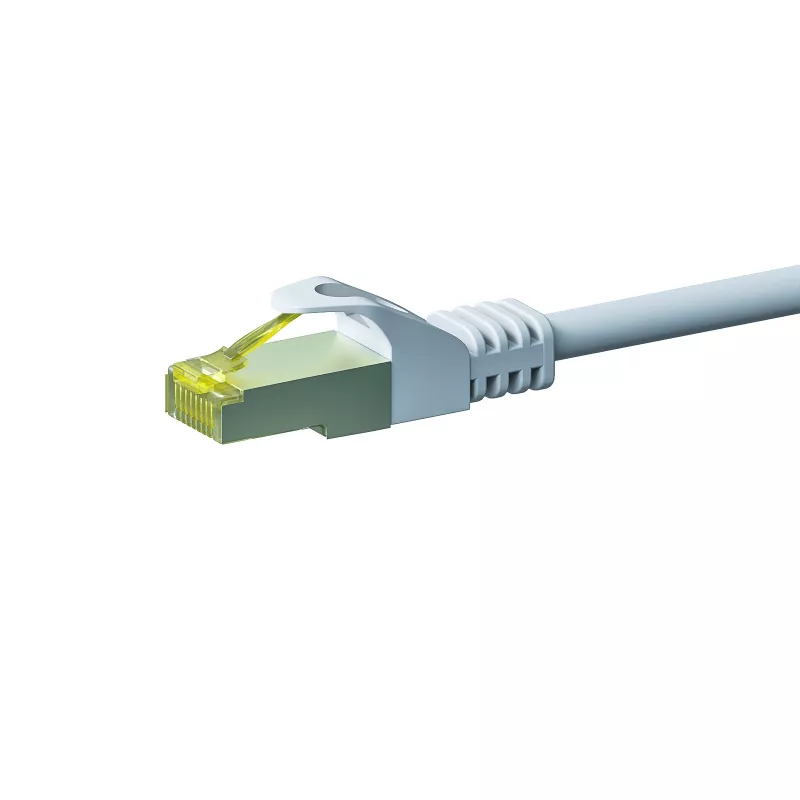

DSIT Cat.7 S/FTP PiMF RJ45 verkkopatch-kaapeli, 0,50 m, valkoinen

Experience a 600 MHz bandwidth and 10 Gigabit Ethernet speed in a compact 0.5-meter link. This DSIT Cat.7 patch cable uses S/FTP shielding with PiMF (pairs in metal foil) to virtually eliminate crosstalk and EMI, making it ideal for high-density server rooms, 10GBASE-T networks, and professional AV installations.

Overview

The DSIT DC-72-005 is a premium Category 7 network patch cable terminated with gold-plated RJ45 connectors. Its S/FTP construction combines an overall braided screen with foil shielding around each twisted pair (PiMF), delivering superior signal integrity across the full 600 MHz spectrum. The white PVC jacket is durable yet flexible, and the snagless boot protects the locking tab during frequent plugging and unplugging.

What stands out

• Cat.7 performance: supports 10GBASE-T Ethernet up to 100 meters (this 0.5m length is ideal for patching).
• Double shielding: S/FTP with PiMF ensures minimal alien crosstalk and maximum noise immunity.
• Gold-plated contacts: resist corrosion and maintain reliable conductivity over thousands of mating cycles.
• Snagless design: molded boot prevents accidental disconnection and protects the connector.
• Backward compatible: works seamlessly with Cat.6a, Cat.6, and Cat.5e equipment.

Technical details

• Cable category: Cat.7 (ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2 compliant)
• Shielding: S/FTP (overall braid + foil per pair, PiMF)
• Conductor: stranded copper, 26 AWG (typical for patch cables)
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Wiring: TIA/EIA 568B straight-through
• Jacket: PVC, white
• Length: 0.50 m
• Bandwidth: up to 600 MHz
• Data rate: up to 10 Gbps
• Operating temperature: -20°C to 75°C (typical for PVC jacketed cables)

Our verdict

For short, high-speed connections where interference is a concern, this DSIT Cat.7 cable is a reliable choice. Its robust shielding and quality terminations ensure consistent performance in demanding network environments.
