DSIT Cat6 STP RJ45 ulkoliitin IP68, liitin-liitin, gigabit, PoE, musta

With an IP68 rating that shrugs off dust, rain, snow, and even temporary submersion, this DSIT Cat6 STP RJ45 outdoor coupler keeps your network links alive in the harshest conditions. Gold-plated contacts, full shielding continuity, and support for PoE up to UPoE make this female-to-female inline coupler the reliable link your outdoor PoE cameras, access points, and industrial sensors demand.

Overview

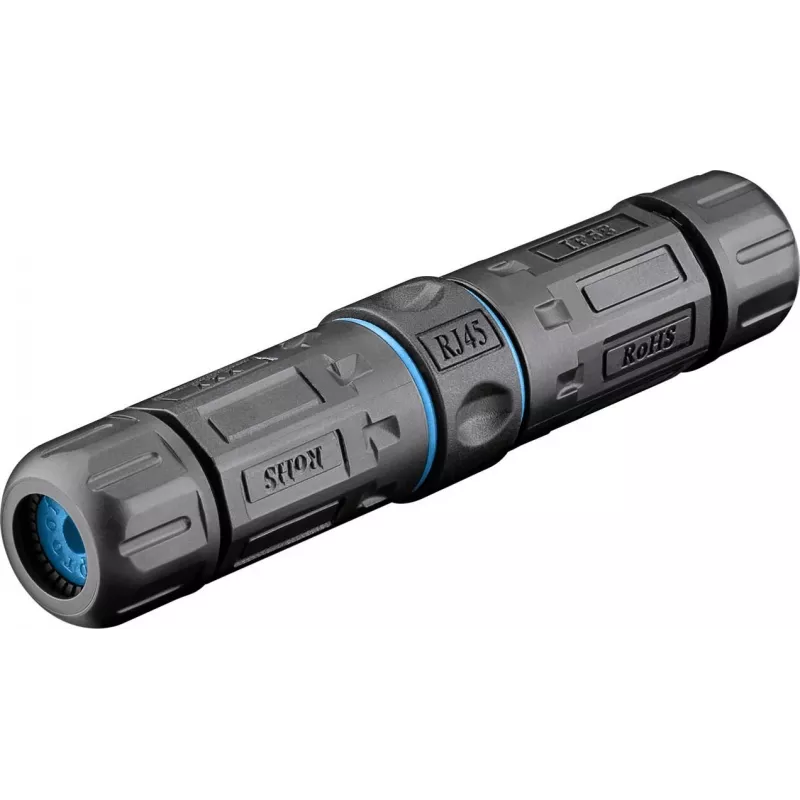

The DSIT DS-CP-CAT6-OUT is a shielded RJ45 female-to-female coupler engineered for harsh environments. Its UV-resistant PC/ABS housing and IP68 sealing protect the connection from moisture and particles, while 50µm gold-plated contacts maintain signal integrity. Supporting up to 1000 Mbps and PoE (including PoE+ and UPoE), it handles both data and power over a single link. The coupler accepts cable diameters from 4mm to 8mm and operates from -20°C to +80°C, making it suitable for outdoor, industrial, and demanding indoor applications.

What stands out

• IP68 dustproof and waterproof rating for outdoor and harsh environments
• Cat6 STP shielding preserves signal quality and reduces crosstalk
• Supports Gigabit Ethernet and PoE/PoE+/UPoE for data and power
• Gold-plated contacts (50µm) ensure corrosion resistance and durability
• UV-resistant housing withstands sunlight and extreme temperatures
• Tool-free in-line connection for quick field installation

Technical details

• Connector type: RJ45 (8P8C) female to female
• Cable category: Cat6
• Shielding: STP (Shielded Twisted Pair)
• IP rating: IP68 (dustproof, waterproof)
• Data transfer rate: up to 1000 Mbps (Gigabit Ethernet)
• PoE support: PoE, PoE+, UPoE
• Housing material: UV-resistant PC/ABS plastic
• Contact plating: gold-plated, 50µm
• Operating temperature: -20°C to +80°C
• Cable diameter compatibility: 4mm - 8mm
• Standards compliance: TIA/EIA-568-C.2, ISO/IEC 11801, RoHS, CE
• Insulation resistance: >500 MΩ
• Dielectric strength: 1000V AC RMS, 60Hz, 1 min
• Durability: 750 mating cycles

Our verdict

For outdoor network extensions that demand reliability, this coupler delivers with its robust IP68 sealing, full Cat6 shielding, and broad PoE compatibility. A solid choice for any harsh-environment deployment.
