DSIT DANICOM CAT5E FTP 305 m joustava PVC (Fca) verkkokaapeli

Delivering 1000 Mbps across a full 305-meter reel, this CAT5e FTP cable maintains signal integrity even in electrically noisy environments thanks to an overall foil shield guarding each twisted pair. Solid 24 AWG copper conductors and a flexible PVC jacket make it a reliable backbone for large-scale indoor installations.

Overview

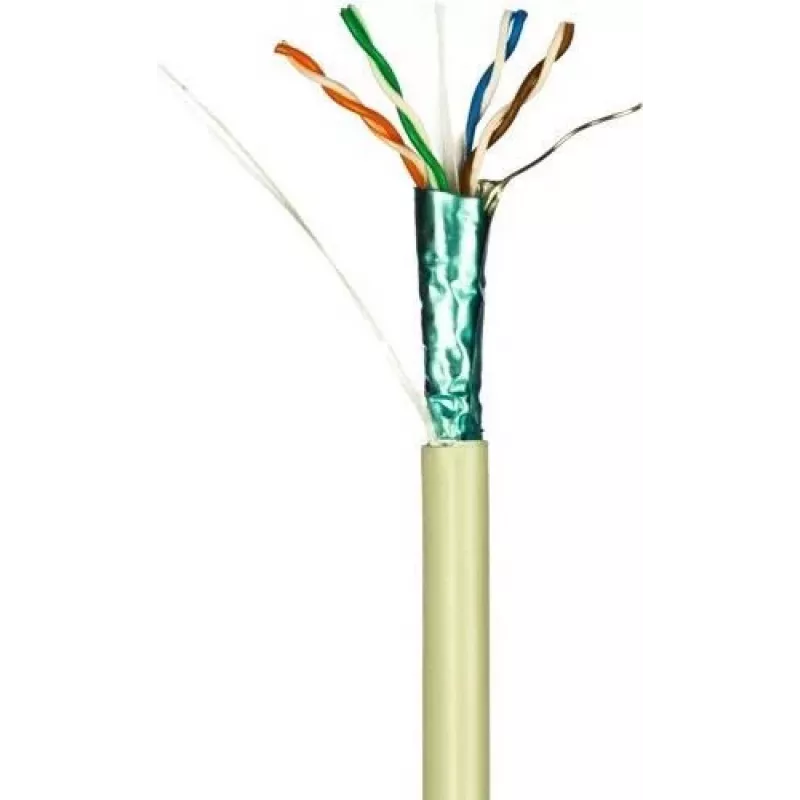

The DSIT DANICOM CAT5E FTP cable is a professional-grade networking solution for indoor installations. With a length of 305 meters, it suits large-scale projects such as office buildings, data centers, and industrial facilities. The cable features four twisted pairs of 24 AWG solid copper conductors, each pair wrapped in an overall foil shield, significantly reducing crosstalk and external noise. The durable yet flexible PVC outer jacket allows easy routing through conduits and cable trays. Compliant with TIA/EIA-568-C.2 standards, this cable guarantees reliable performance for 1000BASE-T Gigabit Ethernet and other high-speed applications.

What stands out

• FTP shielding: Overall foil shield protects against EMI and crosstalk, ensuring stable Gigabit connections.
• Solid copper conductors: 24 AWG pure copper provides excellent conductivity and supports Power over Ethernet (PoE) applications.
• Flexible PVC jacket: Easy to install and resistant to common environmental factors.

Technical details

• Cable Category: CAT5e
• Shielding Type: FTP (Foiled Twisted Pair)
• Cable Length: 305 meters (1000 ft)
• Jacket Material: PVC (Polyvinyl Chloride)
• CPR Fire Classification: Fca
• Conductor Material: Solid Copper
• Number of Conductors: 8 (4 twisted pairs)
• Conductor Gauge: 24 AWG
• Max Data Rate: 1000 Mbps (Gigabit Ethernet)
• Max Bandwidth: 100 MHz
• Impedance: 100 Ohm
• Application Environment: Indoor
• Cable Structure: U/FTP (Unshielded Twisted Pair with overall Foil Shield)

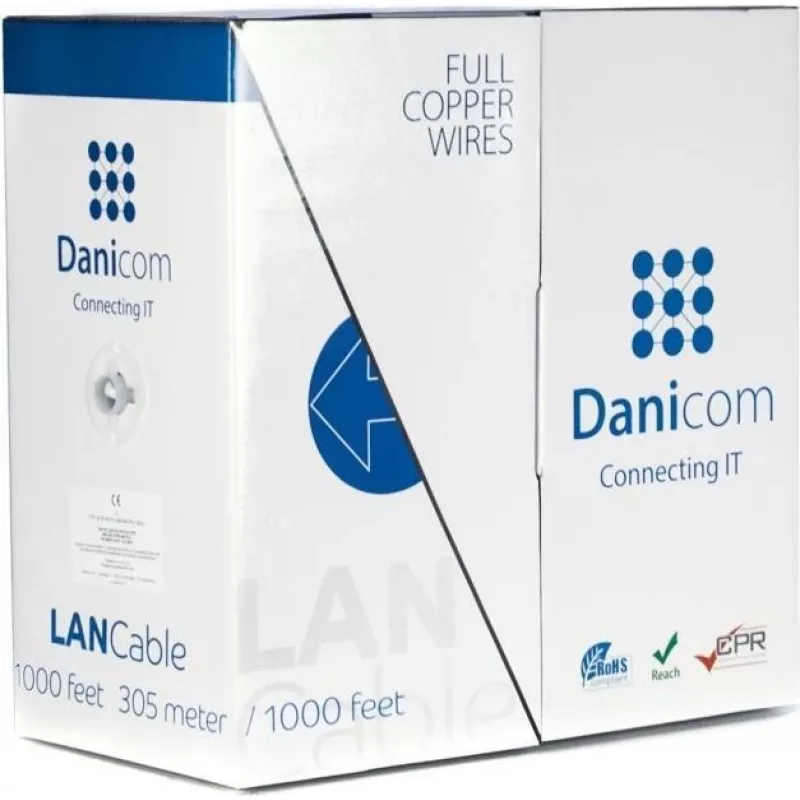

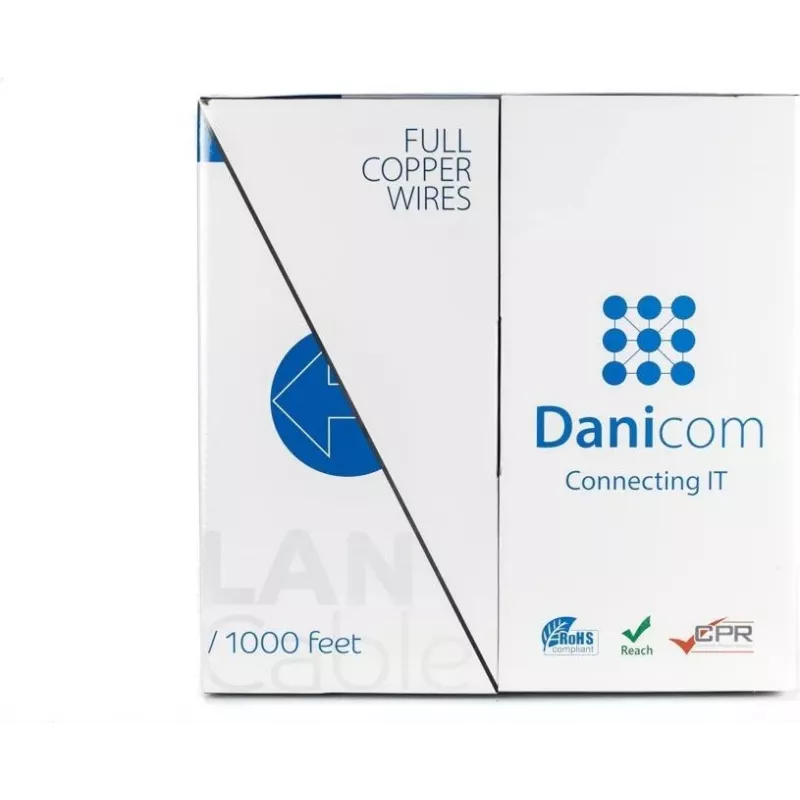

• Packaging: Reel-in-box / Bulk Drum
• Standard Compliance: TIA/EIA-568-C.2
• RoHS Compliance: Yes
• Outer Diameter (Approx.): 5.5 mm
• Operating Temperature: -20°C to +60°C
• Insulation Material: HDPE (High-Density Polyethylene)

Our verdict

For installers and IT professionals who need a dependable, high-performance bulk cable, the DSIT DANICOM CAT5E FTP is an excellent choice. Its foil shielding and solid copper construction ensure stable Gigabit speeds even in challenging environments, while the flexible PVC jacket simplifies installation. This reel-in-box cable is a cost-effective backbone for any structured cabling project.
