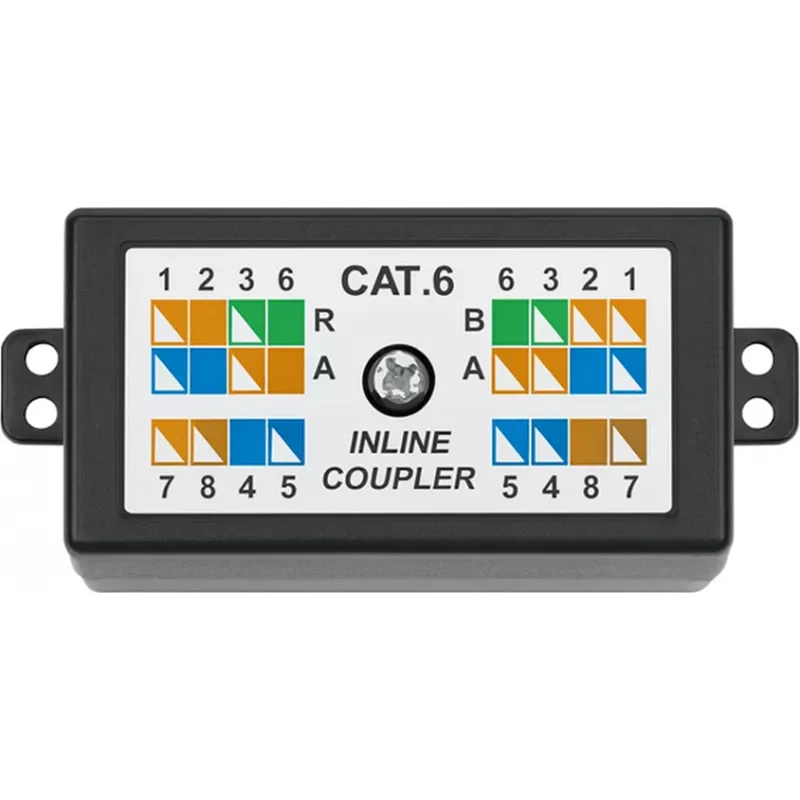

DSIT DANICOM CAT6 internet-liitäntärasia (DS-CAT6-JB) – 10G PoE++ LSA-liitin, valkoinen

This CAT6 junction box provides a reliable, tool-free way to join, extend, or repair Category 6 Ethernet cables with full 10 Gigabit performance and PoE++ support. Its punch-down IDC terminals accept solid or stranded conductors and follow TIA/EIA 568A/B wiring, making it ideal for structured cabling, retrofits, and field repairs.

Advantages

Surface-mount ABS housing in white blends into any environment while protecting connections from dust and accidental contact. Gold-plated phosphor bronze contacts ensure low resistance and long-term corrosion resistance. Two clearly labeled ports allow quick in-line splicing without the need for RJ45 plugs or crimping tools.

Suitable for

• Extending CAT6 cable runs in offices, homes, and industrial settings
• Repairing damaged Ethernet cables without replacing the entire length
• Creating permanent, secure joints in structured cabling systems
• Connecting PoE devices such as IP cameras, access points, and VoIP phones
• Field installations where a compact, surface-mount junction is required

Key specifications

• Compatible with CAT6 (Category 6) UTP cables
• Supports data rates up to 10 Gigabit Ethernet (10GBASE-T)
• Frequency bandwidth: 250 MHz
• Wiring standard: TIA/EIA 568A/B
• Connector type: IDC punch-down block (110 or Krone tool)
• Number of ports: 2 (input/output)
• Housing material: ABS plastic, white
• Mounting: surface mount
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Contact material: phosphor bronze with gold plating
• Operating temperature: -10°C to 60°C
• Humidity range: 10% to 90% RH (non-condensing)

Recommendations

For best results, use a quality 110 or Krone punch-down tool and maintain proper pair twists up to the IDC terminals. Verify wiring with a cable tester after termination. When joining cables, ensure both ends follow the same wiring scheme (568A or 568B).
