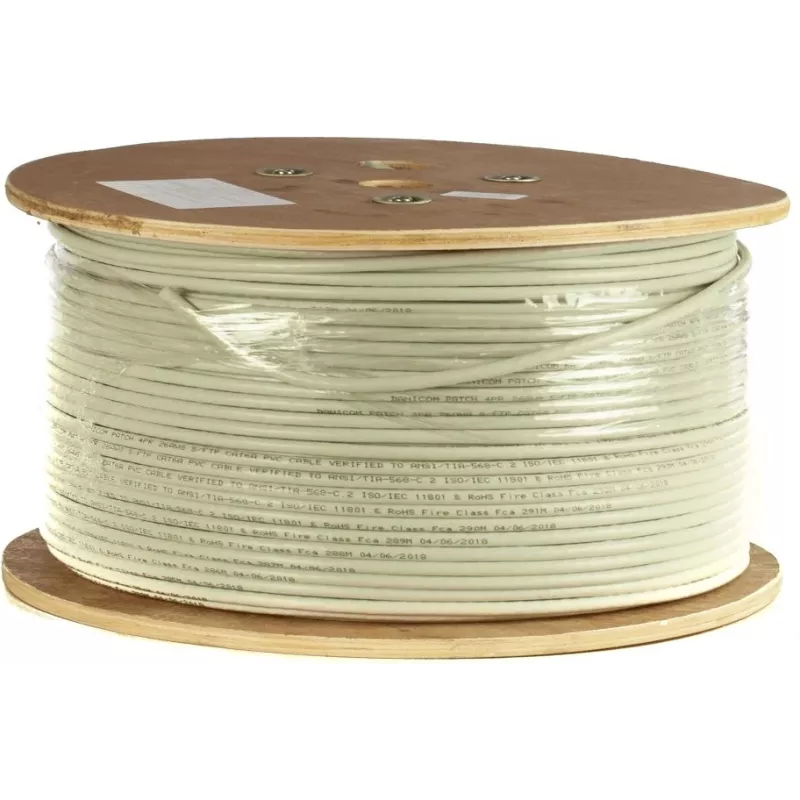

DSIT DANICOM CAT6 UTP 500 m massiivisydänkaapeli - LSZH (B2ca) harmaa

Running Gigabit Ethernet over long distances indoors demands a cable that balances performance, safety, and ease of installation. The DSIT DANICOM CAT6 UTP 500m Solid Core Cable answers that need with a 500-meter reel of unshielded twisted pair cabling built for permanent links in structured cabling systems. Its solid pure copper conductors and LSZH jacket ensure reliable high-speed data transmission up to 250 MHz while meeting stringent fire safety standards.

Who is it for

This cable is intended for professional network installers, IT technicians, and system integrators who deploy horizontal cabling in office buildings, data centers, schools, and commercial facilities. It suits projects that require a Euroclass B2ca fire rating for low smoke and low toxic emissions in public or high-occupancy areas.

Main features

• Category 6 performance with bandwidth up to 250 MHz, supporting 10/100/1000BASE-T and 10GBASE-T up to 55 meters.
• Unshielded twisted pair (UTP) construction with 4 pairs of 23 AWG solid bare copper conductors for stable, long-term connections.
• LSZH (Low Smoke Zero Halogen) jacket with Euroclass B2ca-s1a,d1,a1 fire rating, reducing smoke and toxic gas in case of fire.
• 500-meter pull box for convenient installation and reduced waste on large projects.
• Grey jacket for easy identification and professional appearance.

Specifications

• Cable Category: CAT6
• Cable Type: UTP (Unshielded Twisted Pair)
• Conductor Type: Solid Core
• Conductor Material: Pure Copper
• Conductor Gauge: AWG 23
• Number of Pairs: 4
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Fire Rating (Euroclass): B2ca-s1a,d1,a1
• Length: 500 meters
• Color: Grey
• Bandwidth: Up to 250 MHz
• Supported Data Rate: 10/100/1000BASE-T Gigabit Ethernet, 10GBASE-T (up to 55m)
• Outer Diameter: Approx. 6.2 mm
• Standards Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Application: Structured Cabling, Indoor Installation
• Operating Temperature: -20°C to +60°C
• Installation Temperature: 0°C to +50°C
• Impedance: 100 Ohm ± 15%

Tips

When installing, avoid exceeding the minimum bend radius to maintain performance. Use proper cable management and labeling for easy identification. Store the cable in a dry, cool place away from direct sunlight.
