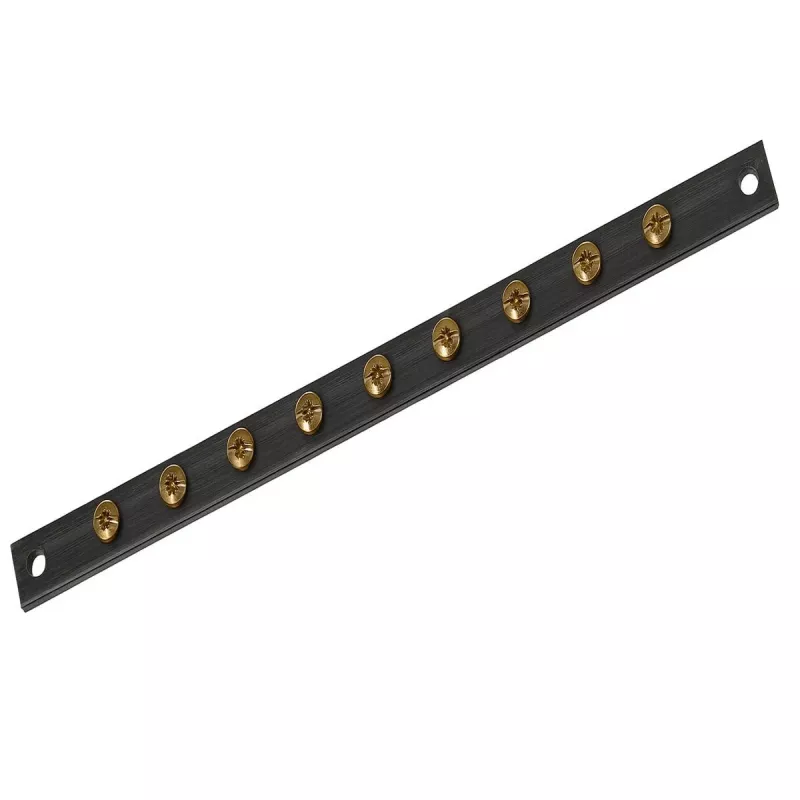

DSIT DS-Earth 19 tuuman 10-porttinen räkin maadoituskisko

For IT professionals who demand reliable equipotential bonding in dense rack environments, the DSIT DS-Earth grounding bar stands apart with its solid copper conductor and ten M5 screw terminals—a combination that ensures low-resistance paths for fault currents and static discharge. Unlike generic steel rails that sacrifice conductivity for cost, this 1U unit keeps every connection clean, secure, and instantly accessible across network, server, and industrial cabinets.

Highlights

• 19-inch rack-mountable 1U earthing bar with 10 M5 screw terminals
• High-purity copper bar delivers excellent electrical conductivity and corrosion resistance
• Robust steel mounting brackets with black finish, supplied with screws and cage nuts
• Accepts cable cross-sections up to 16 mm², covering common grounding conductors
• Compact 60 mm installation depth leaves ample room for cable routing behind the rail

In daily use

Mount the DS-Earth horizontally in any standard 19-inch rack using the included hardware. Each of the ten M5 terminals provides a dedicated point for grounding patch panels, switches, servers, or cable shields. The copper bar's high conductivity minimizes voltage differences between equipment, while its natural oxide layer maintains performance over years of service. The black steel brackets blend with most rack interiors, and the low-profile design keeps the front of the rack unobstructed.

Full specifications

• Product type: Earthing bar / grounding rail
• Rack standard: 19 inch
• Height unit: 1U
• Number of grounding connections: 10
• Connection type: M5 screw terminals
• Grounding bar material: Copper
• Mounting bracket material: Steel
• Mounting type: Rack mountable
• Colour: Black brackets, copper bar
• Maximum cable cross-section: 16 mm²
• Application area: Network, server, and IT cabinets
• Included mounting hardware: Yes (screws and cage nuts)
• Corrosion resistance: High (copper bar)
• Installation depth: 60 mm
• Electrical conductivity: High

Final note

When grounding integrity is non-negotiable, the DSIT DS-Earth provides a professional-grade solution that installs in minutes and protects your entire rack infrastructure.
