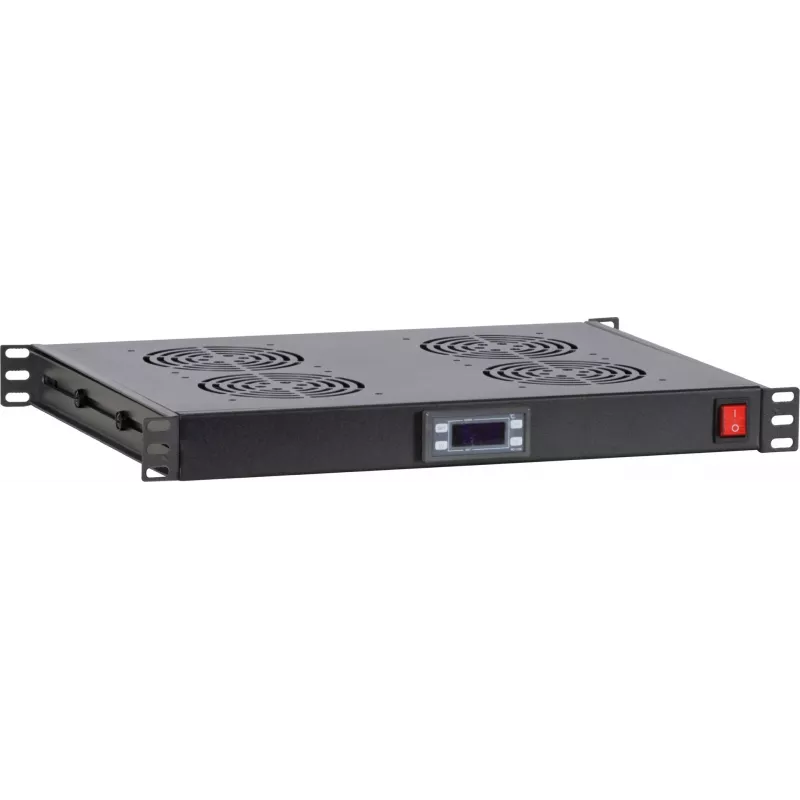

DS-IT 19" tuuletinyksikkö 4 tuulettimella ja termostaatilla (DS-FT1U4TM)

Rack-mounted equipment often suffers from heat buildup, which can lead to performance degradation and premature failure. This 19-inch fan unit actively addresses that problem by moving hot air out of the rack, keeping temperatures within safe limits for servers, switches, and other critical hardware.

Who is it for

IT administrators, network engineers, and system integrators responsible for maintaining reliable operation of rack-mounted equipment in data centers, server rooms, or network closets. It is suitable for any standard 19-inch rack where active cooling is required.

Main features

• Four fans deliver a combined airflow of 400 m³/h for effective heat extraction.
• Integrated thermostat allows automatic fan activation based on temperature, with an adjustment range of 0 to 60 °C.
• Occupies only 1U of rack space, preserving valuable vertical room for other equipment.
• Operates on standard 230V AC power, with a consumption of 40 W.
• Constructed from sturdy sheet steel with a black (RAL 9005) finish for durability and a professional look.

Specifications

• Rack size: 19 inch
• Rack units: 1U
• Number of fans: 4
• Integrated thermostat: Yes
• Thermostat adjustment range: 0 - 60 °C
• Total airflow: 400 m³/h
• Max. noise level: 47 dB(A)
• Power supply: 230V AC, 50/60Hz
• Power consumption: 40 W
• Power connector: IEC C14
• Power cable length: 2 m
• Material: Sheet steel
• Color: Black (RAL 9005)
• Mounting type: Rack mount
• Operating temperature: 0 - 50 °C

Tips

Position the fan unit near the top of the rack to exhaust hot air, as heat rises. Ensure the thermostat is set appropriately for your environment to balance cooling performance and noise. Regularly check and clean the fans to maintain optimal airflow.
