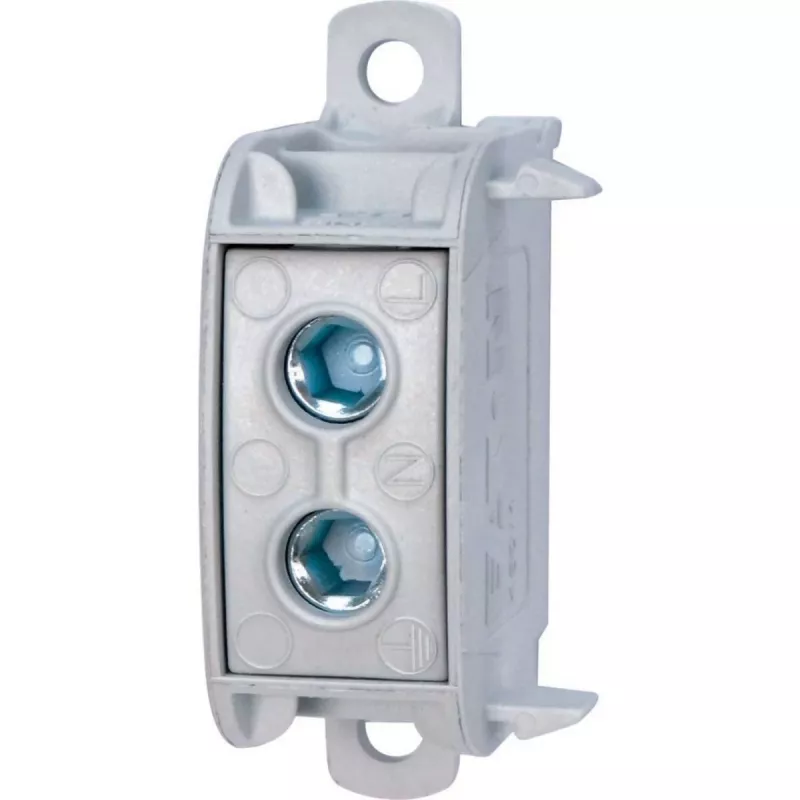

Eaton 098573 PE/N/PEN-liitinlohko 100A yksittäisliitin K50/1

Rated for 100 A and 690 V AC, this PE/N/PEN terminal block handles main conductors from 10 to 70 mm² (rigid) or 10 to 50 mm² (flexible), plus six auxiliary connections up to 25 mm² rigid.

Overview

The Eaton K50/1 (model 098573) is a single-clamp PE/N/PEN terminal block designed for reliable protective earth, neutral, and combined conductor connections in electrical distribution systems. It mounts on standard 35 mm DIN rail or via screw fixing, with IP20 protection and a blue polyamide housing.

What stands out

• High current capacity: 100 A rated current.
• Wide conductor range: main 10–70 mm² rigid, 10–50 mm² flexible; auxiliary 1.5–25 mm² rigid, 1.5–16 mm² flexible.
• Six auxiliary screw terminals for additional connections.
• Durable nickel-plated brass conductor material.
• Pollution degree 3 for harsh environments.

Technical details

• Rated insulation voltage: 690 V AC.
• Connection type: screw terminal.
• Mounting: DIN rail TS35 or screw mountable.
• Degree of protection: IP20.
• Housing material: polyamide (PA).
• Colour: blue.

Our verdict

A robust and versatile terminal block for professional electrical installations requiring high current and multiple auxiliary connections.
